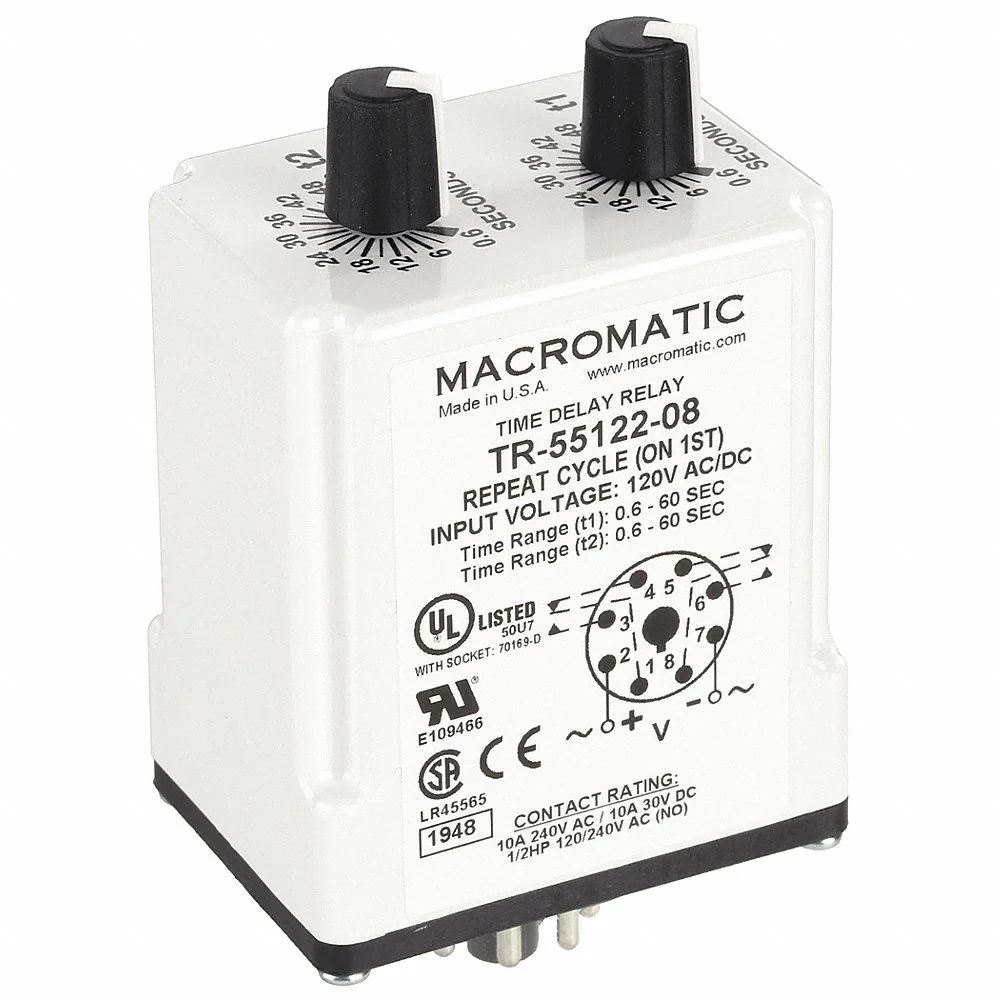

MACROMATIC TR-55122-08 Timer Relay, 60 Sec, 8 Pin, 10A, 120V AC/DC

Item: AF7YTYModel: TR-55122-08Cross Ref: 23NV15

7 In Stock

Time Delay Range

Input Voltage

Ships within 2 days via

~~€58.64~~

5.00% off

€55.71 /unit

Add To Cart

Request a Quote

Payment

Product Specifications:

Item	Time Delay Relay
Ac Voltage	120V AC
Adjustment Interface	Analog
Adjustment Method	Potentiometer
Adjustment Operator	Knob
Amps	10A
Base Shape	Octal
Base Type	Octal
Base Type-plug In Relay	Octal
Body Depth	2.9"
Body Height	1.7"
Body Width	2.3"
Coil Rating	2VA
Coil Rating	2 VA
Coil Voltage	120V AC/DC
Compatible With Grainger Part No	1EGP3, 1EGP5, 5X852
Configuration/contact Rating	DPDT & SPDT. 10A @ 240V AC/30V DC, 1/2HP @ 120/240V AC (N.O.), 1/3HP @ 120/240V AC (N.C.), B300 & R300
Contact Amps Rating	10A
Contact Form	DPDT
Contact Material	Silver Nickel
Contact Rating (a)	10A
Contact Rating (ac)	10A @ 240V
Contact Rating (dc)	10A @ 30V
Contacts	DPDT
Dc Voltage	120V DC
Delay Function	Cycle On
Electrical Connection	Socket
Electrical Connection Type	Pin
Electrical Operating Durability	100000
Environmental Protection	Enclosed
Environmental Protection Combo	Enclosed/IP20
Eu Rohs Indicator	Yes
Flat Pin Width	Not Applicable
Frequency	50/60 Hz
Function	Repeat Cycle (On First)
Function - Timing Relay	Repeat Cycle (On First)
Gross Weight	0 lbs.
Input Voltage	120V AC/DC
Ip Rating	IP20
Life	Mechanical 2000000 Operations
Load	2 VA
Max. Operating Temp.	122°F
Max. Time	60 sec.
Max. Time Setting	60 sec.
Max. Time Setting-timer	1 min.
Mechanical Operating Durability	10000000
Min. Operating Temp.	-18°F
Min. Time Setting	0.06 sec. , 0.6 sec.
Min. Time Setting-timer	0.6 sec.
Mount	Plug-In
Mounting	Plug In
Mounting Style	Plug-In
Mounting Type	Socket
Mounting-relay	Plug In
Multi-function	No
No. Of Delay Functions	1
No. Of Pins	8
No. Of Pins-relay	8
No. Of Pins/terminals	8
Operating Functions	7
Operating Time Accuracy	+0% -50% (Minimum Setting (Adjustable)), +2% 50Ms (Fixed), +5% -0% (Maximum Setting (Adjustable))
Overall Depth	3 1/2"
Overall Height	3.1"
Pins	8
Power Consumption	2 VA
Relay Mounting Style	Socket
Reset Method	Time Limit Reset
Reset Time	0.1 sec.
Resistive Contact Amp Rating	10A
Resistive Contact Amps Rating	10A
Sealing	Enclosed
Socket Code	A
Status Indicator	No
Status Indicator	None
Termination	8 Pin
Time Range Adjustment	Onboard
Timing Adjustment	Analog
Timing Range 2	0.6 sec. to 60 sec.
Timing Relay Functionality	Repeat Cycle

Shipping Info:

Ship weight (kg)	0.11
Ship height (cm)	4.32
Ship length (cm)	7.37
Ship width (cm)	5.84
HS code	8536490075
Country of Origin	US

Product Variants

Model	Ac Voltage	Dc Voltage	Coil Voltage	Input Voltage	Max. Time	Timer	No. Of Pins	Coil Rating	Price
TR-50222-04	120V AC	120V DC	120V AC	120V AC/DC	5 sec.	-	8	2 VA	€46.19
TR-50222-10	120V AC	120V DC	120V AC	120V AC/DC	180 sec.	-	8	2 VA	€51.98
TR-50222-12	120V AC	120V DC	120V AC	120V AC/DC	300 sec.	-	8	2 VA	€46.93
TR-50222	-	-	120V AC	120V AC/DC	-	-	-	2 VA	€46.86
TR-50522-05	120V AC	120V DC	120V AC	120V AC/DC	10 sec.	-	8	2 VA	€48.42
TR-50522-10	120V AC	120V DC	120V AC	-	180 sec.	-	8	2 VA	€47.08
TR-50522-12	120V AC	120V DC	120V AC	120V AC/DC	300 sec.	-	8	2 VA	€46.23
