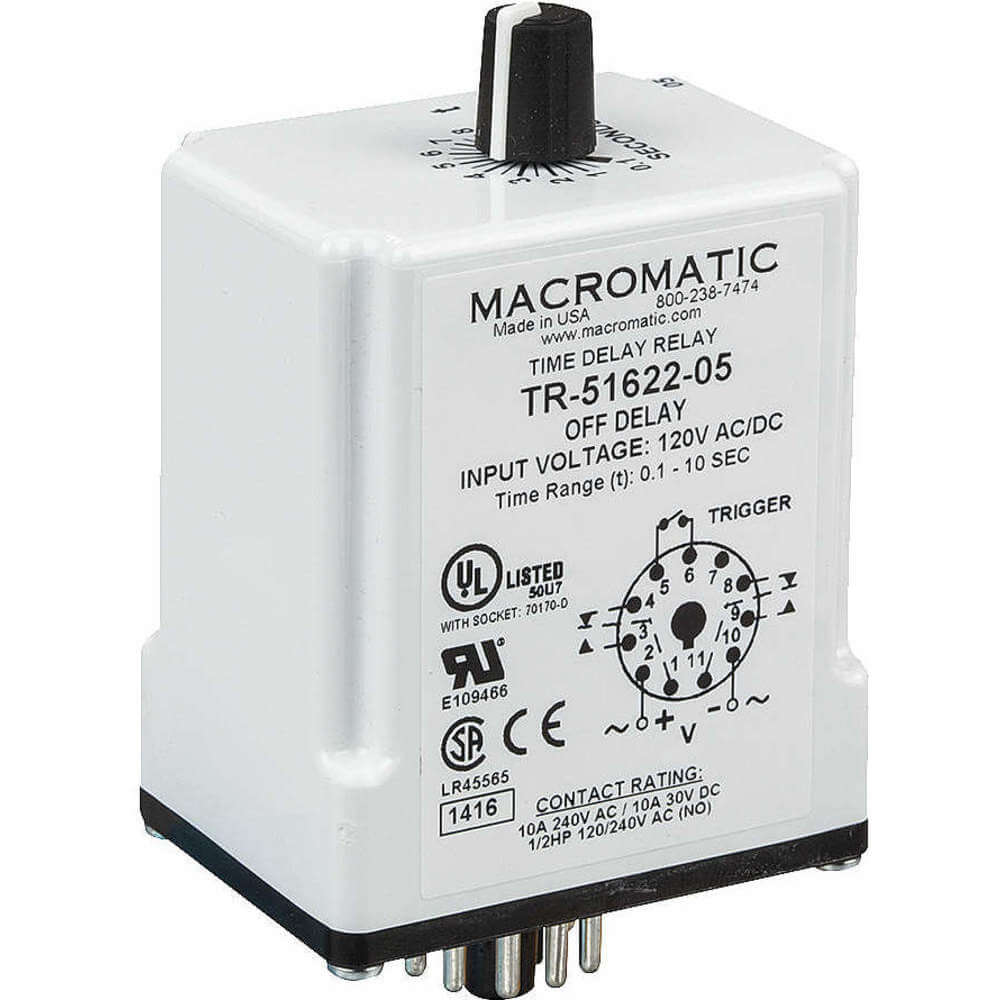

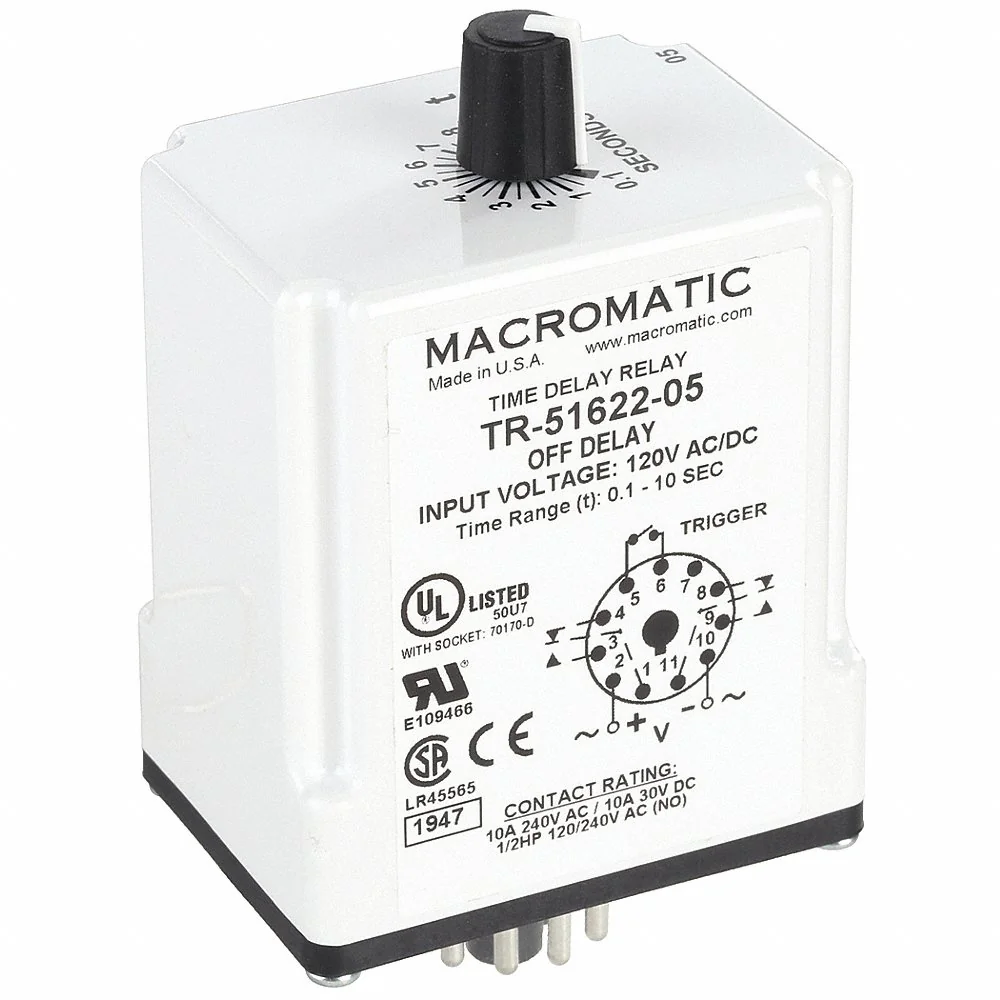

MACROMATIC TR-51622-05 Timer Relay, 10 Sec, 11 Pin, 10A, 120V AC/DC

Item: AF7YTNModel: TR-51622-05Cross Ref: 23NV01

7 In Stock

Ships within 2 days via

~~€52.00~~

10.00% off

€46.81 /unit

Add To Cart

Request a Quote

Payment

Product Specifications:

Item	Time Delay Relay
Adjustment Interface	Analog
Adjustment Method	Potentiometer
Amps Rating	10A
Base Shape	Octal
Base Type	Octal
Base Type - Plug In Relay	Octal
Body Depth	2.9"
Body Height	1.7"
Body Width	2.3"
Coil Rating	2 VA
Coil Rating	2VA
Coil Volts	120V AC/DC
Compatible With Grainger Part Number	1EGP2, 1EGP4, 6X156
Contact Amp Rating	10A
Contact Form	DPDT
Contact Material	Silver Nickel
Contact Rating (ac)	10A @ 240V
Contact Rating (dc)	10A @ 30V
Current Rating	10A
Delay Function	Off Delay
Delay Function Type	Off Delay
Electrical Connection	Socket
Electrical Connection Type	Pin
Electrical Operating Durability	100000
Environmental Protection	Enclosed
Flat Pin Width	Not Applicable
Frequency	50/60 Hz
Function	Off Delay
Input Voltage	120V AC/DC
Ip Rating	IP20
Load	2 VA
Max. Time Setting	10 sec.
Max. Time Setting - Timer	10 sec.
Maximum Operating Temperature	122°F
Mechanical Operating Durability	10000000
Min. Time Setting	0.1 sec.
Min. Time Setting - Timer	0.1 sec.
Minimum Operating Temperature	-18°F
Minimum Time Setting	0.1 sec.
Mounting	Plug In
Mounting - Relay	Plug In
No. Of Pins	11
No. Of Pins - Relay	11
Number Of Delay Functions	1
Number Of Pins	11
Number Of Pins/terminals	11
Operating Functions	2
Operating Time Accuracy	+2% 50Ms
Overall Depth	3 1/2"
Overall Height	3.1"
Pins	11
Power Consumption	2 VA
Relay Mounting Style	Socket
Reset Method	Time Limit Reset
Reset Time	0.1 sec.
Resistive Contact Amp Rating	10A
Sealing	Enclosed
Socket Code	B
Status Indicator	No
Status Indicator	None
Timing Adjustment	Analog
Timing Relay Functionality	Off Delay

Shipping Info:

Ship weight (kg)	0.11
Ship height (cm)	4.32
Ship length (cm)	7.37
Ship width (cm)	5.84
HS code	8536490075
Country of Origin	US

Product Variants

Model	Max. Time Setting	Min. Time Setting	Socket Code	Delay Function	Input Voltage	Number Of Pins	Adjustment Method	Coil Rating	Price
TR-50222-04	5 sec.	0.05 sec.	A	On Delay	120V AC/DC	8	Potentiometer	2 VA	€46.19
TR-50222-10	180 sec.	1.8 sec.	A	On Delay	120V AC/DC	8	Potentiometer	2 VA	€51.98
TR-50222-12	5 min.	3 sec.	A	On Delay	120V AC/DC	8	Potentiometer	2 VA	€46.93
TR-50222	15 min.	9 sec.	A	On Delay	120V AC/DC	-	Potentiometer	2 VA	€46.86
TR-50522-05	10 sec.	0.1 sec.	A	Interval On	120V AC/DC	8	Potentiometer	2 VA	€48.42
TR-50522-10	180 sec.	1.8 sec.	A	-	-	8	Potentiometer	2 VA	€47.08
TR-50522-12	5 min.	3 sec.	A	Interval On	120V AC/DC	8	Potentiometer	2 VA	€46.23
