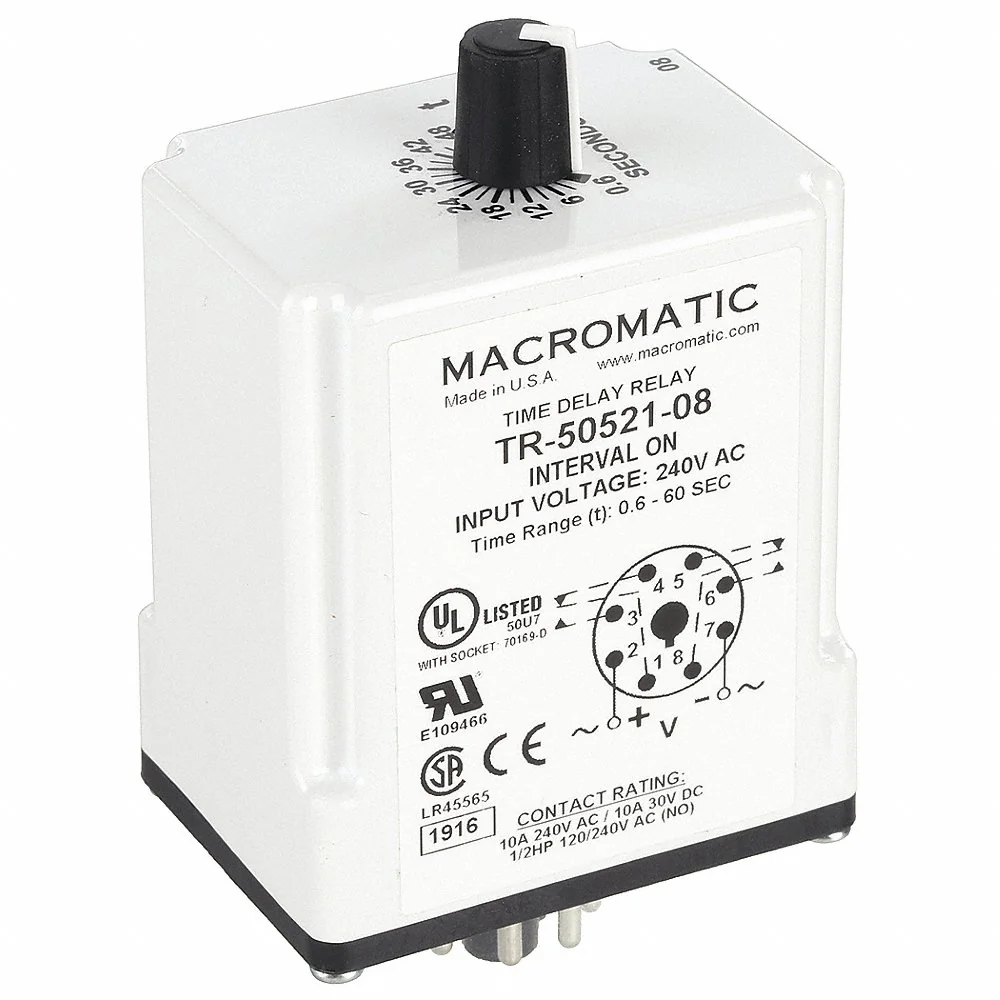

MACROMATIC TR-50521-08 Time Relay, Interval On, 0.6 Sec, 240VAC
Item: AG3UEQModel: TR-50521-08Cross Ref: 33VC08
7 In Stock
Ships within 2 days via
10.00% off
€44.72 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Time Delay Relay |
| Adjustment Interface | Analog |
| Adjustment Method | Potentiometer |
| Amps Rating | 10A |
| Base Shape | Octal |
| Base Type | Octal |
| Base Type - Plug In Relay | Octal |
| Body Depth | 1.7" , 2.9" |
| Body Height | 1.7" , 2.9" |
| Body Width | 2 2/5" , 2.3" |
| Coil Rating | 2 VA |
| Coil Rating | 2VA |
| Coil Volts | 240V AC |
| Contact Amp Rating | 10A |
| Contact Form | DPDT |
| Contact Material | Silver Nickel |
| Delay Function Type | Interval |
| Electrical Connection | Socket |
| Electrical Connection Type | Pin |
| Environmental Protection | Enclosed |
| Flat Pin Width | Not Applicable |
| Frequency | 50/60 Hz |
| Function | Interval On |
| Load | 2 VA |
| Max. Time Setting | 3 min. |
| Max. Time Setting - Timer | 1 min. |
| Min. Time Setting | 0.6 sec. |
| Min. Time Setting - Timer | 0.6 sec. |
| Minimum Time Setting | 0.6 sec. |
| Mounting | Plug In |
| Mounting - Relay | Plug In |
| No. Of Pins | 8 |
| No. Of Pins - Relay | 8 |
| Number Of Delay Functions | 1 |
| Number Of Pins | 8 |
| Operating Functions | 4 |
| Overall Depth | 3 1/2" |
| Overall Height | 3.1" |
| Pins | 8 |
| Power Consumption | 2 VA |
| Relay Mounting Style | Socket |
| Reset Time | 0.1 sec. |
| Resistive Contact Amp Rating | 10A |
| Sealing | Enclosed |
| Socket Code | A |
| Status Indicator | No |
| Status Indicator | None |
| Timing Adjustment | Analog |
| Timing Relay Functionality | Interval Delay |
Shipping Info:
| Ship weight (kg) | 0.12 |
| Ship height (cm) | 4.32 |
| Ship length (cm) | 7.37 |
| Ship width (cm) | 5.84 |
| HS code | 8536490075 |
| Country of Origin | US |
Product Variants
| Product | Model | Max. Time Setting | Min. Time Setting | Socket Code | Delay Function | Input Voltage | Number Of Pins | Adjustment Method | Coil Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TR-50222-04 | 5 sec. | 0.05 sec. | A | On Delay | 120V AC/DC | 8 | Potentiometer | 2 VA | €46.19 | |
 |
TR-50222-10 | 180 sec. | 1.8 sec. | A | On Delay | 120V AC/DC | 8 | Potentiometer | 2 VA | €51.98 | |
 |
TR-50222-12 | 5 min. | 3 sec. | A | On Delay | 120V AC/DC | 8 | Potentiometer | 2 VA | €46.93 | |
 |
TR-50222 | 15 min. | 9 sec. | A | On Delay | 120V AC/DC | - | Potentiometer | 2 VA | €46.86 | |
 |
TR-50522-05 | 10 sec. | 0.1 sec. | A | Interval On | 120V AC/DC | 8 | Potentiometer | 2 VA | €48.42 | |
 |
TR-50522-10 | 180 sec. | 1.8 sec. | A | - | - | 8 | Potentiometer | 2 VA | €47.08 | |
 |
TR-50522-12 | 5 min. | 3 sec. | A | Interval On | 120V AC/DC | 8 | Potentiometer | 2 VA | €46.23 |
