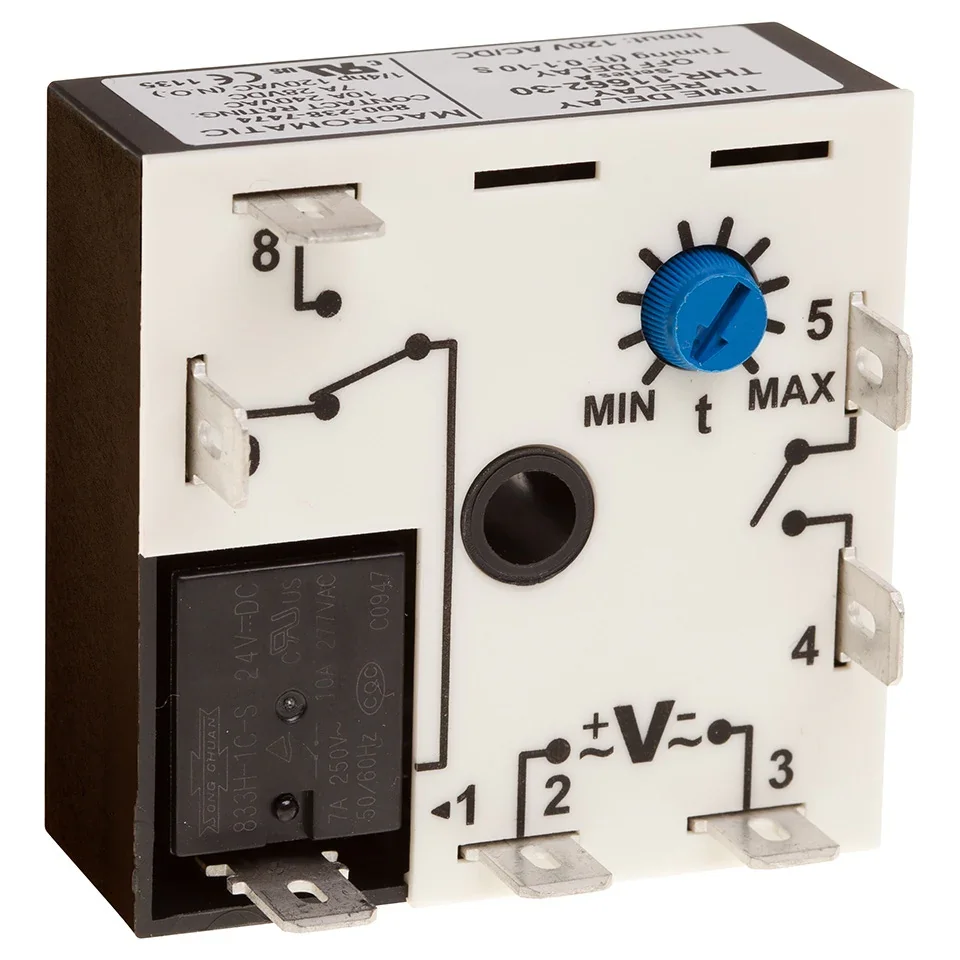

MACROMATIC THR-11662-36 Time Delay Relay, 120V AC/DC, 10A
10 Sec. to 1000 Sec.
120V AC/DC
OFF Delay
Get it by Wednesday, Aug 26
€66.90 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Time Delay Relay |
| Ac Voltage | 120V AC |
| Adjustment Operator | Knob |
| Contact | SPDT |
| Contact Rating | 10A |
| Contact Rating (a) | 10A |
| Contacts | SPDT |
| Dc Voltage | 120V DC |
| Eu Rohs Indicator | Yes |
| Family Series | Macromatic Relays, THR Series |
| Gross Weight | 0 lbs. |
| Max. Time | 1000 sec. |
| Mounting Type | Surface |
| Multi-function | No |
| Nominal Coil Voltage | 120V AC/125V DC |
| Output Amps | 10A |
| Product Datasheet | macromatic-thl-8024u-40.pdf |
| Series | THR Series |
| Termination | 0.25" Flat Blade |
| Time Range Adjustment | Onboard |
| Timer | 0 min. to 1 min., 0 min. to 2 min., 0 min. to 3 min., 0 min. to 5 min., 0 min. to 10 min., 0 min. to 15 min. |
| Timing Range | 10 - 1,000 Seconds |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 2.9 |
| Ship width (cm) | 5.08 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Ac Voltage | Dc Voltage | Output Amps | Mounting Type | Max. Time | Timer | Contact Rating | Series | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
THR-10261-36 | 240V AC | - | 10A | Surface | 1000 sec. | 0 min. to 1 min., 0 min. to 2 min., 0 min. to 3 min., 0 min. to 5 min., 0 min. to 10 min., 0 min. to 15 min. | 10A | THR Series | €59.41 | |
 |
THR-10261-36J | 240V AC | - | 10A | Surface | 1000 sec. | 0 min. to 1 min., 0 min. to 2 min., 0 min. to 3 min., 0 min. to 5 min., 0 min. to 10 min., 0 min. to 15 min. | 10A | THR Series | €59.41 | |
 |
THR-10262-36 | 240V AC | - | 10A | Surface | 1000 sec. | 0 min. to 1 min., 0 min. to 2 min., 0 min. to 3 min., 0 min. to 5 min., 0 min. to 10 min., 0 min. to 15 min. | 10A | THR Series | €59.41 | |
 |
THR-10262-36J | 240V AC | - | 10A | Surface | 1000 sec. | 0 min. to 1 min., 0 min. to 2 min., 0 min. to 3 min., 0 min. to 5 min., 0 min. to 10 min., 0 min. to 15 min. | 10A | THR Series | €59.41 | |
 |
THR-10266-36 | 240V AC | - | 10A | Surface | 1000 sec. | 0 min. to 1 min., 0 min. to 2 min., 0 min. to 3 min., 0 min. to 5 min., 0 min. to 10 min., 0 min. to 15 min. | 10A | THR Series | €59.41 | |
 |
THR-10266-36J | 240V AC | - | 10A | Surface | 1000 sec. | 0 min. to 1 min., 0 min. to 2 min., 0 min. to 3 min., 0 min. to 5 min., 0 min. to 10 min., 0 min. to 15 min. | 10A | THR Series | €59.41 | |
 |
THR-10268-36 | 240V AC | - | 10A | Surface | 1000 sec. | 0 min. to 1 min., 0 min. to 2 min., 0 min. to 3 min., 0 min. to 5 min., 0 min. to 10 min., 0 min. to 15 min. | 10A | THR Series | €59.41 |
