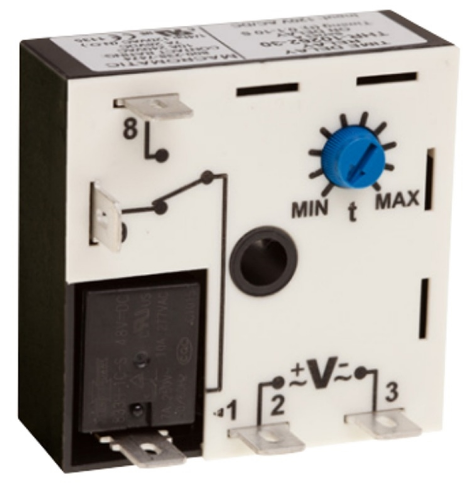

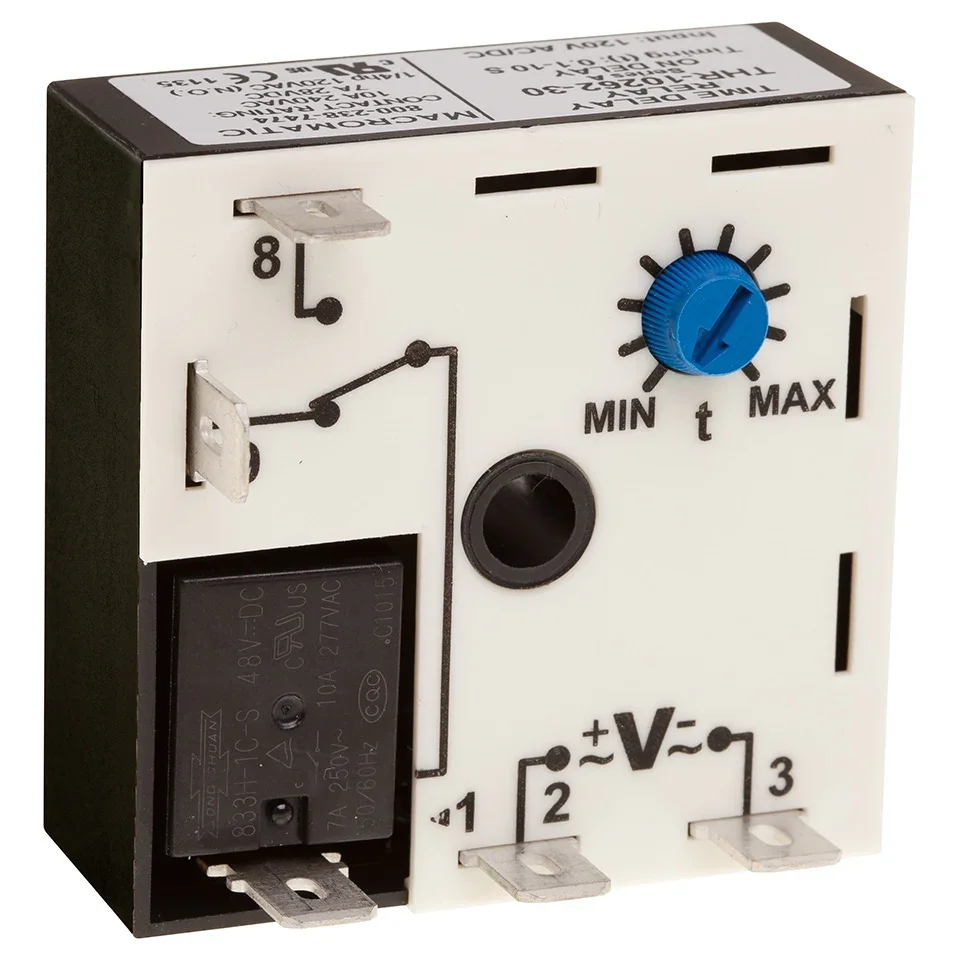

MACROMATIC THR-10566-35 Time Delay Relay, 12 VDC, 10A
1 Hrs. to 100 Hrs.
12V DC
Interval ON
Get it by Tuesday, Sep 1
€59.41 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Time Delay Relay |
| Ac Voltage | 240V AC |
| Adjustment Operator | Knob |
| Contact | SPDT |
| Contact Rating | 10A |
| Contact Rating (a) | 10A |
| Contacts | SPDT |
| Eu Rohs Indicator | Yes |
| Family Series | Macromatic Relays, THR Series |
| Gross Weight | 0 lbs. |
| Max. Time | 100 hrs. |
| Mounting Type | Surface |
| Multi-function | No |
| Output Amps | 10A |
| Product Datasheet | macromatic-thl-8024u-40.pdf |
| Series | THR Series |
| Termination | 0.25" Flat Blade |
| Time Range 10 Hrs. | 0 hr. to 1 hr., 0 hr. to 5 hrs., 0 hr. to 10 hrs. |
| Time Range Adjustment | Onboard |
| Timer | 0 hr. to 5 hrs., 0 hr. to 10 hrs., 0 hr. to 24 hrs., 0 hr. to 48 hrs., 0 hr. to 72 hrs., 0 hr. to 100 hrs. |
| Timing Range | 1 - 100 Hours |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 2.9 |
| Ship width (cm) | 5.08 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Ac Voltage | Dc Voltage | Output Amps | Mounting Type | Max. Time | Timer | Contact Rating | Series | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
THR-10261-35 | 240V AC | - | 10A | Surface | 100 hrs. | 0 hr. to 5 hrs., 0 hr. to 10 hrs., 0 hr. to 24 hrs., 0 hr. to 48 hrs., 0 hr. to 72 hrs., 0 hr. to 100 hrs. | 10A | THR Series | €59.41 | |
 |
THR-10261-35J | 240V AC | - | 10A | Surface | 100 hrs. | 0 hr. to 5 hrs., 0 hr. to 10 hrs., 0 hr. to 24 hrs., 0 hr. to 48 hrs., 0 hr. to 72 hrs., 0 hr. to 100 hrs. | 10A | THR Series | €59.41 | |
 |
THR-10262-35 | 240V AC | - | 10A | Surface | 100 hrs. | 0 hr. to 5 hrs., 0 hr. to 10 hrs., 0 hr. to 24 hrs., 0 hr. to 48 hrs., 0 hr. to 72 hrs., 0 hr. to 100 hrs. | 10A | THR Series | €59.41 | |
 |
THR-10262-35J | 240V AC | - | 10A | Surface | 100 hrs. | 0 hr. to 5 hrs., 0 hr. to 10 hrs., 0 hr. to 24 hrs., 0 hr. to 48 hrs., 0 hr. to 72 hrs., 0 hr. to 100 hrs. | 10A | THR Series | €59.41 | |
 |
THR-10266-35 | 240V AC | - | 10A | Surface | 100 hrs. | 0 hr. to 5 hrs., 0 hr. to 10 hrs., 0 hr. to 24 hrs., 0 hr. to 48 hrs., 0 hr. to 72 hrs., 0 hr. to 100 hrs. | 10A | THR Series | €59.41 | |
 |
THR-10266-35J | 240V AC | - | 10A | Surface | 100 hrs. | 0 hr. to 5 hrs., 0 hr. to 10 hrs., 0 hr. to 24 hrs., 0 hr. to 48 hrs., 0 hr. to 72 hrs., 0 hr. to 100 hrs. | 10A | THR Series | €59.41 | |
 |
THR-10268-35 | 240V AC | - | 10A | Surface | 100 hrs. | 0 hr. to 5 hrs., 0 hr. to 10 hrs., 0 hr. to 24 hrs., 0 hr. to 48 hrs., 0 hr. to 72 hrs., 0 hr. to 100 hrs. | 10A | THR Series | €59.41 |
