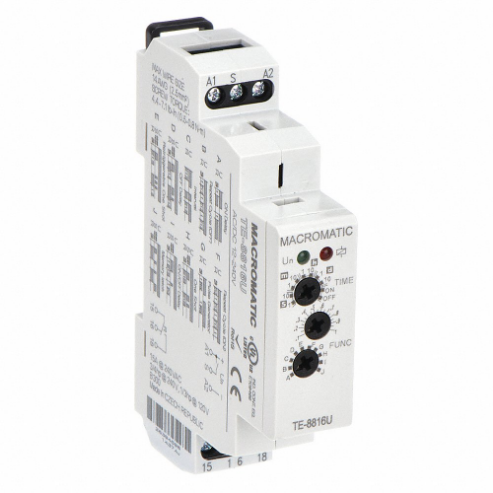

MACROMATIC TE-8816U Timer Relay, 10 Day, 6 Pin, 16A SPDT, 12/240V AC/DC
Item: AF7YUHModel: TE-8816UCross Ref: 23NV42
7 In Stock
Ships within 2 days via
5.00% off
€95.41 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Time Delay Relay |
| Adjustment Interface | Analog |
| Adjustment Method | Potentiometer |
| Adjustment Operator | Onboard |
| Amps | 15A |
| Base Shape | Square |
| Base Type | Not Applicable |
| Body Depth | 2 13/25" |
| Body Height | 3.55" |
| Body Width | 0.69" |
| Coil Rating | 3VA |
| Coil Rating | 3 VA |
| Coil Voltage | 12-240V AC/DC |
| Contact Amps Rating | 15A |
| Contact Form | SPDT |
| Contact Material | Silver Alloy |
| Contact Rating (a) | 15A |
| Contact Rating (ac) | 15A @ 240V |
| Contact Rating (dc) | Not Applicable |
| Contacts | SPDT |
| Dc Contact Rating | Not Applicable |
| Delay Function | Multi Function |
| Electrical Connection | Screw Clamp |
| Electrical Connection Type | Screw |
| Electrical Operating Durability | 70000 |
| Environmental Protection | Enclosed |
| Environmental Protection Combo | Enclosed/IP20 |
| Frequency | 50/60 Hz |
| Function | On Delay, Interval On, Flasher(Off First), Flasher(On First), Off Delay, Single Shot, Off Delay Falling Edge, On Delay/Off Delay, Latching Relay, Pulse Generator(Pulse=0.5 Sec.) |
| Function - Timing Relay | Flasher(Off First), Flasher(On First), Interval On, Latching Relay, Off Delay, Off Delay/On Delay, On Delay, One Shot, Pulse Generator(Pulse=0.5 Sec.), Watchdog |
| Green Certification Or Other Recognition | RoHS.png |
| Gross Weight | 0.175 lbs. |
| Ip Rating | IP20 |
| Life | Mechanical 10000000 Operations |
| Max. Operating Temp. | 131°F |
| Max. Switching Voltage | 240V AC/DC |
| Max. Time Setting | 10 Days |
| Mechanical Operating Durability | 10000000 |
| Min. Operating Temp. | -4°F |
| Min. Time Setting | 0.1 sec. |
| Min. Time Setting-timer | 0.1 sec. |
| Mounting | Din Rail |
| Mounting Style | DIN Rail |
| Mounting-relay | DIN Rail |
| Multi-function | Yes |
| No. Of Delay Functions | 10 |
| No. Of Functions | 10 |
| No. Of Pins | 6 |
| No. Of Pins-relay | 6 |
| No. Of Pins/terminals | 6 |
| Operating Functions | 1, 2, 4, 5, 6, 8, 9 |
| Overall Depth | 3 1/2" |
| Overall Height | 3.55" |
| Pins | 6 |
| Power Consumption | 1.7 W/3 VA |
| Relay Mounting Style | Din Rail |
| Reset Method | Time Limit Reset |
| Reset Time | 0.15 sec. |
| Resistive Contact Amp Rating | 15A |
| Resistive Contact Amps Rating | 15A |
| Sealing | Enclosed |
| Socket | Not Applicable |
| Socket Type | Not Applicable |
| Status Indicator | LED |
| Time Range Adjustment | Onboard |
| Timing Adjustment | Analog |
| Timing Relay Functionality | Flasher, Interval Delay, Latching, Off Delay, On Delay, One Shot, Pulse Generator |
| Voltage | 240V AC |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 9.02 |
| Ship length (cm) | 6.4 |
| Ship width (cm) | 1.75 |
| HS code | 9107000000 |
| Country of Origin | CZ |
Product Variants
| Product | Model | Contact Form | Pins | Relay Mounting Style | Delay Function | Electrical Connection Type | Min. Time Setting | Max. Time Setting | Environmental Protection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

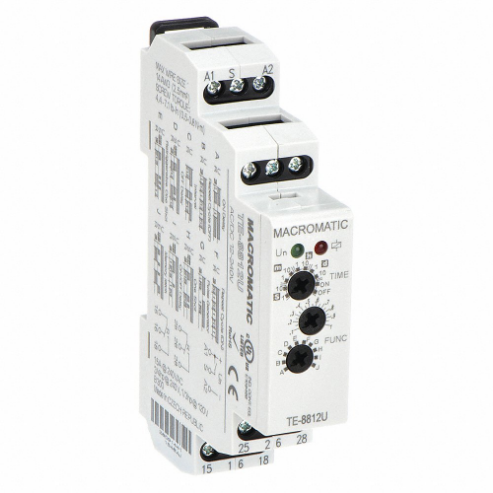

TE-8812U | DPDT | 9 | Din Rail | Multi Function | Screw | 0.1 sec. | 10 Days | Enclosed | €109.98 |
