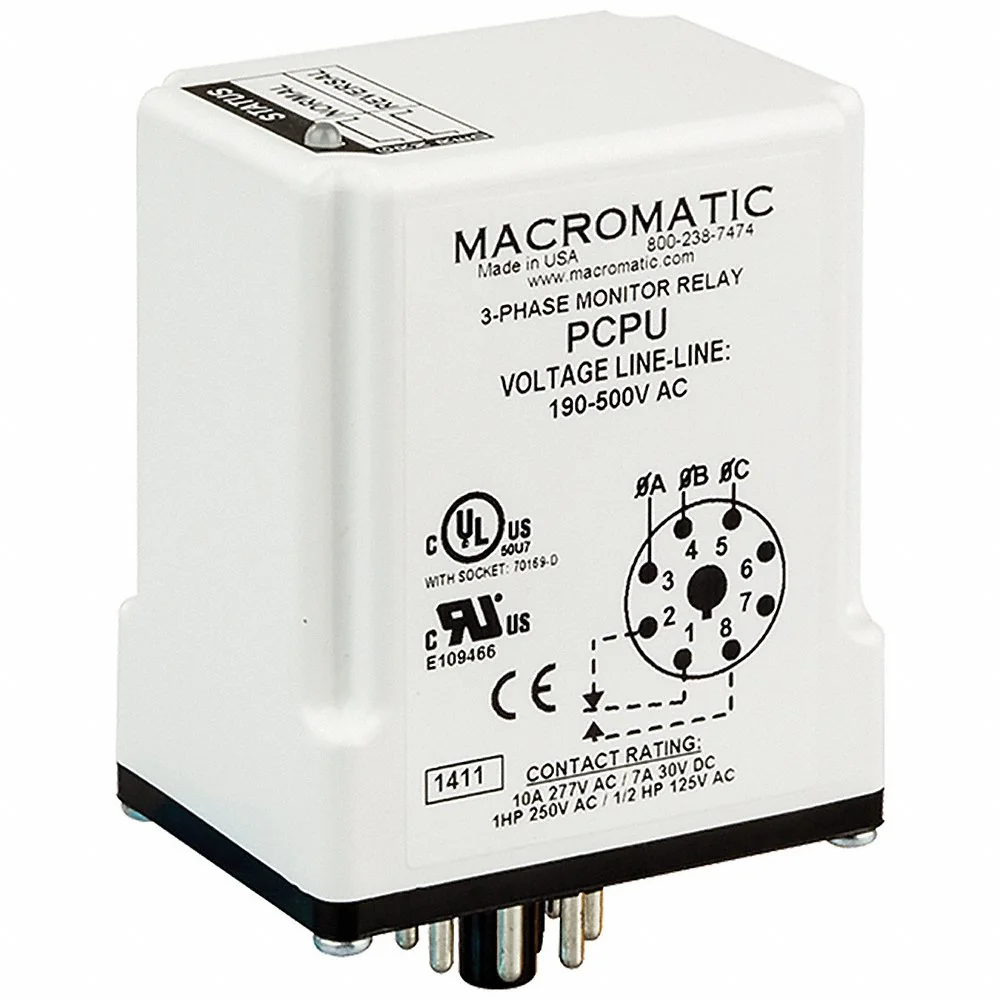

MACROMATIC PCPU Voltage Sensing Relay, 190-500VAC, 10A
Item: CD6XMWModel: PCPUCross Ref: 45LU83
7 In Stock
Ships within 2 days via
5.00% off
€99.25 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Relay |
| Ac Voltage | 190-500V AC |
| Amps | 10A |
| Amps Supported | 10A |
| Amps Unbalance Detect | No |
| Base Shape | Octal |
| Base Type | Octal |
| Base Type-plug In Relay | Octal |
| Body Depth | 2.9" |
| Body Height | 1.77" |
| Body Width | 2.48" |
| Configuration/contact Rating | SPDT. 10A @ 277V AC / 7A @ 30V DC |
| Contact Failure Detect | No |
| Contact Form | SPDT |
| Contact Rating (ac) | 10A @ 277V |
| Contact Rating (dc) | 7A @ 30V |
| Drop-out Range | 75% to 95% |
| Electrical Connection Type | Pin |
| Electrical Operating Durability | 100000 |
| Frequency | 50/60 Hz |
| Gross Weight | 0.25 lbs. |
| High Power Over Voltage Trip | No |
| Input Voltage | 190-500V AC |
| Lo Hp Trip Detect | No |
| Lo Kw Trip Detect | No |
| Lo Pwr (under Vltg) Trip | No |
| Manual Reset | No |
| Max. Operating Temp. | 149°F |
| Max. Switching Capacity | 40 VA |
| Max. Switching Voltage | 550V |
| Mechanical Operating Durability | 10000000 |
| Min./max. Voltage | 156-550V (PCPU) |
| Monitored Parameters | Phase Reversal |
| Mounting | Plug-In |
| Mounting Style | Plug-In |
| Mounting-relay | Plug In |
| No. Of Contacts | 1 |
| No. Of Pins | 8 |
| No. Of Pins-relay | 8 |
| No. Of Pins/terminals | 8 |
| Output Amps | 10A |
| Output Relay | SPDT |
| Over Amps | No |
| Over Voltage | No |
| Overall Depth | 1.77" |
| Overall Height | 3" |
| Phase | 3 |
| Phase Loss Detect | No |
| Phase Loss Sensitivity | No |
| Phase Reversal | Yes |
| Phase Reversal Time Delay | 0.1 sec. |
| Phase Rvrse/rotatn Detect | Yes |
| Phase Unbalance | No |
| Pick Up | 190-500V AC |
| Power Consumption | 40 VA |
| Protection | Phase Reversal Only |
| Rapid Cycling Detect | No |
| Relay Mounting | Plug In |
| Relay Mounting Style | Socket |
| Reset | Automatic Upon Correction Of Fault. |
| Restart | Auto |
| Restart Delay | 1 sec. |
| Restart Time Delay | 1 sec. |
| Socket Code | A |
| Trip Delay | 100 ms |
| Type Of Display | LED Status Indicator |
| Under Amps Detect | No |
| Under Voltage | No |
| Var Restart Delay | No |
| Variable Point Trip | No |
| Voltage Unbalance Detect | No |
Shipping Info:
| Ship weight (kg) | 0.13 |
| Ship height (cm) | 4.5 |
| Ship length (cm) | 7.37 |
| Ship width (cm) | 6.3 |
| Country of Origin | US |
