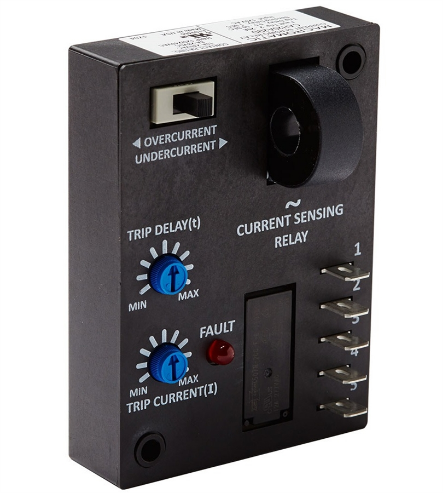

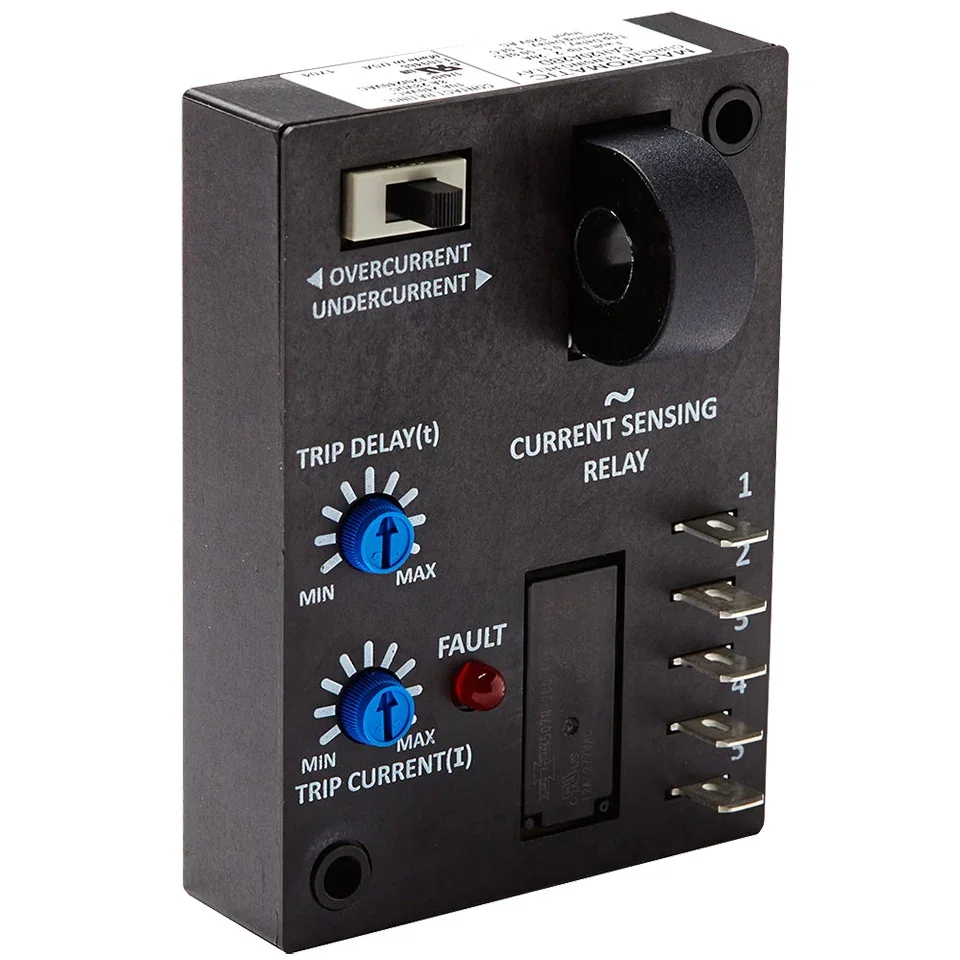

MACROMATIC CAH50A1BG AC Current Sensor, 2VA, Indicator Style LED, -40 to 85 Deg C
Get it by Monday, Aug 17
€118.90 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Current Sensing Relay |
| Amps Supported | 5-50A |
| Amps Unbalance Detect | No |
| Contact Failure Detect | No |
| Gross Weight | 0 lbs. |
| High Power Over Voltage Trip | No |
| Indicator Style | LED |
| Line Voltage | 240V |
| Lo Hp Trip Detect | No |
| Lo Kw Trip Detect | No |
| Lo Pwr (under Vltg) Trip | No |
| Load Capacity | 2 VA |
| Manual Reset | No |
| Operating Life | 10000000 Operations |
| Output Relay | SPDT |
| Over Amps | No |
| Phase Loss Detect | No |
| Phase Rvrse/rotatn Detect | No |
| Rapid Cycling Detect | No |
| Restart Delay | 0.4 sec. |
| Temp. | -40°C to +85°C |
| Type Of Display | LED Status Indicator |
| Under Amps Detect | No |
| Var Restart Delay | No |
| Variable Point Trip | Yes |
| Voltage Unbalance Detect | No |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 8.89 |
| Ship length (cm) | 3.81 |
| Ship width (cm) | 6.35 |
| Country of Origin | US |
Product Variants
| Product | Model | Temp. | Load Capacity | Operating Life | Indicator Style | Price | |
|---|---|---|---|---|---|---|---|
 |
CAH05A1AC | -40°C to +85°C | 2 VA | 10000000 Operations | LED | €118.90 | |
 |
CAH05A1AF | -40°C to +85°C | 2 VA | 10000000 Operations | LED | €118.90 | |
 |
CAH05A1AG | -40°C to +85°C | 2 VA | 10000000 Operations | LED | €118.90 | |
 |
CAH05A1AJ | -40°C to +85°C | 2 VA | 10000000 Operations | LED | €118.90 | |
 |
CAH05A1AE | -40°C to +85°C | 2 VA | 10000000 Operations | LED | €118.90 | |
 |
CAH05A1BC | -40°C to +85°C | 2 VA | 10000000 Operations | LED | €118.90 | |
 |
CAH05A1AH | -40°C to +85°C | 2 VA | 10000000 Operations | LED | €118.90 |
