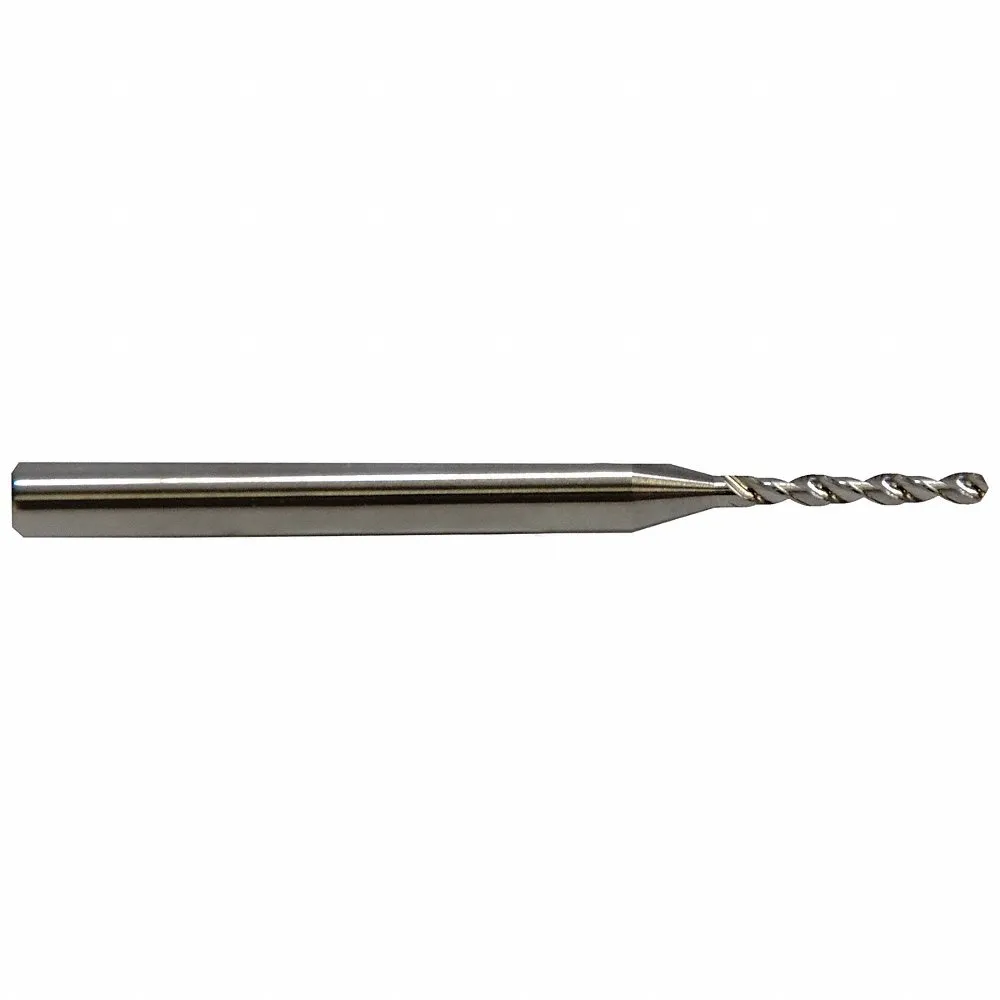

M A FORD 30203940 Micro Drill Bit, 1 mm Drill Bit Size, 10.16 mm Flute Length, 1/8 Inch Shank Dia
Item: CT2AJTModel: 30203940Cross Ref: 794MT9
7 In Stock
Ships within 2 days via
10.00% off
€8.63 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Micro Drill Bit |
| Circuit Board Drill | Yes |
| Coolant Fed | Non Coolant Through |
| Cutting Direction | Right |
| Decimal Equivalent | 0.0394 |
| Depthdia. Ratio | 9xd |
| Drill Bit Point Angle | 130° |
| Drill Bit Point Type | 4 Facet Point |
| Drill Bit Size | 1 mm |
| Drill Diameter Tolerance | -0.0005" to 0" |
| Finish | Bright, Uncoated |
| Finish - Machining | Bright (Uncoated) |
| Flute Length | 10.16 mm |
| Flute Type | Helical |
| Grade | General Purpose |
| Helix Angle | 35° |
| Material - Machining | Carbide |
| Material Grade - Machining | General Purpose |
| Maximum Drilling Depth | 8.66 mm |
| Measurement System | Metric |
| Number Of Coolant Holes | 0 |
| Number Of Flutes | 2 |
| Overall Length | 38 mm |
| Primary Material Application | Cast Iron, Non Ferrous, Steel |
| Primary Material Application Iso Code | K, N, O, P |
| Secondary Material Application | Alloy Steel, Cast Iron, Die Steel, Hardened Steel, Non-Ferrous, Stainless Steel, Titanium |
| Secondary Material Application Iso Code | H, K, M, N, P, S |
| Shank Dia. | 1/8" |
| Shank Length | 1.0961" |
| Shank Type - Machining | Straight |
| Spiral Direction | Right Hand |
| Web Construction | 4 Facet Point |
| Web Thinning | Four Facet Point |
Shipping Info:
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Decimal Equivalent | Overall Length | Shank Dia. | Drill Bit Size | Max. Drilling Depth | Price | |
|---|---|---|---|---|---|---|---|
| MXDCLM0100A | 0.0394 | 60 mm | 3 mm | 1 mm | 14.5 mm | €171.18 | |
| MXDCLM0110A | 0.0433 | 60 mm | 3 mm | 1.1 mm | 16.36 mm | €171.18 | |
| MXDCLM0120A | 0.0472 | 65 mm | 3 mm | 1.2 mm | 18.21 mm | €171.18 | |
| MXDCLM0130A | 0.0512 | 65 mm | 3 mm | 1.3 mm | 19.05 mm | €171.18 | |
| MXDCLM0140A | 0.0551 | 65 mm | 3 mm | 1.4 mm | 20.9 mm | €171.18 | |
| MXDCLM0150A | 0.0591 | 65 mm | 3 mm | 1.5 mm | 21.74 mm | €171.18 | |
| MXDCLM0160A | 0.063 | 70 mm | 3 mm | 1.6 mm | 23.6 mm | €171.18 |
