FREE delivery on orders over €150

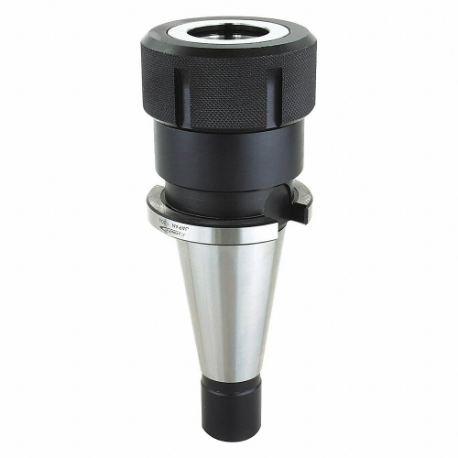

LYNDEX-NIKKEN N3007-0750-2.50 Collet Chuck, Nmtb30 Taper Size, 2 1/2 Inch Projection
Item: CR9TZMModel: N3007-0750-2.50Cross Ref: 38PZ47
7 In Stock
Ships within 2 days via
10.00% off
€312.44 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Collet Chuck |
| Balanceable | No |
| Compatible Collet Wrench | 75TG-SPAN |
| Compatible Nut Model No. | 75TG-NUT |
| Coolant Fed | Coolant Through |
| Coolant Supply | Coolant Through |
| Coolant Through | Yes |
| Features | Pre-Balanced |
| Finish | Nickel Chrome |
| For Collet Series | Tg75 |
| For Max Collet Size | 3/4" |
| For Min Collet Size | 0.047" |
| For Use With | TG Collets |
| Includes Coolant Screws | Coolant Screws Included |
| Includes Nut | Nut Included |
| Material | Molybdenum |
| Max Speed | 30000 RPM |
| Max. Collet Capacity | 3/4" |
| Min. Collet Capacity | 0.047" |
| Nose Dia. | 1.89" |
| Nut Dia. | 1.89" |
| Outside Diameter - Maximum | 1.89" |
| Overall Length | 5 3/16" |
| Pre-balanced | Yes |
| Product Type | Nmtb Collet Chuck |
| Projection | 2 1/2" |
| T.i.r. Tolerance | 0.0002" |
| Taper Size | NMTB30 |
Shipping Info:
| Ship weight (kg) | 0.63 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Material | Projection | Taper Size | Nut Dia. | Min. Collet Capacity | Max. Collet Capacity | Nose Dia. | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| B3007-0016-2.36 | Molybdenum | 2 9/25" | BT30 | 1.26" | 0.019" | 0.406" | 1.26" | 4 17/64" | €281.78 | |
| B3007-0020-2.50 | Molybdenum | 2 1/2" | BT30 | 1.38" | 0.039" | 0.511" | 1.38" | 4 13/32" | €311.00 | |
| B3007-0500-2.00 | Molybdenum | 2" | BT30 | 2 1/2" | 1/8" | 1/2" | 1.34" | 3 29/32" | €544.06 | |
| B3007-0750-2.50 | Molybdenum | 2 1/2" | BT30 | 0.47" | 0.047" | 3/4" | 1.89" | 4 13/32" | €249.19 | |
| B3007-1000-3.94 | Molybdenum | 3.94" | BT30 | 3/4" | 0.047" | 1" | - | 5 27/32" | €249.19 | |
| B3017-0020-4.00 | Molybdenum | 4" | BT30 | 1.38" | 0.039" | 0.511" | 1.38" | 5 29/32" | €354.49 | |
| B3027-0016-5.00 | Molybdenum | 5" | BT30 | 1.26" | 0.019" | 0.406" | 1.26" | 6 29/32" | €314.12 |
