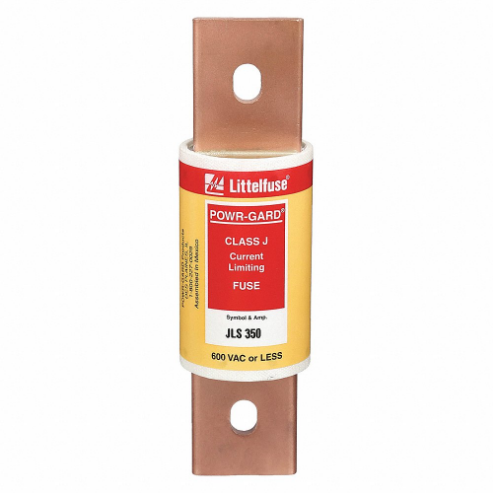

LITTELFUSE JLS350 Fuse, 350A, 600V AC, 3-3/8 Inch Length x 7-1/8 Inch Dia., Blade Body
Item: CY3EMNModel: JLS350Cross Ref: 486J60
7 In Stock
350A
Ships within 2 days via
10.00% off
€236.75 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fuse |
| Ac Voltage Rating | 600V AC |
| Amps | 350A |
| Body Material | Melamine |
| Body Style | Blade |
| Class | Class J |
| Compatible Fuse Block Series | Lfj |
| Dc Voltage Rating | Not Rated |
| Diameter | 7 1/8" |
| Element | Single |
| Equivalent Brand And Series | BUSSMANN JKS, LITTELFUSE JLS, MERSEN A4J Series |
| Equivalent Series | A4J, Jks, Jls |
| Fits Fuse Block Style | Nonrejection |
| Fuse Size | 3 3/8" x 7 1/8" |
| Interrupt Rating | 200 kA at 600V AC |
| Length | 3 3/8" |
| Speed | Fast Acting |
| Standards | Ce, Csa Certified, Qpl-W-F-1814, Ul 248-8 Class J, Ul Listed |
| Visual Indication | Non Indicating |
Shipping Info:
| Ship weight (kg) | 0.77 |
| Ship height (cm) | 8.57 |
| Ship length (cm) | 18.1 |
| Ship width (cm) | 18.1 |
| Country of Origin | MX |
Product Variants
| Product | Model | Amps | Body Style | Dc Voltage Rating | Speed | Visual Indication | Interrupt Rating | Ac Voltage Rating | Class | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
JLS003 | 3A | Cylindrical | Not Rated | Fast Acting | Non Indicating | 200 kA at 600V AC | 600V AC | Class J | €32.18 | |
 |
JLS006 | 6A | Cylindrical | Not Rated | Fast Acting | Non Indicating | 200 kA at 600V AC | 600V AC | Class J | €35.25 | |
 |
JLS010 | 10A | Cylindrical | Not Rated | Fast Acting | Non Indicating | 200 kA at 600V AC | 600V AC | Class J | €35.15 | |
 |
JLS015 | 15A | Cylindrical | Not Rated | Fast Acting | Non Indicating | 200 kA at 600V AC | 600V AC | Class J | €35.18 | |
 |
JLS020 | 20A | Cylindrical | Not Rated | Fast Acting | Non Indicating | 200 kA at 600V AC | 600V AC | Class J | €35.27 | |
 |
JLS025 | 25A | Cylindrical | Not Rated | Fast Acting | Non Indicating | 200 kA at 600V AC | 600V AC | Class J | €40.03 | |
 |
JLS030 | 30A | Cylindrical | Not Rated | Fast Acting | Non Indicating | 200 kA at 600V AC | 600V AC | Class J | €33.87 |
