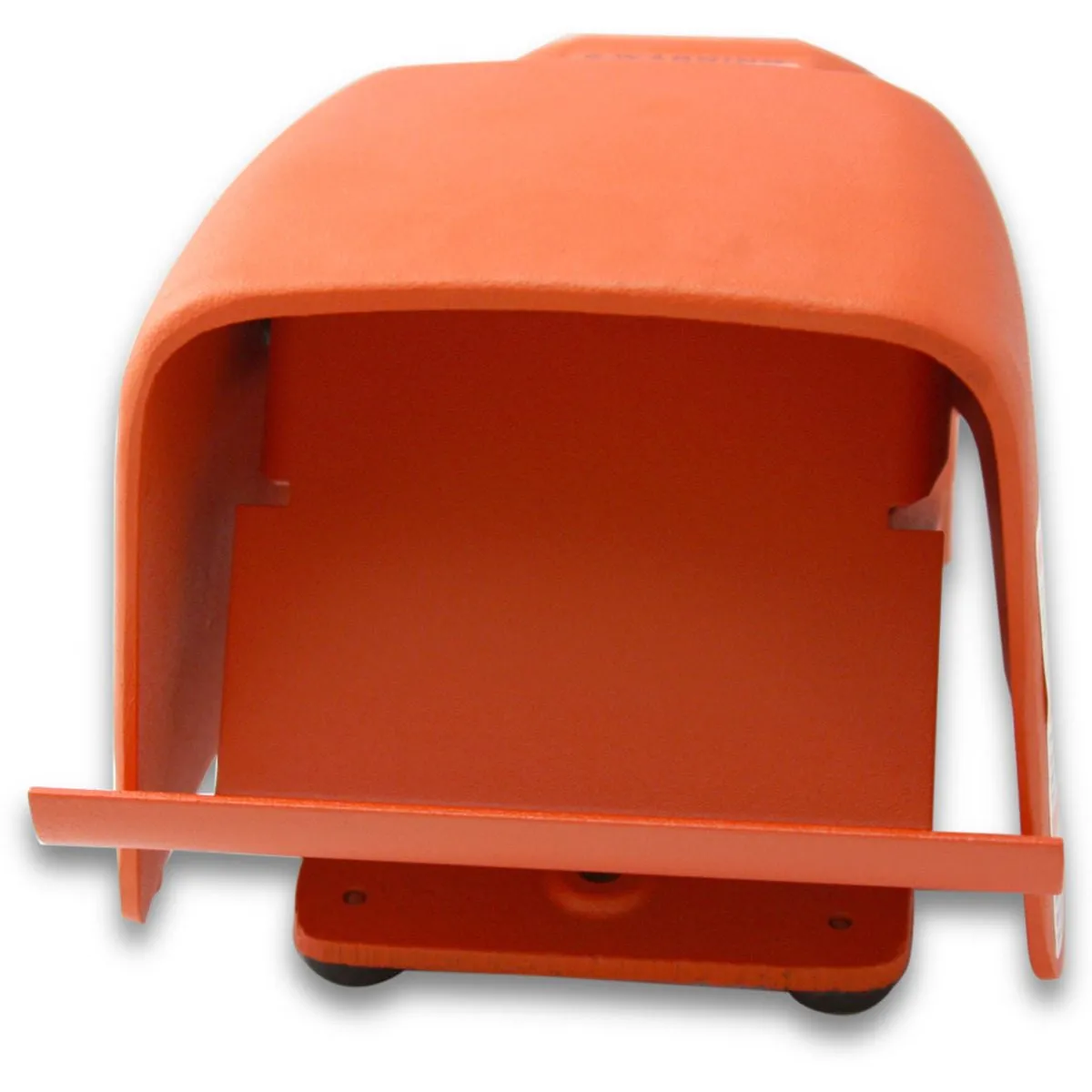

LINEMASTER 511-BG Heavy Duty Foot Switch Momentary Action
Item: AD2ZKJModel: 511-BGCross Ref: 3X680
7 In Stock
C
Single
SPDT
Ships within 2 days via
10.00% off
€562.12 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Foot Switch |
| Ac Contact Rating | 20A @ 125 To 250V |
| Action Type | Momentary |
| Cable Entries | Threaded Entry |
| Cable Entry Size | 3/4"-14 |
| Cable Entry Type | NPT |
| Contact Configuration | Form C |
| Contact Form | SPDT |
| Depth | 5 1/2" |
| Display Qty | 1 |
| Electrical Ratings | 20A, 125-250V AC, 1 hp, 125-250V AC, Heavy Pilot Duty 250V AC Max. |
| Features | (3) Mounting Holes, Dual Treadle Return Springs, Latch Trip Lever, Latching Mechanism, Non-Skid, Smooth Trip Lever Release |
| Foot Guard Included | Guard Included |
| Hazardous Location Specification | Not Rated |
| Horsepower | 1 hp @ 125-250V AC |
| Housing Colors | Orange |
| Housing Material | Cast Iron |
| Includes Potentiometer | No Potentiometer Included |
| Ip Rating | IP56 |
| Length | 10" |
| Material | Cast Iron |
| Nema Enclosure Rating | NEMA 2, NEMA 4, NEMA 13 |
| Nema Rating | NEMA 2, 4, 13 |
| Number Of Pedals | 1 |
| Overall Depth | 5.5" |
| Overall Height | 1.57" |
| Overall Width | 1.57" |
| Power Source | Electrically Corded |
| Product Datasheet | linemaster-511-b2.pdf |
| Series | HERCULES Series |
| Shields And Guards | Gated O Shield |
| Switch Action | Momentary |
| Switch Type | Electrical |
| Termination Connection Type | Screw Terminal |
| Width | 6" |
Shipping Info:
| Ship weight (kg) | 0.68 |
| Ship height (cm) | 13.49 |
| Ship length (cm) | 23.19 |
| Ship width (cm) | 15.24 |
| HS code | 8536509035 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Contact Form | Action Type | Material | Color | Nema Rating | Ip Rating | Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
|
511-B2GA | SPDT | Momentary/Momentary | Cast Iron | Orange | - | IP56 | - | €691.78 |
