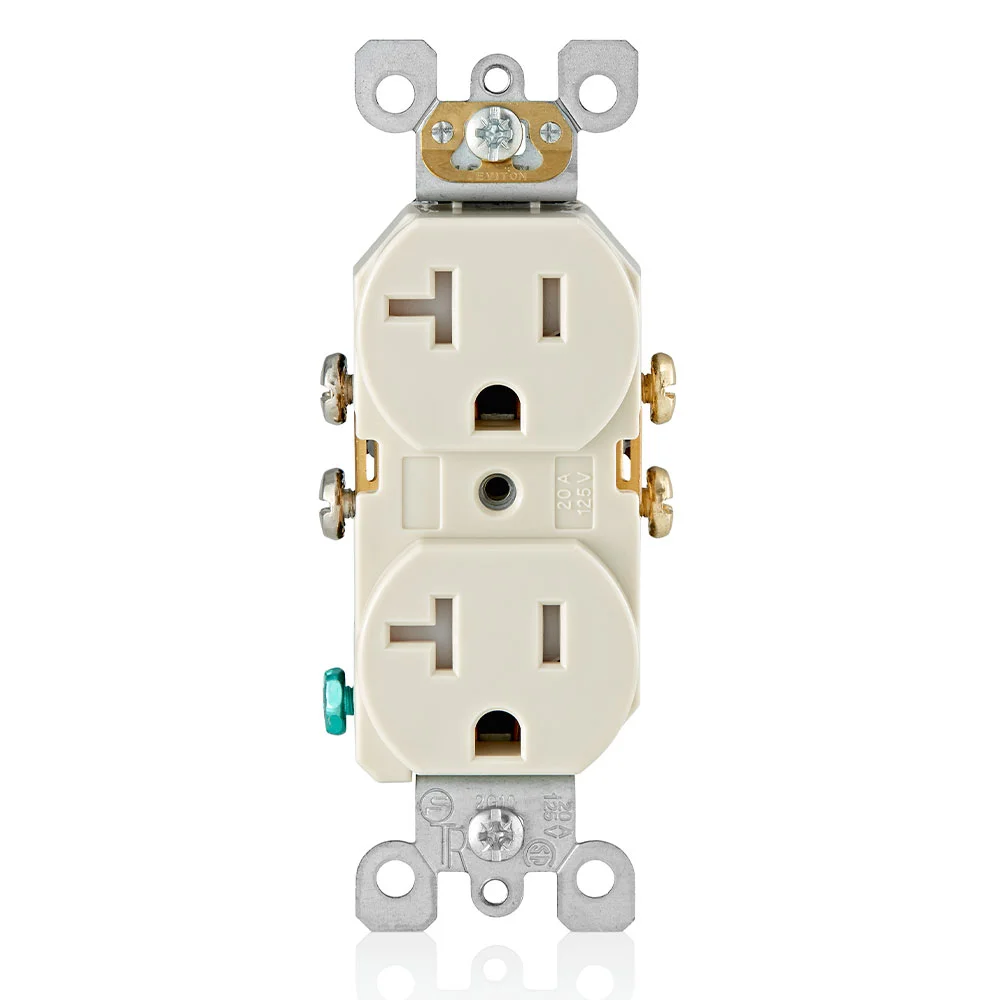

LEVITON T5820-T Straight Blade Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Light Almond, Nylon/Thermoplastic
Item: CR9HWWModel: T5820-TCross Ref: 792UT0
7 In Stock
Ships within 2 days via
5.00% off
€10.75 /unit
This product can only be shipped in multiples of 50Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Amps | 20A |
| Body Material | Thermoplastic Nylon |
| Color | Light Almond |
| Connection Orientation | Straight |
| Cover Type | No Cover |
| Current Rating | 20A |
| Depth | 0.938" |
| Device Type | Duplex Receptacle |
| Face Material | Thermoplastic Nylon |
| Face Plate Height | 2 4/5" |
| Face Plate Width | 1.4" |
| Features | Tamper Resistant |
| Gfci | No |
| Grade | Federal Specification |
| Grounding | Grounded , Self Grounding |
| Housing Color | Light Almond |
| Includes Mounting Hardware | Yes |
| Mount Hole Center-to-center Height | 3.3" |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Nema Enclosure Rating | Not Rated |
| Nema Rating | NEMA 5-20R |
| Nema Receptacle Configuration | NEMA 5-20R |
| Number Of Outlets | 2 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Overall Depth | 0.9" |
| Phase | Single |
| Polarized | Yes |
| Receptacle Type | Duplex |
| Special Resistance | Tamper Resistant |
| Standards | Csa Certified, Nom Certified, Rohs Compliant, Ul Listed |
| Terminal Accom. | Side Wiring Accepts #10 And #12 AWG Copper (CU) Or #10 Copper Clad (CC) Wire |
| Termination | Side |
| Torque Range | 14 lbs.-in. to 18 lbs.-in. |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Location | Side |
| Wire Connection Type | Screw Terminals |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 20 |
| Ship length (cm) | 52.71 |
| Ship width (cm) | 3.66 |
| Country of Origin | CN |
