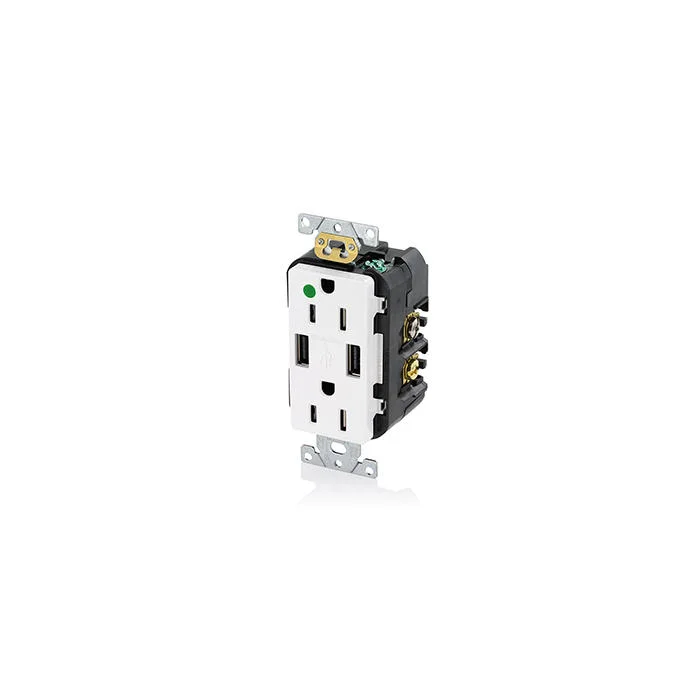

LEVITON T5632-HGW Tamper-Resistant Combination Duplex Receptacle and USB Charger, 15 A/125 VAC/0.5 HP, 2 Poles, 3 Wires, White
Item: CR9HPUModel: T5632-HGWCross Ref: 792UR8
7 In Stock
Ships within 2 days via
5.00% off
€92.07 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Ac Hp Ratings At Rated Voltage | 1/2 hp |
| Amps | 15A |
| Body Material | PBT Thermoplastic Polyester Resin |
| Color | White |
| Current Rating | 15A |
| Device Type | Duplex Receptacle Outlet |
| Dielectric Voltage | Withstands 2000V Per CSA |
| Face Material | PBT |
| Features | Tamper Resistant With USB, Smooth Face |
| Flammability | Rated V-0 Per UL 94 |
| Grade | Heavy Duty Hospital Grade , Hospital |
| Ground Clips Material | Brass |
| Grounding | Self Grounding |
| Grounding Screw Material | Steel |
| Housing Color | White |
| Line Contacts Material | Brass |
| Nema Rating | NEMA WD-1 And NEMA WD-6 |
| Nema Receptacle Configuration | NEMA 5-15R |
| Number Of Poles | 2 |
| Number Of Usb Ports | 2 |
| Number Of Wires | 3 |
| Operating Temp. | -10°C to +40°C |
| Power Indicating Light | No |
| Product Datasheet | leviton-t5832-hgw.pdf |
| Resistance Properties | Tamper Resistant |
| Screw Terminal Torque | 14 lbs.-in. to 18 lbs.-in. |
| Strap Material | Steel |
| Temp. Rise | Max. 30°C After 100 Cycles Ol |
| Terminal Accom. | 14 AWG to 12 AWG |
| Terminal Clamp Material | Brass |
| Terminal Id | Brass Hot, Green Ground, Silver Neutral |
| Terminal Screws Material | Steel |
| Termination | Back Or Side Wire |
| Usb Connection Type | A |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 13.81 |
| Ship length (cm) | 26.04 |
| Ship width (cm) | 5.08 |
| Country of Origin | CN |
