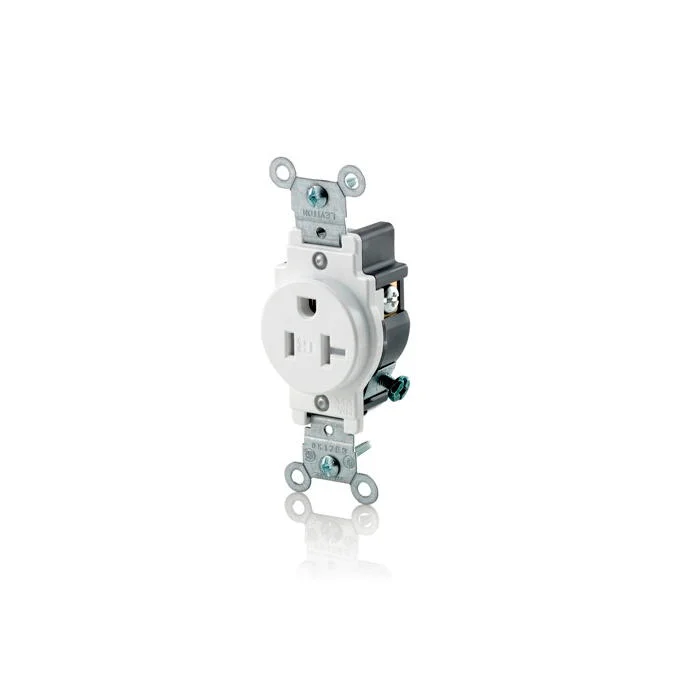

LEVITON T5020-W Receptacle, Single, 5-20R, 20 A, 125V AC, White, 2 Poles, Screw Terminals
Item: CR9HZUModel: T5020-WCross Ref: 792UR0
7 In Stock
Ships within 2 days via
10.00% off
€15.41 /unit
This product can only be shipped in multiples of 50Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Amps | 20A |
| Body Material | Thermoplastic Nylon |
| Color | White |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Cover Type | No Cover |
| Current Rating | 20A |
| Depth | 1.06" |
| Face Plate Height | 2.4" |
| Face Plate Width | 1.3" |
| Gfci | No |
| Grounding | Grounded |
| Housing Color | White |
| Hp | 1 hp |
| Includes Mounting Hardware | Yes |
| Maximum Operating Temperature | 140°F |
| Maximum Wire Size | 10 AWG |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 14 AWG |
| Minimum Operating Temperature | -40°F |
| Mount Hole Center-to-center Height | 3.3" |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Nema Enclosure Rating | Not Rated |
| Nema Receptacle Configuration | NEMA 5-20R |
| Number Of Outlets | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Overall Depth | 1.1" |
| Phase | Single |
| Polarized | Yes |
| Receptacle Type | Single |
| Special Resistance | Tamper Resistant |
| Standards | Ansi, Csa Certified, Ul Listed |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 10.31 |
| Ship length (cm) | 2.69 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Product Variants
| Product | Model | Housing Color | Color | Receptacle Type | Current Rating | Voltage Rating | Phase | Wire Connection Type | Wire Connection Location | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
T5020 | Brown | Brown | Single | 20A | 125V AC | Single | Screw Terminals | Back, Side | €16.30 | |
 |
T5020-T | Light Almond | Light Almond | Single | 20A | 125V AC | Single | Screw Terminals | Back, Side | €17.79 | |
 |
T5020-I | Ivory | Ivory | Single | 20A | 125V AC | Single | Screw Terminals | Back, Side | €17.78 |
