LEVITON ODC10-MDW Line Voltage Ceiling Mount Occupancy Sensors, 120/230/277 VAC, 1000 sq-ft Coverage, 180 Deg
Get it by Thursday, Apr 2
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Motion Sensor |
| Amps Consumption | 30-60 mA |
| Application | Code Compliance, Auto On/Auto Off, Manual On/Auto Off |
| Color | White |
| Communication Method | Hard Wired |
| Compatible With | 1/3 Hp Motor, 1/4 Hp Motor, Electronic Ballast, Tungsten Magnetic Ballast |
| Compatible With Series | Tungsten Magnetic Ballast |
| Coverage | 1000 sq. ft. |
| Coverage Angle | 360° |
| Depth | 2.39" |
| Features | Line Voltage |
| Frequency | 50/60 Hz |
| Grade | Commercial |
| Includes | (2) #6-32 Screw, 360° Perforated Mask, Angled Light Pipe, Emergency Label, Half Mask, Low Voltage Connector, Mid-Range Lens, Mounting Plate, Tubing Barrier |
| Installation Location | Ceiling |
| Installation Location (motion Sensor) | Ceiling |
| Lighting Technology | Tungsten |
| Load Rating | 120V, 50/60 Hz- 8A, Electronic Ballast, 800 W/VA, Tungsten, Ballast, 1/4 hp Motor-230V, 50 Hz- 6A/6AX, Electronic Ballast, Magnetic Ballast, 1200 W/VA, 1/3 hp Motor-277V, 50/60 Hz- 5A, Electronic Ballast, 1200VA, 1/3 hp Motor |
| Load Rating @ 120v Ac | 800W/VA 8A (Incandescent, 1/4 hp Motor) |
| Load Rating @ 277v Ac | 5A (Electronic Ballast), 1200 VA (1/3 hp Motor) |
| Manufacturer Warranty | 5 yrs. Limited |
| Max. Capacity @ 120vac | 800 W (Tungsten, Ballast, 1/4 hp Motor), 8A (Electronic Ballast) |
| Maximum Coverage Area | 1000 sq. ft. |
| Maximum Mounting Height | 12 ft. |
| Maximum Operating Temperature | 104°F |
| Maximum Time Delay | 15 min. |
| Minimum Mounting Height | 8 ft. |
| Minimum Operating Temperature | 32°F |
| Minimum Time Delay | 20 sec. |
| Mounting Type | Ceiling Mount |
| Neutral Wire Connection | Required |
| Operating Voltage | 120-277V AC |
| Overall Depth | 2.39" |
| Overall Height | 2.15" |
| Overall Width | 4 4/5" |
| Pattern | 360° |
| Product Datasheet | leviton-odc10-mdw.pdf |
| Relative Humidity | 0% to 90% Non Condensing |
| Sensing Technology | Passive Infrared (PIR), Ultrasonic |
| Sensor Operation | Occupancy, Photocell |
| Sensor Technology | Multi Technology-PIR/Ultrasonic US |
| Sensor Type | Occupancy, Photocell |
| Series | PROVOLT Series |
| Standards | Cec Title 20/24 Complaint, Rohs Compliant, Ul/Ce |
| Storage Temp. | -15°F to +160°F |
| Suggested Mounting Height | 8 ft. to 12 ft. |
| Time Delay | 10 min., 20 min., 30 min., 30 sec., 5 min. |
| Time Delay Adjustment Method | Adaptive |
| Voltage | 120/230/277V AC |
| Voltage Type | Line Voltage |
| Width | 4 4/5" |
Shipping Info:
| Ship weight (kg) | 0.36 |
| Ship height (cm) | 26.67 |
| Ship length (cm) | 40.64 |
| Ship width (cm) | 11.13 |
| Country of Origin | CN |
Documentation:
Product Variants
| Product | Model | Coverage | Lighting Technology | Operating Voltage | Installation Location (motion Sensor) | Time Delay | Communication Method | Sensor Type | Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

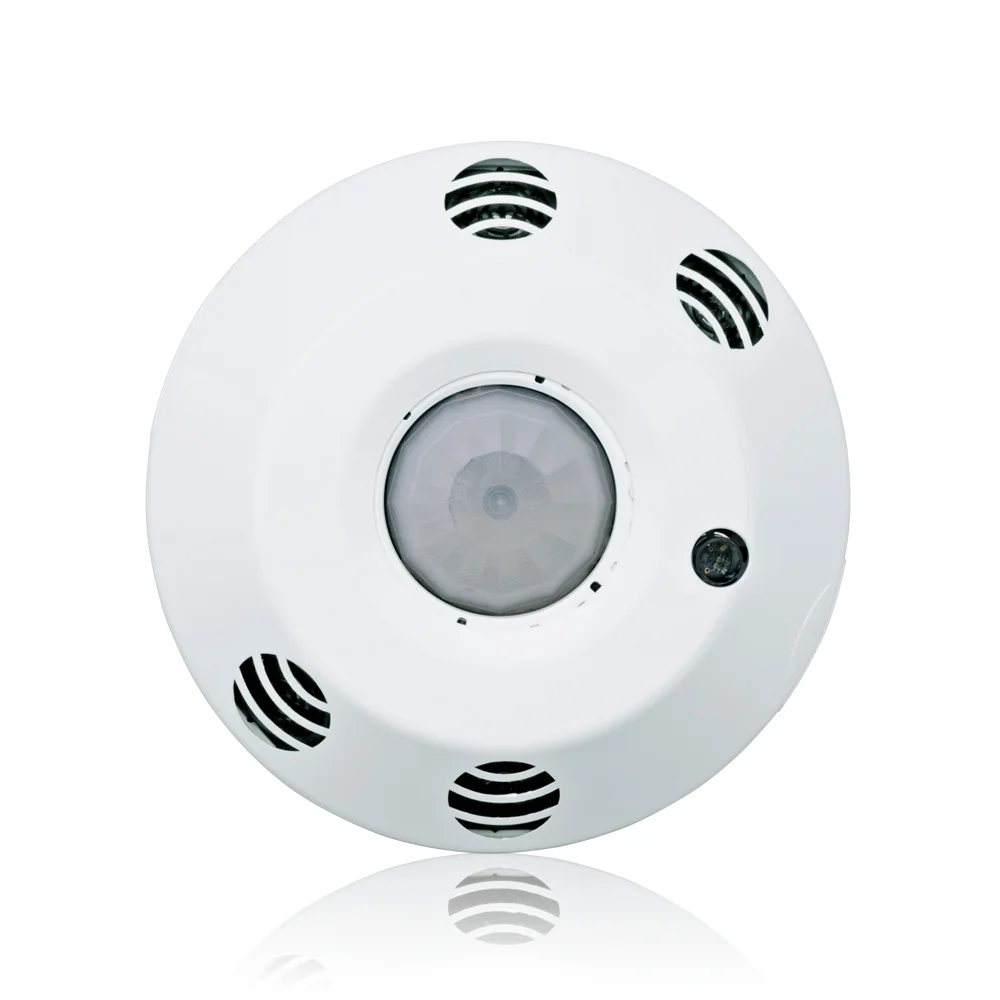

ODC20-MDW | 2000 sq. ft. | Tungsten | 120-277V AC | Ceiling | 10 min., 20 min., 30 min., 30 sec., 5 min. | Hard Wired | Occupancy, Photocell | White | - | RFQ
|
