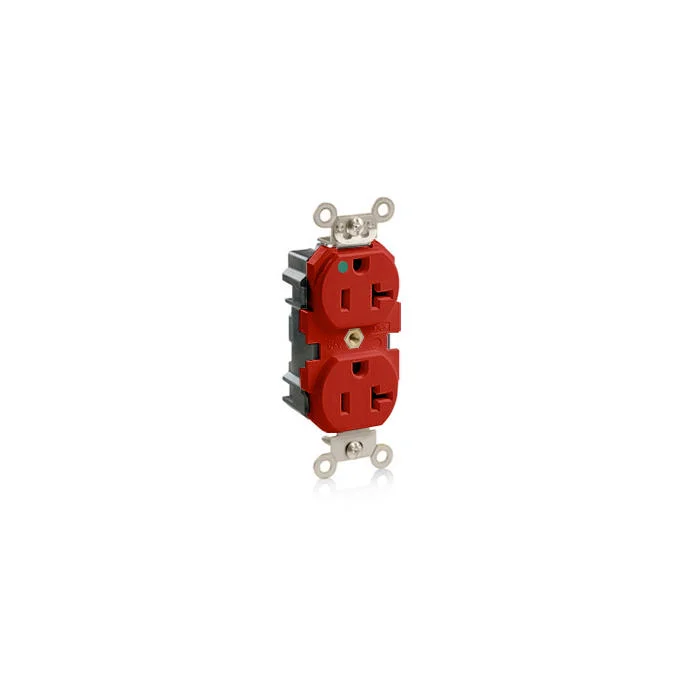

LEVITON M8300-R Receptacle, Duplex, 5-20R, 20 A, 125V AC, Red, 2 Poles, Modular Wiring, Hospital Grade | CR9HXC 792UM2

LEVITON M8300-R Extra Heavy Duty Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Red

Item: CR9HXCModel: M8300-RCross Ref: 792UM2
7 In Stock

Ships within 2 days via

€40.96
5.00% off
€38.91 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Receptacle
Amps 20A
Base Material Nylon
Bushing Material Solid Brass
Color Red
Connection Orientation Straight
Cover Material Nylon
Cover Type No Cover
Current Interrupting Certified For Current Interrupting At Full Rated Current
Current Rating 20A
Device Type Duplex Receptacle Outlet
Dielectric Voltage Withstands 2000V Per UL498
Features Smooth Face
Gfci No
Grade Extra Heavy Duty Hospital Grade , Hospital
Ground Clips Finish Nickel Plated
Ground Clips Material Brass
Grounding Grounded , Self Grounding
Housing Color Red
Hp Rating 1 hp
Includes Wallplate
Includes Mounting Hardware Yes
Line Contacts Material Brass
Line Contacts Thickness 1/25"
Locking Pins Solid Brass
Max. Working Voltage 125V
Mount Hole Center-to-center Height 3.3"
Mounting Hardware Included Yes
Mounting Screws Material Triple Combination Head, Steel
Mounting Strap Single Piece Nickel Plated Brass With Integral Ground Contact
Mounting Type Flush
Nema Rating NEMA WD-1 And NEMA WD-6
Nema Receptacle Configuration NEMA 5-20R
Number Of Outlets 2
Number Of Poles 2
Number Of Wires 3
Operating Temp. -40°C to +60°C
Phase Single
Polarized Yes
Product Datasheet leviton-m8300-r.pdf
Receptacle Type Duplex
Resistance Property General Purpose
Standards Ansi, Csa Certified, Federal Specification, Rohs Compliant, Ul Listed
Temp. Rise Max. 30°C After 250 Cycles Ol At 200 Percent Rated Current
Termination Modular
Voltage 125V AC
Voltage Rating 125V AC
Wire Connection Type Modular Wiring
Wire Connection Types Snap In Module

Shipping Info:

Ship weight (kg) 0.09
Ship height (cm)23.5
Ship length (cm)27.31
Ship width (cm)3.89
Country of OriginMX

Documentation:

Datasheet

Product Variants

ProductModelReceptacle TypeWire Connection TypeHousing ColorGroundingColorNema RatingMount Hole Center-to-center HeightCurrent RatingPrice
LEVITON MT163-ILI Receptacle, Decorator Duplex, 5-20R, 20 A, 125V AC, Ivory, 2 Poles, Modular Wiring | CR9HRM 792UN4 MT163-ILIDecorator DuplexModular WiringIvoryGroundedIvoryNEMA WD-1 And NEMA WD-6-20A€73.88
LEVITON 8380-IGI Receptacle, Decorator Duplex, 5-20R, 20 A, 125V AC, Ivory, 2 Poles, Screw Terminals | CR9HRQ 792U48 8380-IGIDecorator DuplexScrew TerminalsIvoryIsolated Ground---20A€159.23
LEVITON 8380-I Receptacle, Decorator Duplex, 5-20R, 20 A, 125V AC, Ivory, 2 Poles, Screw Terminals | CR9HRU 792U47 8380-IDecorator DuplexScrew TerminalsIvoryGrounded---20A€146.22
LEVITON MT163-ILR Receptacle, Decorator Duplex, 5-20R, 20 A, 125V AC, Red, 2 Poles, Modular Wiring | CR9HRY 792UN5 MT163-ILRDecorator DuplexModular WiringRedGroundedRedNEMA WD-1 And NEMA WD-6-20A€73.88
LEVITON MT830-ILI Receptacle, Duplex, 5-20R, 20 A, 125V AC, Ivory, 2 Poles, Modular Wiring | CR9HWJ 792UP0 MT830-ILIDuplexModular WiringIvoryGroundedIvoryNEMA WD-63.3"20A€87.29
LEVITON MT830-IG Receptacle, Duplex, 5-20R, 20 A, 125V AC, Orange, 2 Poles, Modular Wiring | CR9HWX 792UN8 MT830-IGDuplexModular WiringOrangeIsolated GroundOrangeNEMA WD-64.1"20A€65.63
LEVITON MT830-ILR Receptacle, Duplex, 5-20R, 20 A, 125V AC, Red, 2 Poles, Modular Wiring | CR9HXA 792UP1 MT830-ILRDuplexModular WiringRedGroundedRedNEMA WD-63.3"20A€87.29
