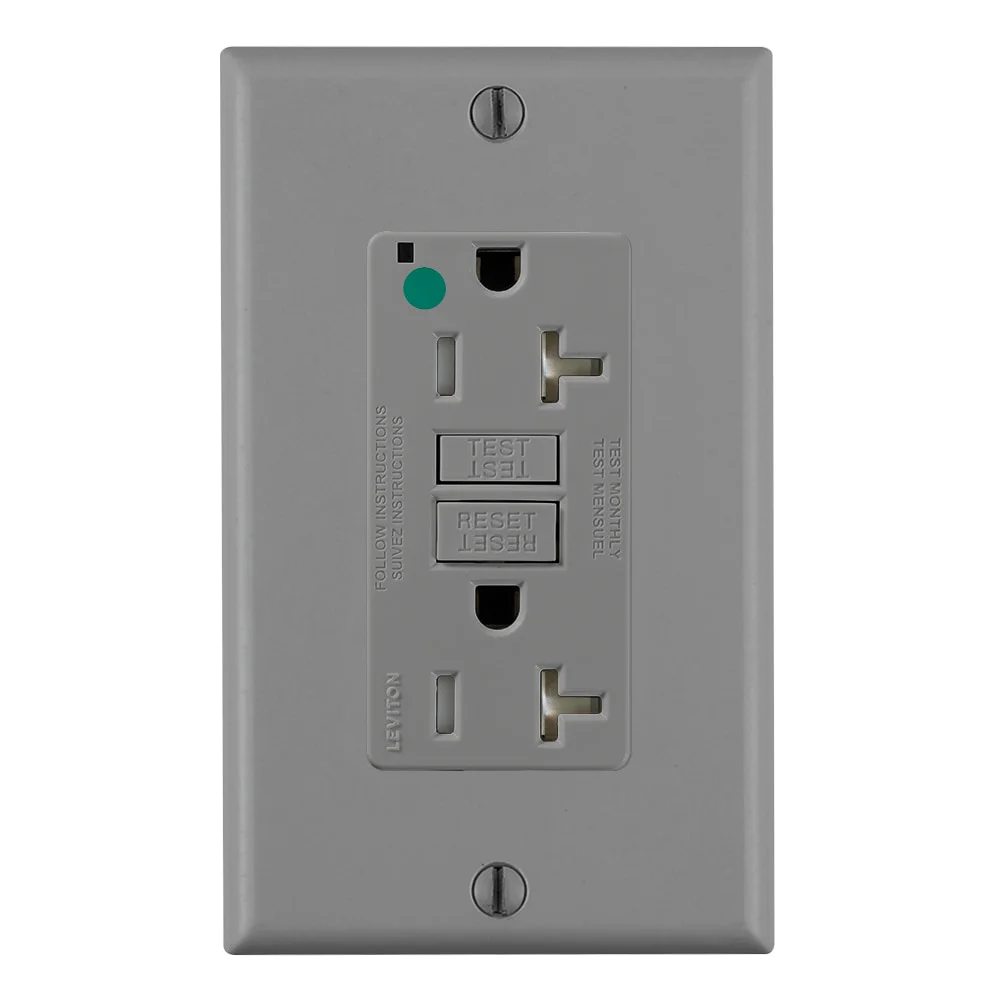

LEVITON GFTR2-HGG Feed Through Self Test Slim Tamper Resistant GFCI Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Gray
Item: CR9HNKModel: GFTR2-HGGCross Ref: 792UJ3
7 In Stock
Ships within 2 days via
5.00% off
€80.33 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Ac Hp Ratings At Rated Voltage | 1 hp |
| Amps | 20A |
| Body Material | Polycarbonate |
| Color | Gray |
| Connection Orientation | Straight |
| Cover Type | No Cover |
| Device Type | Duplex Receptacle Outlet |
| Face Material | PBT |
| Features | Wallplate Included, Tamper Resistant, Power Indication, Self Test |
| Flammability | Rated V-0 Per UL 94 |
| Function | GFCI |
| Gfci | Yes |
| Grade | Extra Heavy Duty Hospital Grade , Hospital |
| Ground Clips Material | Brass |
| Grounding | Grounded , Self Grounding |
| Grounding Screw Finish | Plated |
| Grounding Screw Material | Steel |
| Housing Color | Gray |
| Includes | Wallplate |
| Line Contacts Material | Brass |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Nema Rating | NEMA WD-1 And NEMA WD-6 |
| Nema Receptacle Configuration | NEMA 5-20R |
| Number Of Outlets | 2 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Operating Temp. | -35°C to +66°C |
| Polarized | Yes |
| Product Datasheet | leviton-gfnl1-hg.pdf |
| Receptacle Type | Decorator Duplex |
| Screw Terminal Torque | 14 lbs.-in. to 18 lbs.-in. |
| Self Testing | Yes |
| Short Circuit Current Rating | 10 kA |
| Shutter Mechanism | Delrin Acetal |
| Strap Finish | Galvanized |
| Strap Material | Steel |
| Surge Protection | Yes |
| Terminal Accom. | 14 AWG to 10 AWG Solid Or Stranded |
| Terminal Clamp Material | Brass |
| Terminal Id | Brass Hot, Green Ground, Silver Neutral |
| Terminal Screws Finish | Plated |
| Terminal Screws Material | Steel |
| Termination | Back Or Side Wire |
| Trip Level | Class A, 5 mA Plus Or Minus 1 mA |
| Visual Indicator Lights | Power Connected |
| Voltage | 125V AC |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 15.88 |
| Ship length (cm) | 23.5 |
| Ship width (cm) | 4.29 |
| Country of Origin | CN |
Documentation:
Product Variants
| Product | Model | Housing Color | Grounding | Color | Receptacle Type | Surge Protection | Wire Connection Type | Wire Connection Location | Number Of Poles | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
GFTR2-HGE | Black | Grounded | Black | Decorator Duplex | Yes | Screw Terminals | Back, Side | 2 | €85.21 | |
 |
GFTR2-HG | Brown | Grounded | Brown | Decorator Duplex | Yes | Screw Terminals | Back, Side | 2 | €83.68 | |
 |
GFTR2-HGI | Ivory | Grounded | Ivory | Decorator Duplex | Yes | Screw Terminals | Back, Side | 2 | €84.56 | |
 |
GFTR2-HGT | Light Almond | Grounded | - | Decorator Duplex | Yes | Screw Terminals | Back, Side | 2 | €84.56 | |
 |
GFTR2-HGR | Red | Grounded | Red | Decorator Duplex | Yes | Screw Terminals | Back, Side | 2 | €84.56 | |
 |
GFTR2-HGW | White | Grounded | White | Decorator Duplex | Yes | Screw Terminals | Back, Side | 2 | €84.56 |
