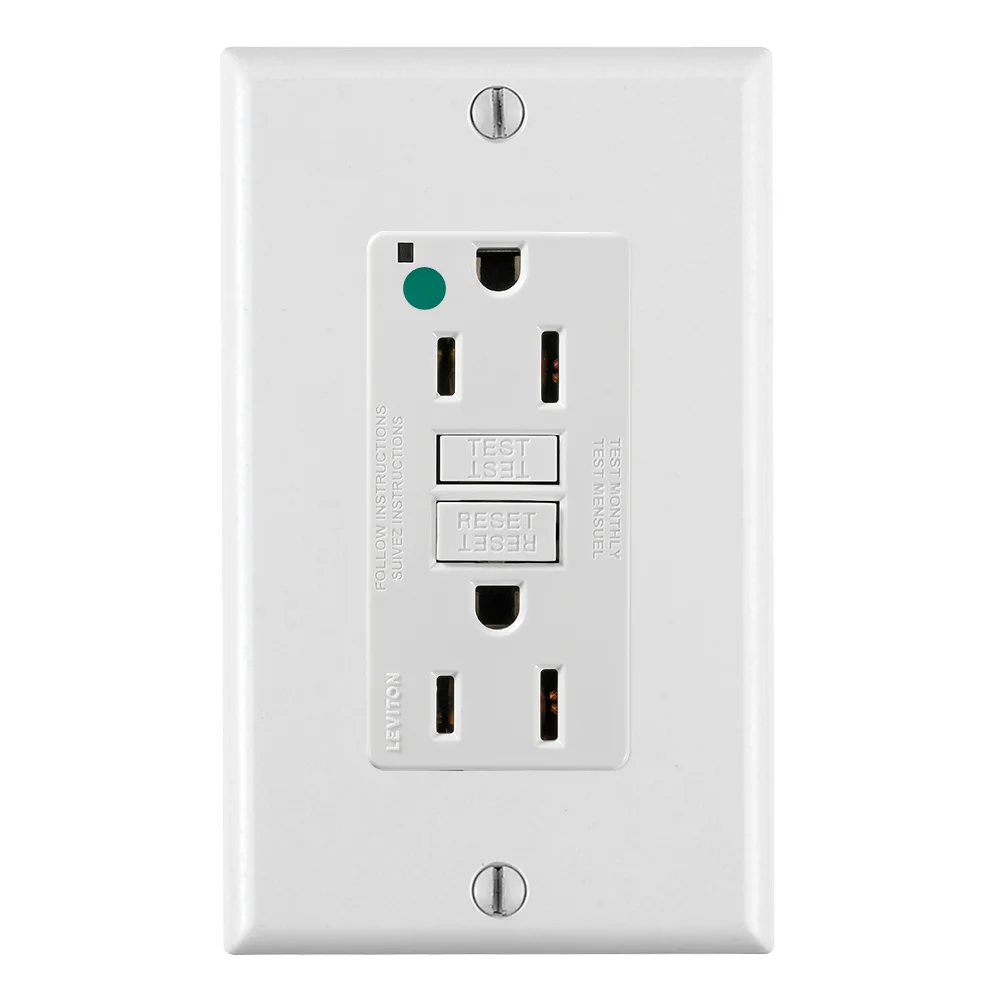

LEVITON GFNT1-HGW Feed Through Non-Tamper Resistant Self-Test GFCI Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White
Item: CR9HMXModel: GFNT1-HGWCross Ref: 792UE6
7 In Stock
Ships within 2 days via
5.00% off
€77.53 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Ac Hp Ratings At Rated Voltage | 1 hp |
| Amps | 15/20A |
| Body Material | Polycarbonate |
| Color | White |
| Connection Orientation | Straight |
| Cover Type | No Cover |
| Current Rating | 15A |
| Device Type | Duplex Receptacle Outlet |
| Face Material | PBT |
| Features | Wallplate Included, Power Indication |
| Flammability | Rated V-0 Per UL 94 |
| Function | GFCI |
| Gfci | Yes |
| Grade | Extra Heavy Duty Hospital Grade , Hospital Grade Fed. Spec. |
| Ground Clips Material | Brass |
| Grounding | Grounded , Self Grounding |
| Grounding Screw Finish | Plated |
| Grounding Screw Material | Steel |
| Housing Color | White |
| Includes | Power Indication, Wallplate |
| Includes Mounting Hardware | Yes |
| Line Contacts Material | Brass |
| Mount Hole Center-to-center Height | 3.3" |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Nema Rating | NEMA WD-1 And NEMA WD-6 |
| Nema Receptacle Configuration | NEMA 5-15R |
| Number Of Outlets | 2 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Operating Temp. | -35°C to +66°C |
| Phase | Single |
| Polarized | Yes |
| Product Datasheet | leviton-gfnl1-hg.pdf |
| Receptacle Type | Decorator Duplex |
| Resistance Property | General Purpose |
| Screw Terminal Torque | 14 lbs.-in. to 18 lbs.-in. |
| Self Testing | Yes |
| Short Circuit Current Rating | 10 kA |
| Strap Finish | Galvanized |
| Strap Material | Steel |
| Surge Protection | Yes |
| Terminal Accom. | 14 AWG to 10 AWG Solid Or Stranded |
| Terminal Clamp Material | Brass |
| Terminal Id | Brass Hot, Green Ground, Silver Neutral |
| Terminal Screws Finish | Plated |
| Terminal Screws Material | Steel |
| Termination | Back Or Side Wire |
| Trip Level | Class A, 5 mA Plus Or Minus 1 mA |
| Ul 94 Flammability Rating | V-0 |
| Visual Indicator Lights | Power Connected |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
Shipping Info:
| Ship weight (kg) | 0.19 |
| Ship height (cm) | 15.88 |
| Ship length (cm) | 23.5 |
| Ship width (cm) | 4.29 |
| Country of Origin | CN |
Documentation:
Product Variants
| Product | Model | Housing Color | Grounding | Mount Hole Center-to-center Height | Amps | Color | Receptacle Type | Surge Protection | Current Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
GFNT1-HGE | Black | Grounded | 3.8" | 15/20A | Black | Decorator Duplex | Yes | 15A | €82.17 | |
 |
GFNT1-HG | Brown | Grounded | 3.8" | 15/20A | Brown | Decorator Duplex | Yes | 15A | €82.17 | |
 |
GFNT1-HGG | Gray | Grounded | 3.3" | 15/20A | Gray | Decorator Duplex | Yes | 15A | €81.93 | |
 |
GFNT1-HGI | Ivory | Grounded | 3.3" | 15/20A | Ivory | Decorator Duplex | Yes | 15A | €82.92 | |
 |
GFNT1-HGT | Light Almond | Grounded | 3.3" | 15A | - | Decorator Duplex | Yes | 15A | €80.25 | |
 |
GFNT1-HGR | Red | Grounded | 3.3" | 15/20A | Red | Decorator Duplex | Yes | 15A | €82.92 |
