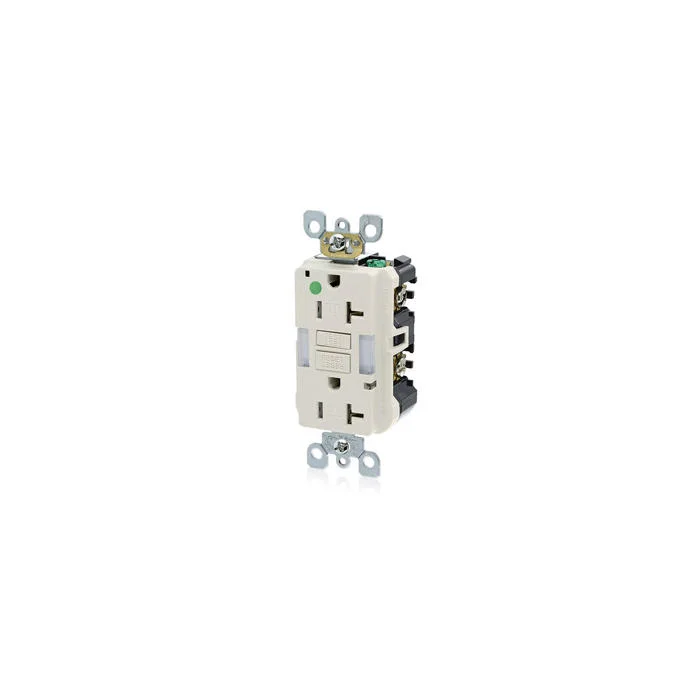

LEVITON GFNL2-HGT Duplex Self-Test Tamper Resistant GFCI Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Light Almond, Polycarbonate
Item: CR9HNXModel: GFNL2-HGTCross Ref: 792UD2
7 In Stock
Ships within 2 days via
5.00% off
€109.78 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Ac Hp Ratings At Rated Voltage | 1 hp |
| Amps | 20A |
| Body Material | Polycarbonate |
| Color | Light Almond |
| Connection Orientation | Straight |
| Cover Type | No Cover |
| Current Rating | 20A |
| Device Type | Duplex Receptacle Outlet |
| Face Material | PBT |
| Face Plate Height | 2.7" |
| Features | Tamper Resistant, Power Indication |
| Flammability | Rated V-0 Per UL 94 |
| Function | GFCI |
| Gfci | Yes |
| Grade | Heavy Duty Hospital Grade , Hospital Grade Fed. Spec. |
| Ground Clips Material | Brass |
| Grounding | Grounded , Self Grounding |
| Grounding Screw Finish | Plated |
| Grounding Screw Material | Steel |
| Housing Color | Light Almond |
| Includes | Strap Material |
| Includes Mounting Hardware | Yes |
| Line Contacts Material | Brass |
| Mount Hole Center-to-center Height | 1.3" |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Nema Rating | NEMA WD-1 And NEMA WD-6 |
| Nema Receptacle Configuration | NEMA 5-20R |
| Number Of Outlets | 2 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Operating Temp. | -35°C to +66°C |
| Phase | Single |
| Polarized | Yes |
| Product Datasheet | leviton-gfnl1-hg.pdf |
| Receptacle Type | Decorator Duplex |
| Resistance Property | General Purpose |
| Screw Terminal Torque | 14 lbs.-in. to 18 lbs.-in. |
| Self Testing | Yes |
| Short Circuit Current Rating | 10 kA |
| Shutter Mechanism | Delrin Acetal |
| Special Resistance Properties | Tamper Resistant |
| Strap Finish | Galvanized |
| Strap Material | Steel |
| Tamper Resistant | Yes |
| Terminal Accom. | 14 AWG to 10 AWG Solid Or Stranded |
| Terminal Clamp Material | Brass |
| Terminal Id | Brass Hot, Green Ground, Silver Neutral |
| Terminal Screws Finish | Plated |
| Terminal Screws Material | Steel |
| Termination | Back Or Side Wire |
| Trip Level | Class A, 5 mA Plus Or Minus 1 mA |
| Ul 94 Flammability Rating | V-0 |
| Visual Indicator Lights | Power Connected |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 12.7 |
| Ship length (cm) | 22.23 |
| Ship width (cm) | 4.29 |
| Country of Origin | CN |
Documentation:
Product Variants
| Product | Model | Housing Color | Grade | Color | Grounding | Face Plate Height | Mount Hole Center-to-center Height | Receptacle Type | Wire Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
GFNL2-HGE | Black | Hospital Grade Fed. Spec. | Black | Grounded | 2.7" | 1.3" | Decorator Duplex | Screw Terminals | €100.61 | |
 |
GFNL2-HGG | Gray | Hospital Grade Fed. Spec. | Gray | Grounded | 2.7" | 1.3" | Decorator Duplex | Screw Terminals | €109.19 | |
 |
GFNL2-HGI | Ivory | Hospital Grade Fed. Spec. | Ivory | Grounded | 2.7" | 1.3" | Decorator Duplex | Screw Terminals | €103.03 | |
 |
GFNL2-HGR | Red | Hospital | Red | Grounded | 2.71" | 1.31" | Decorator Duplex | Screw Terminals | €106.37 | |
 |
GFNL2-HGW | White | Hospital Grade Fed. Spec. | White | Grounded | 2.7" | 1.3" | Decorator Duplex | Screw Terminals | €101.97 |
