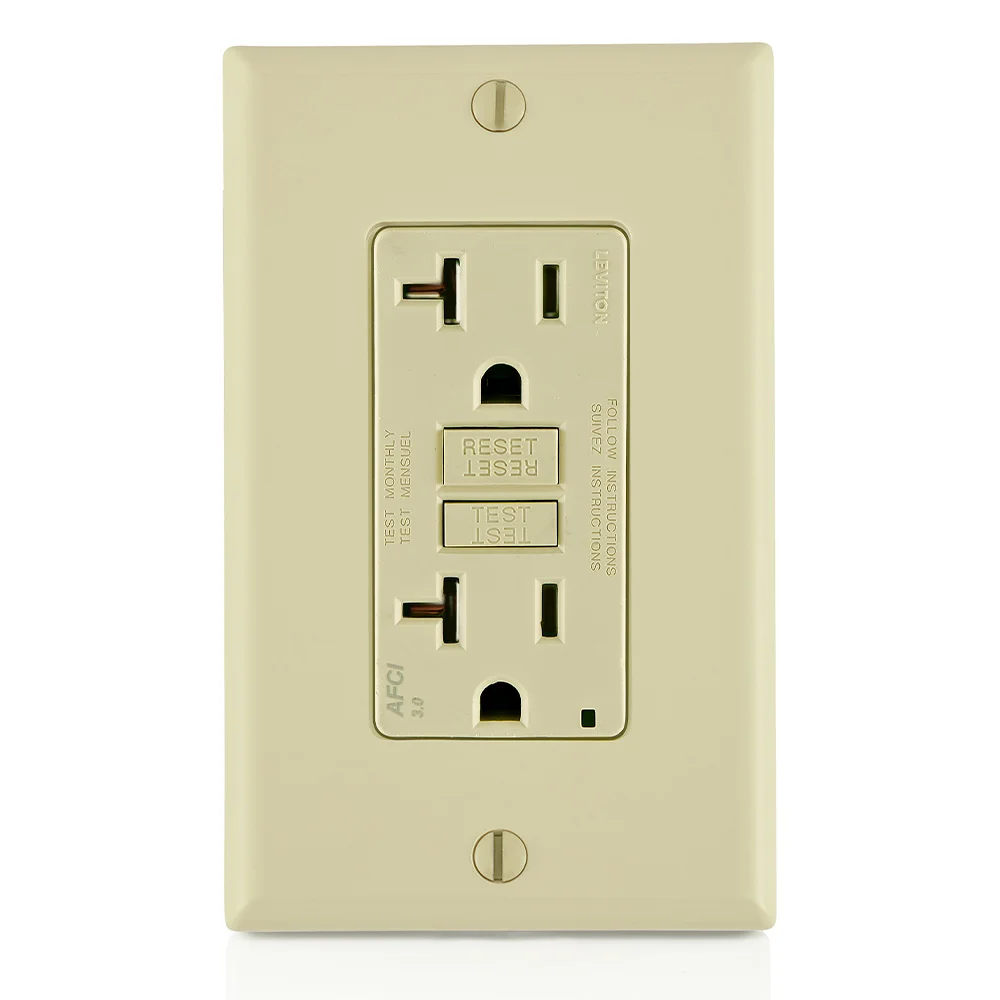

LEVITON AFTR2-I Duplex AFCI Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory
Item: CR9HRRModel: AFTR2-ICross Ref: 792U79
7 In Stock
Ships within 2 days via
5.00% off
€69.50 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Ac Hp Ratings At Rated Voltage | 1 hp |
| Amps | 20A |
| Body Material | Polycarbonate |
| Clamps Material | Brass |
| Color | Ivory |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Cover Type | No Cover |
| Dielectric Voltage | Withstands 1250V AC Per UL 1699A |
| Face Material | Thermoplastic |
| Features | Tamper Resistant |
| Flammability | Rated V-2 Per UL 94 |
| Gfci | Yes |
| Grounding | Grounded , Self Grounding |
| Grounding Screw Finish | Plated |
| Grounding Screw Material | Steel |
| Housing Color | Ivory |
| Hp | 1 hp |
| Includes | Screws, Self Grounding Clip |
| Line Contacts Material | Brass |
| Line Contacts Style | Triple Wipe |
| Max. Operating Temp. | 66°C |
| Min. Wire Size | 14 AWG |
| Mounting Type | Flush |
| Nema Rating | NEMA 5-20R |
| Nema Receptacle Configuration | NEMA 5-20R |
| Number Of Outlets | 2 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Operating Temp. | -35°C to +66°C |
| Polarized | Yes |
| Product Datasheet | leviton-aftr2-w.pdf |
| Receptacle Type | Decorator Duplex |
| Reset Type | Automatic |
| Reverse Service | Yes |
| Screw Terminal Torque | 14 lbs.-in. to 18 lbs.-in. |
| Self Testing | No |
| Series | AFTR2 Series |
| Strap Finish | Galvanized |
| Strap Material | Steel |
| Surge Protection | Yes |
| Temp. Rise | Max. 30°C After 250 Cycles Ol At 200 Percent Rated Current |
| Terminal Accom. | 14 AWG to 10 AWG |
| Terminal Id | Brass Hot, Green Ground, Silver Neutral |
| Terminal Screws Finish | Plated |
| Terminal Screws Material | Steel |
| Termination | Back And Side |
| Type | Duplex Receptacle |
| Visual Indicator Lights | Power Connected |
| Voltage | 125V AC |
| Wall Plate Material | Nylon |
| Wallplate | Included |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
| Yoke Finish | Zinc Plated |
| Yoke Material | Steel |
Shipping Info:
| Ship weight (kg) | 0.17 |
| Ship height (cm) | 15.88 |
| Ship length (cm) | 23.5 |
| Ship width (cm) | 10.69 |
| Country of Origin | CN |
Documentation:
Product Variants
| Product | Model | Surge Protection | Housing Color | Current Rating | Nema Receptacle Configuration | Gfci | Grounding | Amps | Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
AFTR1-GY | No | Gray | 15A | NEMA 5-15R | No | Grounded | 15A | Gray | €79.70 | |
 |
AFTR1-I | Yes | Ivory | - | NEMA 5-15R | Yes | Grounded | 15A | Ivory | €79.70 | |
 |
AFTR1-T | No | Light Almond | 15A | NEMA 5-15R | No | Grounded | 15A | Light Almond | €79.70 | |
 |
AFTR2-E | No | Black | 20A | NEMA 5-20R | No | Grounded | 20A | Black | €84.93 | |
 |
AFTR2 | No | Brown | 20A | NEMA 5-20R | No | Grounded | 20A | Brown | €100.45 | |
 |
AFTR2-GY | No | Gray | 20A | NEMA 5-20R | No | Grounded | 20A | Gray | €83.09 | |
 |
AFTR2-T | No | Light Almond | 20A | NEMA 5-20R | No | Grounded | 20A | Light Almond | €83.09 |
