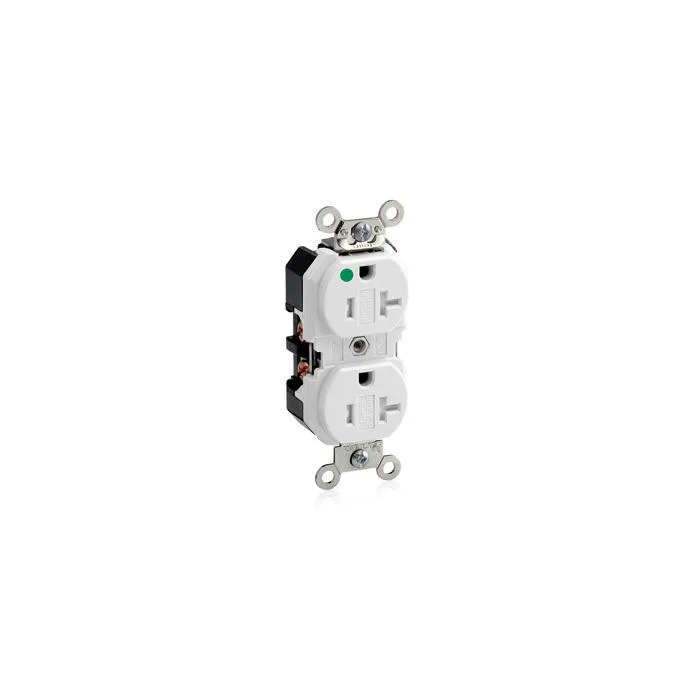

LEVITON 8300-SGW Extra Heavy Duty Traditional Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White
Item: CR9HXQModel: 8300-SGWCross Ref: 792U36
7 In Stock
Ships within 2 days via
5.00% off
€52.06 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Amps | 20A |
| Body Material | Nylon |
| Clamp Nuts Finish | Nickel Plated |
| Clamp Nuts Material | Brass |
| Color | White |
| Connection Orientation | Straight |
| Cover Type | No Cover |
| Current Limiting | Full Rated Current |
| Current Rating | 20A |
| Device Type | Duplex Receptacle Outlet |
| Dielectric Voltage | Withstands 2000V Per UL498 |
| Face Material | Nylon |
| Features | Tamper Resistant, Smooth Face |
| Flammability | Rated V-2 Per UL 94 |
| Gfci | No |
| Grade | Extra Heavy Duty Hospital Grade , Hospital Grade Fed. Spec. |
| Ground Clips Material | Brass |
| Grounding | Grounded , Self Grounding |
| Grounding Screw Finish | Nickel Plated |
| Grounding Screw Material | Brass |
| Grounding Screw Size | #8-32 |
| Housing Color | White |
| Hp Rating | 1 hp |
| Line Contacts Finish | Nickel Plated |
| Line Contacts Style | Triple Wipe |
| Line Contacts Thickness | 0.031" |
| Mounting Type | Flush |
| Nema Rating | NEMA 5-20R |
| Nema Receptacle Configuration | NEMA 5-20R |
| Number Of Outlets | 2 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Operating Temp. | -40°C to +60°C |
| Phase | Single |
| Polarized | Yes |
| Product Datasheet | leviton-5410-w.pdf |
| Receptacle Type | Duplex |
| Resistance Property | General Purpose |
| Screw Terminal Torque | 14 lbs.-in. to 18 lbs.-in. |
| Special Resistance Properties | Tamper Resistant |
| Standards | Ansi C73, Csa C22.2 No. 42 File E152105, Rohs Compliant, Ul 498Hg File E13399, Ul Federal Specification Wc-596 File E13399 |
| Strap Finish | Nickel Plated |
| Strap Material | Brass |
| Temp. Rise | Max. 30°C After 250 Cycles Ol At 200 Percent Rated Current |
| Terminal Accom. | 14 AWG to 10 AWG |
| Terminal Id | Brass Hot, Green Ground, White Neutral |
| Terminal Screws Finish | Nickel Plated |
| Terminal Screws Material | Brass |
| Terminal Screws Size | #10-32 |
| Termination | Back Or Side Wire |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
| Yoke Finish | Nickel Plated |
| Yoke Material | Brass |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 23.81 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 3.84 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Housing Color | Color | Nema Rating | Grounding | Receptacle Type | Wire Connection Type | Wire Connection Location | Number Of Poles | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
8300-SG | Brown | Brown | NEMA WD-1 And NEMA WD-6 | Grounded | Duplex | Screw Terminals | Back, Side | 2 | €58.48 | |
 |
8300-SGI | Ivory | Ivory | NEMA WD-1 And NEMA WD-6 | Grounded | Duplex | Screw Terminals | Back, Side | 2 | €58.48 | |
 |
8300-SGR | Red | Red | NEMA WD-1 And NEMA WD-6 | Grounded | Duplex | Screw Terminals | Back, Side | 2 | €50.15 |
