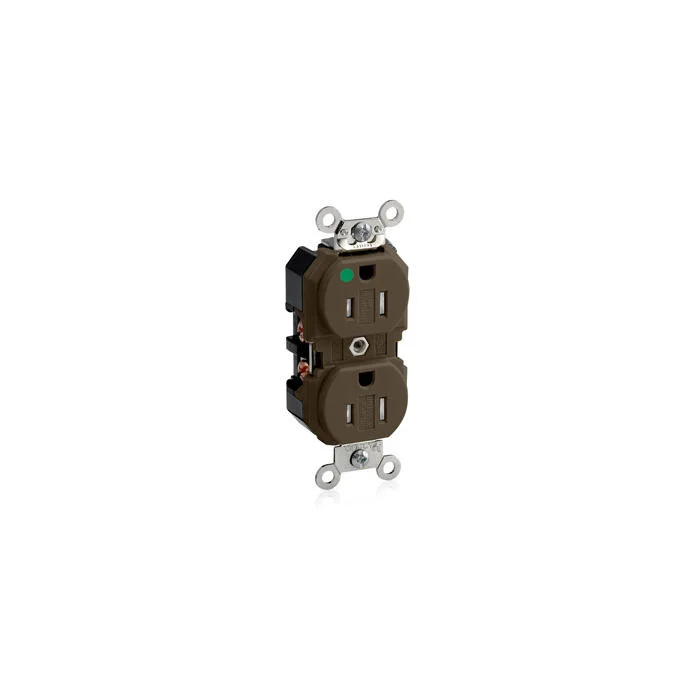

LEVITON 8200-SG Receptacle, Duplex, 5-15R, 15 A, 125V AC, Brown, 2 Poles, Screw Terminals | CR9HTW 792U02

LEVITON 8200-SG Duplex Extra Heavy Duty Tamper Resistant Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Brown

Item: CR9HTWModel: 8200-SGCross Ref: 792U02
7 In Stock
Color

Ships within 2 days via

€39.90
5.00% off
€37.91 /unit
This product can only be shipped in multiples of 50
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Receptacle
Amps 15A
Amps Limiting Full Rated Current
Body Material Nylon
Clamp Nuts Finish Zinc Plated
Clamp Nuts Material Steel
Color Brown
Connection Orientation Straight
Cover Type No Cover
Device Type Duplex Receptacle Outlet
Dielectric Voltage Withstands 2000V Per UL498
Face Material Nylon
Face Plate Height 2 4/5"
Features Tamper Resistant, Smooth Face
Flammability Rated V-2 Per UL 94
Gfci No
Grade Extra Heavy Duty Hospital Grade , Hospital Grade Fed. Spec
Ground Clips Finish Nickel Plated
Ground Clips Material Brass
Grounding Grounded , Self Grounding
Grounding Screw Finish Plated
Grounding Screw Material Steel
Housing Color Brown
Hp 1/2 hp
Included Mounting Hardware Yes
Line Contacts Finish Nickel Plated
Line Contacts Material Phosphor Bronze
Mount Hole Center To Center Height 3.3"
Mounting Hardware Included Yes
Mounting Type Flush
Nema Rating NEMA WD-1 And NEMA WD-6
Nema Receptacle Configuration NEMA 5-15R
No. Of Outlets 2
No. Of Poles 2
No. Of Wires 3
Operating Temp. -40°C to +60°C
Phase 1
Polarized Yes
Product Datasheet leviton-5410-w.pdf
Receptacle Type Duplex
Resistance Property General Purpose
Screw Terminal Torque 14 lbs.-in. to 18 lbs.-in.
Shutter Mechanism Delrin Acetal
Special Resistance Properties Tamper Resistant
Strap Finish Nickel Plated
Strap Material Steel
Temp. Rise Max. 30°C After 250 Cycles Ol At 200 Percent Rated Current
Terminal Accom. 14 AWG to 10 AWG
Terminal Inside Dia. Brass Hot, Green Ground, Silver Neutral
Terminal Screws Finish Plated
Terminal Screws Material Brass
Termination Back Or Side Wire
Torque 14 lbs.-in. to 16 lbs.-in.
Ul 94 Flammability Rating V-2
Voltage 125V AC
Wire Connection Location Back, Side
Wire Connection Type Screw Terminal

Shipping Info:

Ship weight (kg) 0.45
Ship height (cm)23.81
Ship length (cm)30.48
Ship width (cm)3.94
Country of OriginMX

Documentation:

Datasheet

Product Variants

ProductModelHousing ColorColorGroundingReceptacle TypePhaseWire Connection TypeWire Connection LocationNema RatingPrice
LEVITON 8200-SGG Receptacle, Duplex, 5-15R, 15 A, 125V AC, Gray, 2 Poles, Screw Terminals | CR9HTZ 792U03 8200-SGGGrayGrayGroundedDuplex1Screw TerminalBack, SideNEMA WD-1 And NEMA WD-6€39.90
LEVITON 8200-SGI Receptacle, Duplex, 5-15R, 15 A, 125V AC, Ivory, 2 Poles, Screw Terminals | CR9HUE 792U04 8200-SGIIvoryIvoryGroundedDuplex1Screw TerminalBack, SideNEMA WD-1 And NEMA WD-6€47.89
LEVITON 8200-SGW Receptacle, Duplex, 5-15R, 15 A, 125V AC, White, 2 Poles, Screw Terminals | CR9HUR 792U06 8200-SGWWhiteWhiteGroundedDuplex1Screw TerminalBack, SideNEMA WD-1 And NEMA WD-6€47.89
LEVITON 8200-SGR Receptacle, Duplex, 5-15R, 15 A, 125V AC, Red, 2 Poles, Screw Terminals | CR9JBY 792U05 8200-SGRRedRedGroundedDuplex1Screw TerminalBack, SideNEMA WD-1 And NEMA WD-6€55.05
