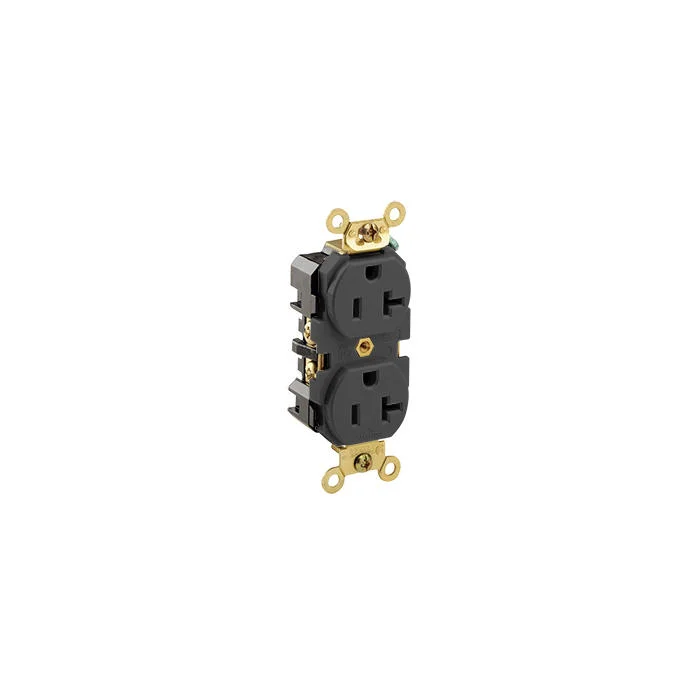

LEVITON 5362-E Receptacle, Duplex, 5-20R, 125V AC, 20 A, 2 Poles, Black, Screw Terminals, Std Protection | CR9HVA 792TR5

LEVITON 5362-E Straight Blade Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Black, Thermoplastic, Back and Side Wired

Item: CR9HVAModel: 5362-ECross Ref: 792TR5
7 In Stock
Color

Ships within 2 days via

€40.39
5.00% off
€38.37 /unit
This product can only be shipped in multiples of 50
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Receptacle
Amps 20A
Body Material Thermoplastic Nylon
Clamp Nuts Finish Zinc Plated
Clamp Nuts Material Steel
Color Black
Connection Orientation Straight
Contact Material Brass
Cover Type No Cover
Current Limiting Full Rated Current
Current Rating 20A
Device Type Duplex Receptacle Outlet
Dielectric Voltage Withstands 2000V Per UL498
Face Material Thermoplastic Nylon
Face Plate Height 2 4/5"
Face Plate Width 1.5"
Features Smooth Face
Flammability Rated V-2 Per UL 94
Gfci No
Grade Extra Heavy Duty Industrial Specification Grade , Federal Specification
Ground Clips Material Brass
Grounding Grounded , Self Grounding
Grounding Screw Material Brass
Grounding Screw Size #8-32
Housing Color Black
Includes Grounding Clip
Includes Mounting Hardware Yes
Line Contacts Material Brass
Line Contacts Style Triple Wipe
Max. Operating Temp. 60°C
Max. Wire Size 10 AWG
Maximum Operating Temperature 140°F
Min. Operating Temp. -40°C
Min. Wire Size 14 AWG
Minimum Operating Temperature -40°F
Mount Hole Center-to-center Height 3.3"
Mounting Hardware Included Yes
Mounting Type Flush
Nema Enclosure Rating Not Rated
Nema Rating NEMA WD-1 And NEMA WD-6
Nema Receptacle Configuration NEMA 5-20R
Number Of Outlets 2
Number Of Poles 2
Number Of Wires 3
Operating Temp. -40°C to +60°C
Overall Depth 1.1"
Phase Single
Polarized Yes
Receptacle Type Duplex
Screw Terminal Torque 14 lbs.-in. to 18 lbs.-in.
Signal & Power Protection Standard Protection
Standards Ansi C73, Csa C22.2 No. 42 File E152105, Nema Wd-6, Nom 057 Certified, Ul 498 File E13399
Strap Material Brass
Temp. Rise Max. 30°C After 250 Cycles Ol At 200 Percent Rated Current
Terminal Accom. 14 AWG to 10 AWG
Terminal Id Brass Hot, Green Ground, Silver Neutral
Terminal Screws Brass 10-32
Termination Back Or Side Wire
Ul 94 Flammability Rating V-2
Voltage 125V AC
Voltage Rating 125V AC
Wire Connection Location Back, Side
Wire Connection Type Screw Terminals
Yoke Material Brass

Shipping Info:

Ship weight (kg) 0.45
Ship height (cm)22.23
Ship length (cm)31.12
Ship width (cm)3.51
Country of OriginMX

Product Variants

ProductModelHousing ColorColorGroundingReceptacle TypeCurrent RatingVoltage RatingPhaseWire Connection TypePrice
LEVITON 5362-GY Receptacle, Duplex, 5-20R, 125V AC, 20 A, 2 Poles, Gray, Screw Terminals, Std Protection | CR9HVE 792TR6 5362-GYGrayGraySelf GroundingDuplex20A125V ACSingleScrew Terminals€36.04
LEVITON 5362-I Receptacle, Duplex, 5-20R, 125V AC, 20 A, 2 Poles, Ivory, Screw Terminals, Std Protection | CR9HVG 792TR7 5362-IIvoryIvoryGroundedDuplex20A125V ACSingleScrew Terminals€39.87
LEVITON 5362-R Receptacle, Duplex, 5-20R, 125V AC, 20 A, 2 Poles, Red, Screw Terminals, Std Protection | CR9HVL 792TT5 5362-RRedRedGroundedDuplex20A125V ACSingleScrew Terminals€37.38

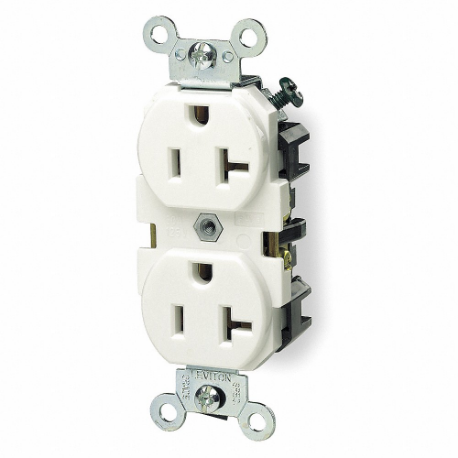

LEVITON 5362-W Receptacle, Duplex, 5-20R, 125V AC, 20 A, 2 Poles, White, Screw Terminals, Std Protection | CR9HVN 792TT8 5362-WWhiteWhiteGroundedDuplex20A125V ACSingleScrew Terminals€39.67
