LEVITON 5361-GY Straight Blade Single Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Gray, Thermoplastic
Item: CR9HZHModel: 5361-GYCross Ref: 792TP9
7 In Stock
Ships within 2 days via
5.00% off
€37.72 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Ac Hp Ratings At Rated Voltage | 1 hp |
| Amps | 20A |
| Body Material | Thermoplastic Nylon |
| Clamp Nuts Finish | Galvanized |
| Clamp Nuts Material | Steel |
| Color | Gray |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Cover Type | No Cover |
| Current Limiting | Full Rated Current |
| Current Rating | 20A |
| Depth | 1.06" |
| Device Type | Single Receptacle Outlet |
| Dielectric Voltage | Withstands 2000V Per UL498 |
| Face Material | Thermoplastic Nylon |
| Face Plate Width | 1.3" |
| Features | Smooth Face |
| Flammability | Rated V-2 Per UL 94 |
| Gfci | No |
| Grade | Federal Specification , Heavy Duty Industrial Specification Grade |
| Ground Clips Material | Brass |
| Grounding | Self Grounding |
| Grounding Screw Finish | Plated |
| Grounding Screw Material | Steel |
| Housing Color | Gray |
| Hp | 1 hp |
| Includes | Isolated Ground |
| Includes Mounting Hardware | Yes |
| Line Contacts Material | Brass |
| Line Contacts Style | Triple Wipe |
| Max. Operating Temp. | 60°C |
| Maximum Operating Temperature | 140°F |
| Maximum Wire Size | 10 AWG |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 14 AWG |
| Minimum Operating Temperature | -40°F |
| Mount Hole Center-to-center Height | 3.3" |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Nema Enclosure Rating | Not Rated |
| Nema Rating | NEMA WD 1 And NEMA WD 6 |
| Nema Receptacle Configuration | NEMA 5-20R |
| Number Of Outlets | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Operating Temp. | -40°C to +60°C |
| Overall Depth | 1.1" |
| Phase | Single |
| Polarized | Yes |
| Product Datasheet | leviton-5361-gy.pdf |
| Receptacle Type | Single |
| Screw Terminal Torque | 14 lbs.-in. to 18 lbs.-in. |
| Signal & Power Protection | Standard Protection |
| Standards | Ansi C73, Csa C22.2 No. 42 File E152105, Nom 057 Certified, Ul 498 File E13399, Ul Federal Specification Wc-596 File E13399 |
| Strap Finish | Zinc Plated |
| Strap Material | Steel |
| Temp. Rise | Max. 30°C After 250 Cycles Ol At 200 Percent Rated Current |
| Terminal Accom. | 14 AWG to 10 AWG |
| Terminal Id | Brass Hot, Green Ground, Silver Neutral |
| Terminal Screws Finish | Plated |
| Terminal Screws Material | Brass |
| Termination | Back Or Side Wire |
| Torque Range | 14 lbs.-in. to 16 lbs.-in. |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 22.23 |
| Ship length (cm) | 31.12 |
| Ship width (cm) | 3.51 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Housing Color | Color | Grounding | Mount Hole Center-to-center Height | Body Material | Receptacle Type | Wire Connection Type | Wire Connection Location | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

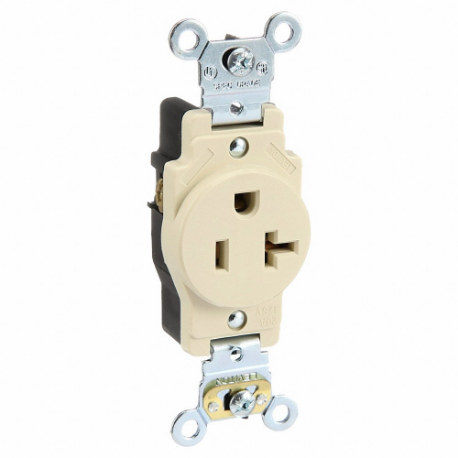

5361-I | Ivory | Ivory | Grounded | 3.3" | Thermoplastic Nylon | Single | Screw Terminals | Back, Side | €41.61 | |
 |
5361-R | Red | Red | Grounded | 3 7/25" | Nylon | Single | Screw Terminals | Back, Side | €40.07 | |
 |
5361-W | White | White | Grounded | 3.3" | Thermoplastic Nylon | Single | Screw Terminals | Back, Side | €39.73 |
