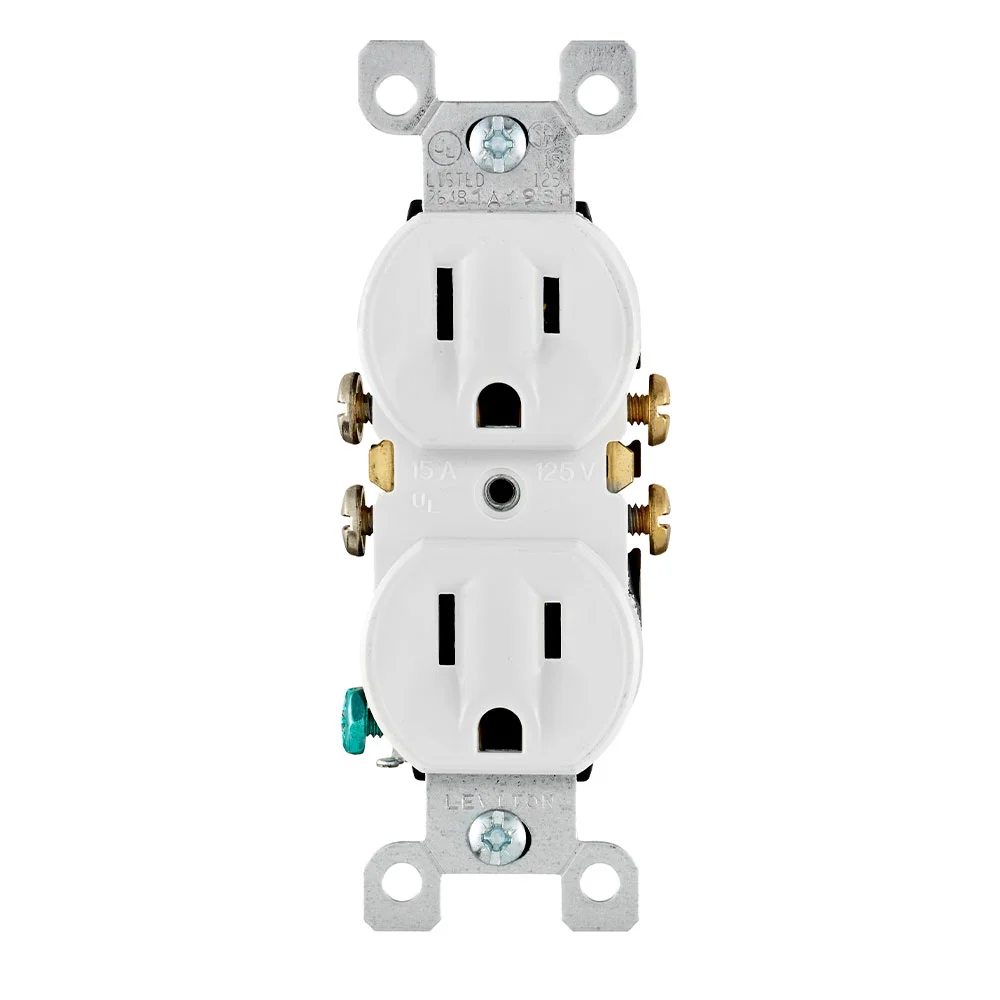

LEVITON 5320-WCP Straight Blade Duplex Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White, Thermoplastic
Item: CR9HUVModel: 5320-WCPCross Ref: 792TN7
7 In Stock
Ships within 2 days via
5.00% off
€2.44 /unit
This product can only be shipped in multiples of 200Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Amps | 15A |
| Body Material | Thermoplastic |
| Color | White |
| Connection Orientation | Straight |
| Cover Type | No Cover |
| Face Material | Thermoplastic |
| Face Plate Height | 2 4/5" |
| Face Plate Width | 1.3" |
| Features | All Screws Backed Out |
| Gfci | No |
| Grade | Federal Specification |
| Grounding | Grounded , Grounding |
| Housing Color | White |
| Housing Material | Thermoplastic |
| Included | Strap Material |
| Included Mounting Hardware | Yes |
| Mount Hole Center To Center Height | 3.3" |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Nema Enclosure Rating | Not Rated |
| Nema Rating | NEMA 5-15R |
| Nema Receptacle Configuration | NEMA 5-15R |
| No. Of Outlets | 2 |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Overall Depth | 0.9" |
| Phase | 1 |
| Polarized | No |
| Product Datasheet | leviton-5320-wcp.pdf |
| Receptacle Type | Duplex |
| Standards | Class 6233-01, Csa C22.2 No. 42 File E152105, Ul 498 File E13399 |
| Strap Material | Steel |
| Terminal Accom. | Side Wiring Accepts #10, #12 And #14 AWG Copper (CU) Or #10 And #12 Copper Clad (CC) Wire, Quickwire Push-In Terminals Accept #14 AWG Solid Copper (CU) Wire Only |
| Termination | Quickwire Push In And Side |
| Torque | 14 lbs.-in. to 18 lbs.-in. |
| Type | Duplex Receptacle |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125V AC |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminal |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 27.47 |
| Ship length (cm) | 48.26 |
| Ship width (cm) | 10.67 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Wire Connection Location | Housing Color | Color | Grounding | Max. Operating Temp. | Receptacle Type | Phase | Wire Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

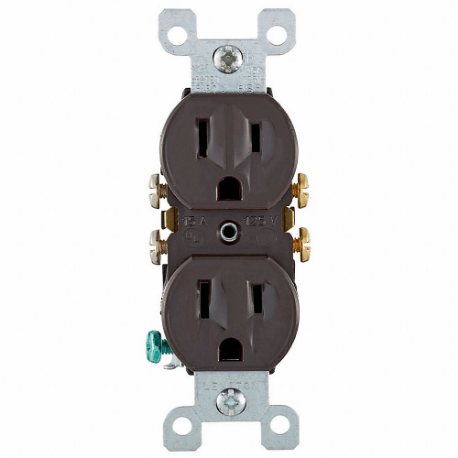

5320-CP | Side | Brown | Brown | Grounded | 140°F | Duplex | 1 | Screw Terminal | €2.38 |
