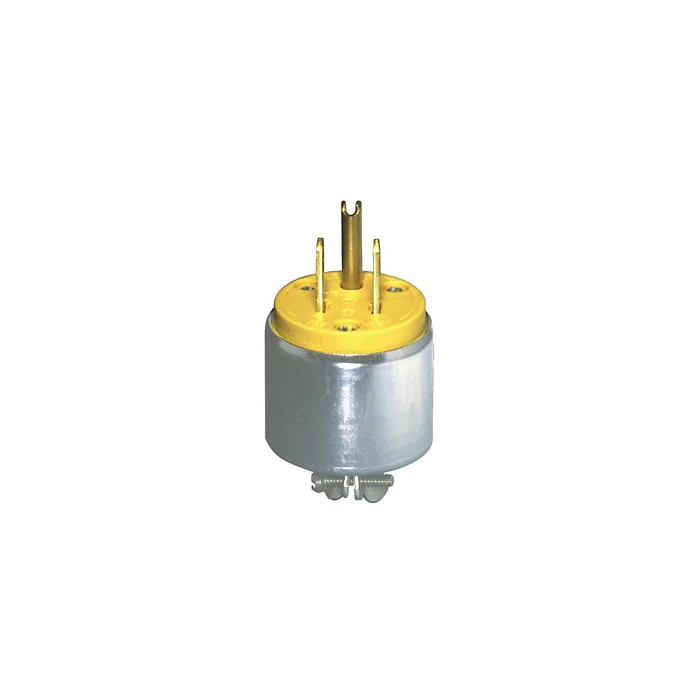

LEVITON 515PA Armoured Cable Mount Grounding Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
Item: CR9HJKModel: 515PACross Ref: 792TJ8
7 In Stock
Ships within 2 days via
5.00% off
€10.54 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Plug |
| Amps | 15A |
| Amps Interrupting | Certified For Current Interrupting At Full Rated Current |
| Assembly Screws Finish | Zinc Plated |
| Assembly Screws Material | Steel |
| Blade Material | Brass |
| Blades/contacts | Brass |
| Body Length | 1.89" |
| Body Material | PVC, Steel |
| Color | Yellow |
| Connection Orientation | Straight |
| Cord Range | 0.245" to 0.655" |
| Dielectric Voltage | Withstands 2000V Per UL498 |
| Face Dia. | 1.38" |
| Flammability | Rated V-2 Per UL 94 |
| For Max. Cable Dia. | 0.655" |
| For Min. Cable Dia. | 0.245" |
| Grounding | Grounded , Grounding |
| Housing Color | Yellow |
| Housing Material | Pvc, Steel |
| Hp | 1/2 hp |
| Ip Rating | Not Rated |
| Max. Operating Temp. | 140°F , 60°C |
| Max. Wire Size | 12 AWG |
| Min. Operating Temp. | -40°C , -40°F |
| Min. Wire Size | 18 AWG |
| Nema Plug Configuration | 5-15P |
| Nema Rating | NEMA WD-6 |
| No. Of Blades | 3 |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Operating Temp. | -40°C to +60°C |
| Outside Dia. | 1.55" |
| Phase | 1 |
| Polarized | No |
| Standards | Ansi C73, Csa C22.2 No. 42 File Lr-406, Nema Wd-6, Nom 057 Certified, Rohs Compliant, Ul 498 File E13393 |
| Temp. Rise | Max. 30°C After 50 Cycles Ol At 150 Percent Rated Current |
| Terminal Accom. | 18 AWG to 12 AWG |
| Terminal Inside Dia. | Brass Hot, Green Ground, Silver Neutral |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125V AC |
| Wire Connection Type | Screw Terminal |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 22.86 |
| Ship length (cm) | 23.81 |
| Ship width (cm) | 3.94 |
| Country of Origin | MX |
Product Variants
| Product | Model | Amps | Voltage | Wiring Style | Nema Plug Configuration | Connection Orientation | Housing Color | Polarized | Grounding | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
275-E | 30/50A | 125/250V AC | Standard | 14-30P, 14-50P | Angled | Black | No | Grounded | 1 | €62.99 | |
 |
931-E | 30/50A | 250V AC | Standard | 6-30P, 6-50P | Angled | Black | No | Grounded | 1 | €73.88 | |
 |
123-PI | 10A | 125V AC | Standard | 1-15P | Straight | White | Yes | Non Grounded | 10 | €75.96 | |
 |
123-PW | 10A | 125V AC | Standard | 1-15P | Straight | White | Yes | Non Grounded | 1 | €7.37 | |
 |
101-EP | 15A | 125V AC | Hinged | - | Straight | Black | Yes | Non Grounded | 1 | €6.07 | |
 |
101-WP | 15A | 125V AC | Hinged | 1-15P | Straight | White | Yes | Non Grounded | 1 | €5.28 | |
 |
115PV | 15A | 125V AC | Standard | 1-15P | Straight | Yellow | No | Non Grounded | 1 | €9.97 |
