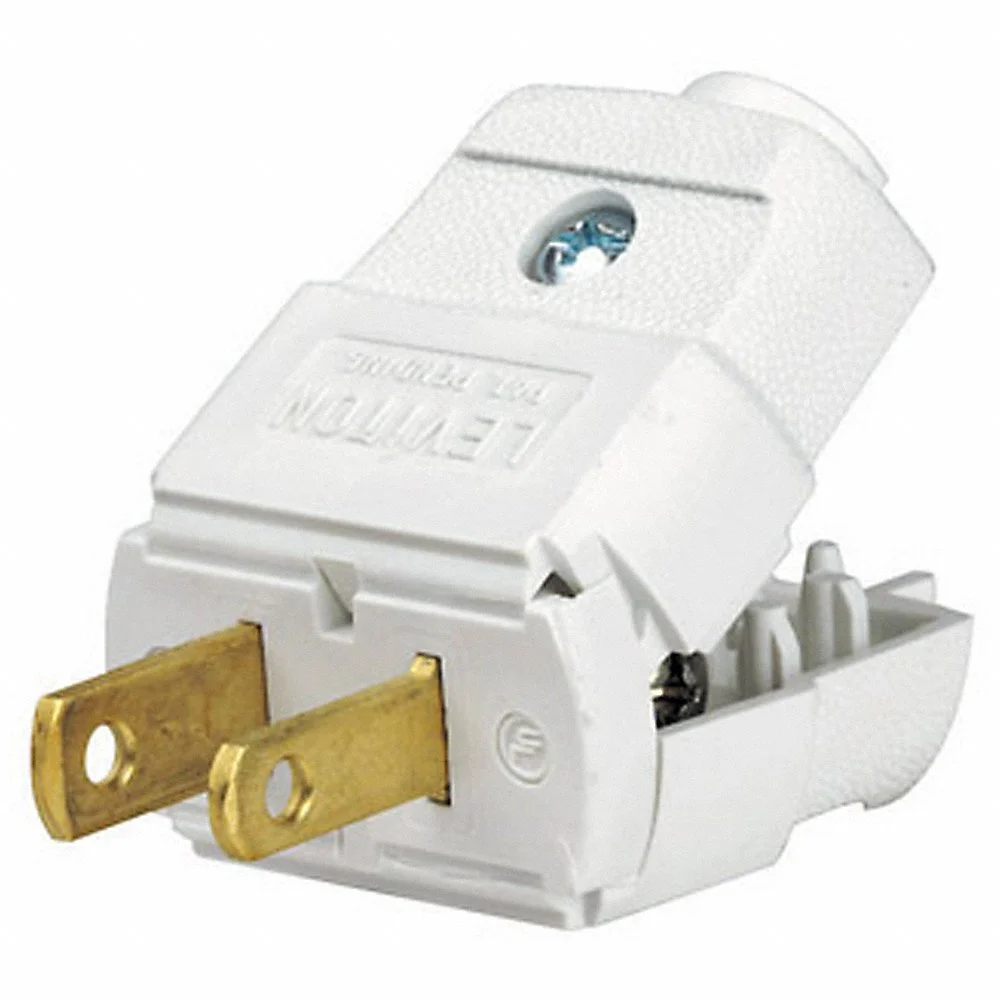

LEVITON 101-WP Straight Blade Plug, 1-15P, 15 A, 125VAC, 2 Poles, White
Item: CR9HJEModel: 101-WPCross Ref: 792RX4
7 In Stock
Ships within 2 days via
10.00% off
€4.75 /unit
This product can only be shipped in multiples of 200Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Plug |
| Amps | 15A |
| Blade Material | Brass |
| Connection Orientation | Straight |
| Current Rating | 15A |
| For Maximum Cable Diameter | 1/4" |
| Grade | General Use |
| Grounding | Non Grounded |
| Housing Color | White |
| Housing Material | Thermoplastic |
| Hp | 1/2 hp |
| Ip Rating | Not Rated |
| Maximum Wire Size | 16 AWG |
| Min. Wire Size | 20 AWG |
| Nema Plug Configuration | 1-15P |
| Number Of Blades | 2 |
| Number Of Poles | 2 |
| Phase | Single |
| Polarized | Yes |
| Standards | Csa Certified, Nom Certified, Rohs Compliant, Ul Listed |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Hinged |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Product Variants
| Product | Model | Amps | Voltage | Wiring Style | Number Of Poles | Nema Plug Configuration | Connection Orientation | Housing Color | Number Of Blades | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

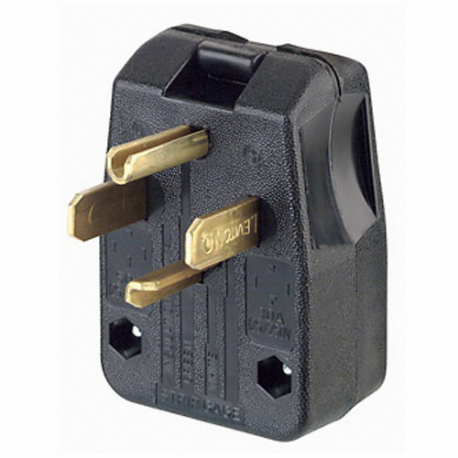

275-E | 30/50A | 125/250V AC | Standard | 3 | 14-30P, 14-50P | Angled | Black | 4 | 1 | €62.99 | |
 |

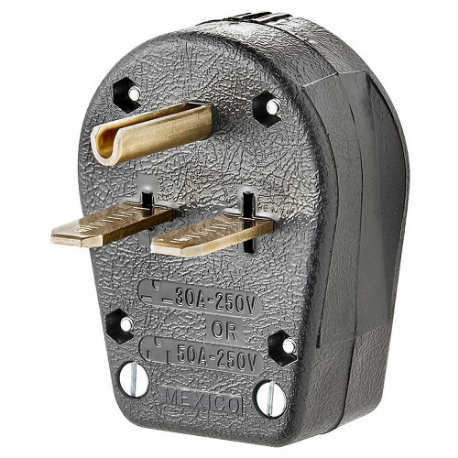

931-E | 30/50A | 250V AC | Standard | 2 | 6-30P, 6-50P | Angled | Black | 3 | 1 | €73.88 | |
 |
123-PI | 10A | 125V AC | Standard | 2 | 1-15P | Straight | White | 2 | 10 | €75.96 | |
 |

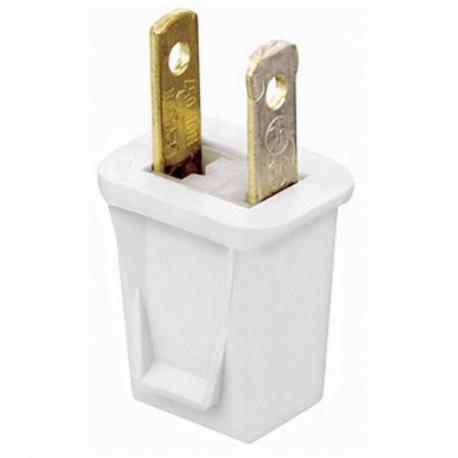

123-PW | 10A | 125V AC | Standard | 2 | 1-15P | Straight | White | 2 | 1 | €7.37 | |
 |

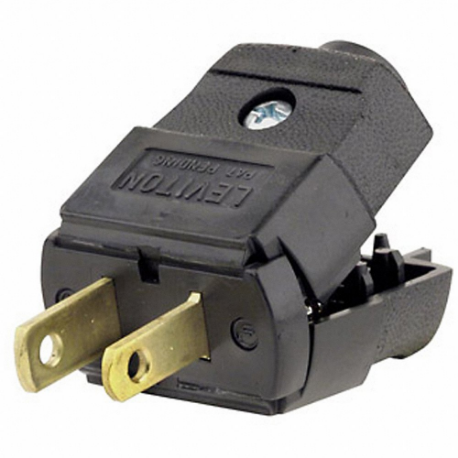

101-EP | 15A | 125V AC | Hinged | 2 | - | Straight | Black | 2 | 1 | €6.07 | |
 |

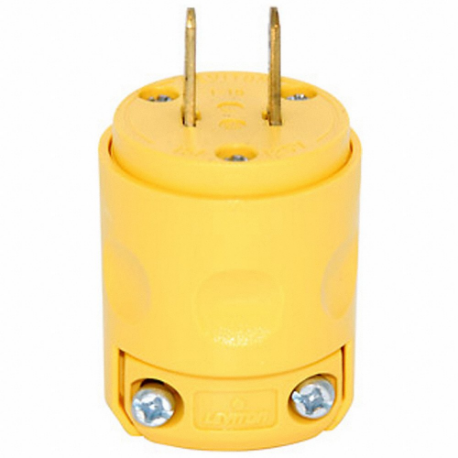

115PV | 15A | 125V AC | Standard | 2 | 1-15P | Straight | Yellow | 2 | 1 | €9.97 | |
 |
515PR | 15A | 125V AC | Standard | 2 | 5-15P | Straight | Black | 3 | 1 | €9.53 |
