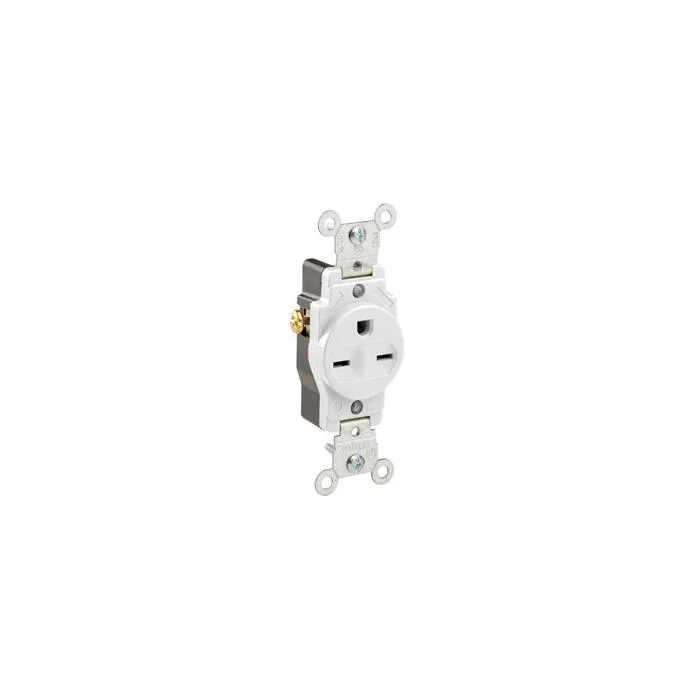

LEVITON 5029-W Single Straight Blade Receptacle, 250 VAC, 15 A, 2 Poles, 3 Wires, White
Item: CR9HZXModel: 5029-WCross Ref: 792TJ0
7 In Stock
Ships within 2 days via
5.00% off
€11.65 /unit
This product can only be shipped in multiples of 100Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Ac Hp Ratings At Rated Voltage | 1 1/2 hp |
| Amps | 15A |
| Body Material | Nylon |
| Color | White |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Cover Type | No Cover |
| Current Limiting | Full Rated Current |
| Current Rating | 15A |
| Depth | 1.06" |
| Device Type | Single Receptacle Outlet |
| Dielectric Voltage | Withstands 2000V Per UL498 |
| Face Material | Nylon |
| Face Plate Height | 2.4" |
| Flammability | Rated V-2 Per UL 94 |
| Gfci | No |
| Grade | Commercial |
| Grounding | Grounded |
| Grounding Screw Material | Brass |
| Grounding Screw Size | #8-32 |
| Housing Color | White |
| Housing Material | Nylon |
| Hp | 1 1/2 hp |
| Includes | Strap Material |
| Includes Mounting Hardware | Yes |
| Line Contacts Material | Brass |
| Line Contacts Style | Triple Wipe |
| Line Contacts Thickness | 0.031" |
| Max. Operating Temp. | 60°C |
| Max. Wire Size | 10 AWG |
| Maximum Operating Temperature | 140°F |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 14 AWG |
| Minimum Operating Temperature | -40°F |
| Mount Hole Center-to-center Height | 3.3" |
| Mounting Type | Flush |
| Nema Enclosure Rating | Not Rated |
| Nema Rating | NEMA WD-1 And NEMA WD-6 |
| Nema Receptacle Configuration | NEMA 6-15R |
| Number Of Outlets | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Operating Temp. | -40°C to +60°C |
| Overall Depth | 1.1" |
| Phase | Single |
| Polarized | Yes |
| Receptacle Type | Single |
| Screw Terminal Torque | 14 lbs.-in. to 18 lbs.-in. |
| Strap Finish | Zinc Plated |
| Strap Material | Steel |
| Temp. Rise | Max. 30°C After 100 Cycles Ol At 150 Percent Rated Current |
| Terminal Accom. | 14 AWG to 10 AWG |
| Terminal Id | Brass Hot, Green Ground |
| Terminal Screws | Brass 8-32 |
| Termination | Side Wire |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 250V AC |
| Voltage Rating | 250V AC |
| Wire Connection Location | Side |
| Wire Connection Type | Screw Terminals |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 50.8 |
| Ship width (cm) | 3.51 |
| Country of Origin | MX |
Product Variants
| Product | Model | Housing Color | Grade | Current Rating | Nema Receptacle Configuration | Face Plate Height | Mount Hole Center-to-center Height | Amps | Hp | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5029 | Brown | Commercial | - | NEMA 6-15R | 2 9/25" | 3 7/25" | 15A | 1 1/2 hp | €12.14 | |
 |
5821-I | Ivory | Commercial | 20A | NEMA 6-20R | 2.4" | 3.3" | 20A | 2 hp | €13.92 | |
 |
5821-W | White | Federal Specification | 20A | NEMA 6-20R | 2.4" | 3.3" | 20A | 2 hp | €13.93 | |
 |
5821 | - | - | - | - | - | - | - | - | €16.67 |
