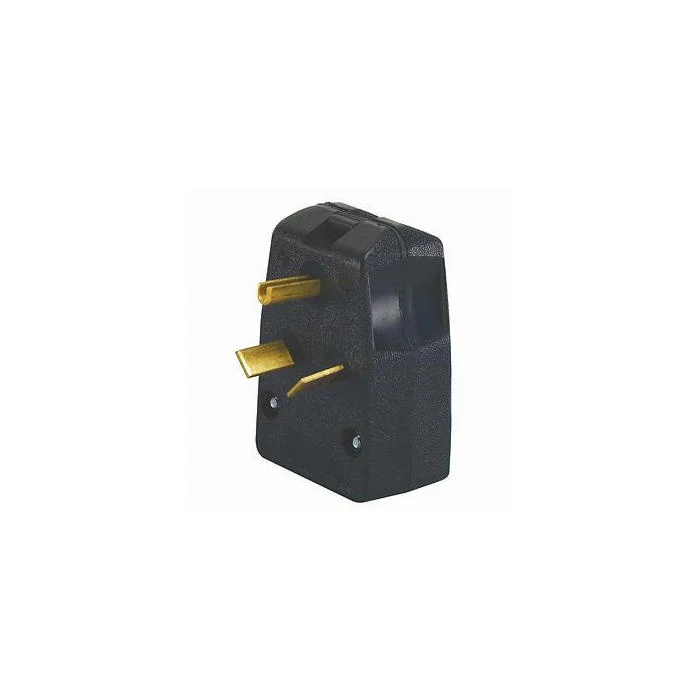

LEVITON 287-E Angle Non-Grounding Straight Blade Plug, 125/250 VAC, 30/50 A, 3 Poles, 3 Wires, Black
Item: CR9HKZModel: 287-ECross Ref: 792TD7
7 In Stock
Ships within 2 days via
5.00% off
€37.85 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Plug |
| Amps | 30/50A |
| Assembly Screws Finish | Zinc Plated |
| Assembly Screws Material | Steel |
| Blade Material | Brass |
| Blades/contacts | Brass |
| Body Material | Thermoplastic |
| Color | Black |
| Connection Orientation | Angled |
| Cord Range | 0.687" to 1.05" |
| Current Interrupting | Certified For Current Interrupting At Full Rated Current |
| Current Rating | 30/50A |
| Dielectric Voltage | Withstands 2000V Per UL498 |
| Flammability | Rated V-2 Per UL 94 |
| For Location | Indoor/Outdoor |
| For Maximum Cable Diameter | 1.005" |
| For Minimum Cable Diameter | 0.687" |
| Grounding | Non Grounded , Non Grounding |
| Housing Color | Black |
| Housing Material | Thermoplastic |
| Hp | 2 hp |
| Ip Rating | Not Rated |
| Length | 3.49" |
| Max. Operating Temp. | 60°C |
| Max. Wire Size | 6 AWG |
| Maximum Operating Temperature | 140°F |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 10 AWG |
| Minimum Operating Temperature | -40°F |
| Nema Plug Configuration | 10-30P, 10-50P |
| Nema Rating | NEMA WD-6 |
| No. Of Wires | 3 |
| Number Of Blades | 3 |
| Number Of Poles | 3 |
| Operating Temp. | -40°C to +60°C |
| Overall Length | 3.49" |
| Phase | Single |
| Polarized | No |
| Resistance Properties | Chemical Resistant, Moisture Resistant, Shatter And Crack Resistant |
| Standards | Ansi C73, Csa C22.2 No. 42 File Lr-406, Nema Wd-6, Nom 057 Certified, Rohs Compliant, Ul 498 File E13393 |
| Temp. Rise | Max. 30°C After 50 Cycles Ol At 150 Percent Rated Current |
| Terminal Accom. | 10 AWG to 6 AWG |
| Terminal Id | Brass Hot, Green Ground, Silver Neutral |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125/250V AC |
| Voltage Rating | 125/250V AC |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 19.69 |
| Ship length (cm) | 27.62 |
| Ship width (cm) | 15.24 |
| Country of Origin | MX |
Product Variants
| Product | Model | Amps | Voltage | Wiring Style | Number Of Poles | Nema Plug Configuration | Connection Orientation | Housing Color | Number Of Blades | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
275-E | 30/50A | 125/250V AC | Standard | 3 | 14-30P, 14-50P | Angled | Black | 4 | 1 | €62.99 | |
 |
931-E | 30/50A | 250V AC | Standard | 2 | 6-30P, 6-50P | Angled | Black | 3 | 1 | €73.88 | |
 |
123-PI | 10A | 125V AC | Standard | 2 | 1-15P | Straight | White | 2 | 10 | €75.96 | |
 |
123-PW | 10A | 125V AC | Standard | 2 | 1-15P | Straight | White | 2 | 1 | €7.37 | |
 |
101-EP | 15A | 125V AC | Hinged | 2 | - | Straight | Black | 2 | 1 | €6.07 | |
 |
101-WP | 15A | 125V AC | Hinged | 2 | 1-15P | Straight | White | 2 | 1 | €5.28 | |
 |
115PV | 15A | 125V AC | Standard | 2 | 1-15P | Straight | Yellow | 2 | 1 | €9.97 |
