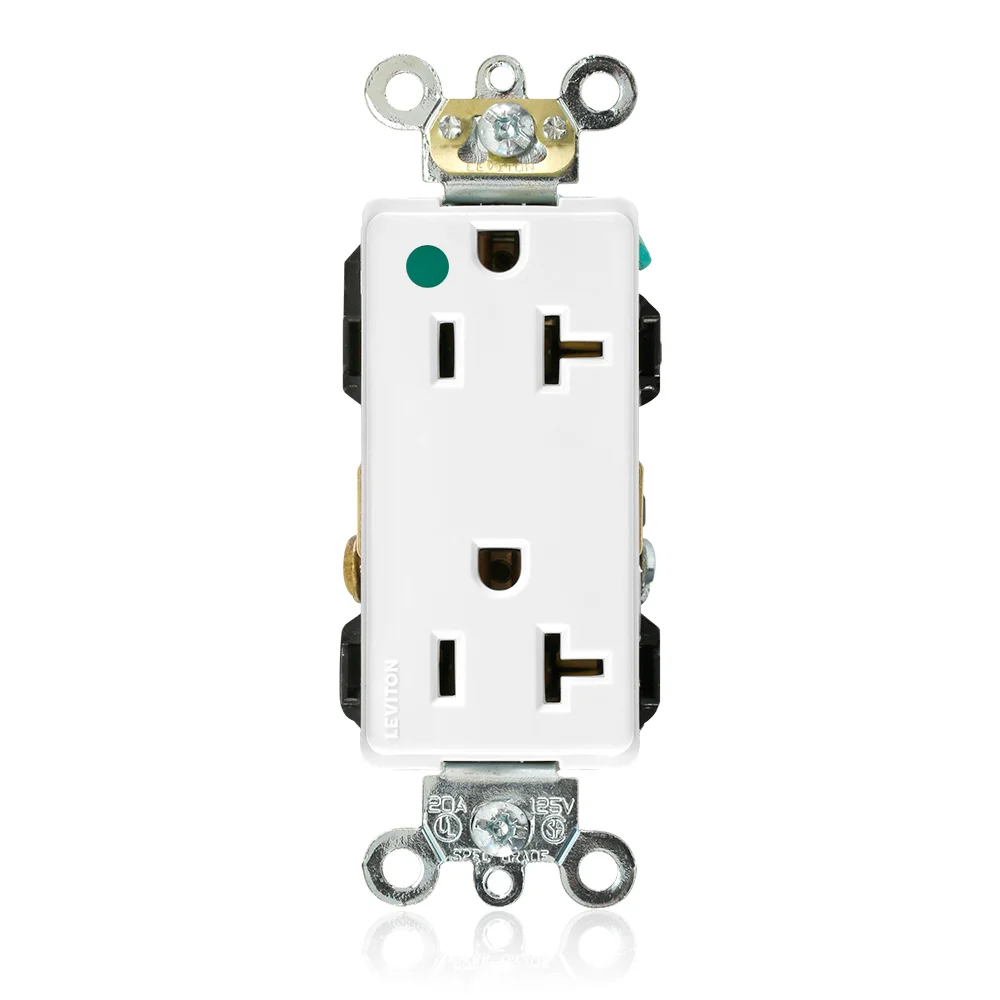

LEVITON 16362-HGW Duplex Extra Heavy Duty Self-Grounding Straight Blade Receptacle, 1 Phase, 125 VAC, 20 A, 2 Poles, 3 Wires, White
Item: CR9HTDModel: 16362-HGWCross Ref: 792T20
7 In Stock
Ships within 2 days via
5.00% off
€43.01 /unit
This product can only be shipped in multiples of 50Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Ac Hp Ratings At Rated Voltage | 1 hp |
| Amps | 20A |
| Body Material | Nylon |
| Clamp Nuts Finish | Zinc Plated |
| Clamp Nuts Material | Steel |
| Color | White |
| Connection Orientation | Straight |
| Cover Type | No Cover |
| Current Limiting | Full Rated Current |
| Current Rating | 20A |
| Device Type | Duplex Receptacle Outlet |
| Dielectric Voltage | Withstands 2000V Per UL498 |
| Face Material | Nylon |
| Face Plate Height | 2.6" |
| Features | Smooth Face |
| Flammability | Rated V-2 Per UL 94 |
| Gfci | No |
| Grade | Extra Heavy Duty Hospital Grade , Hospital |
| Ground Clips Material | Brass |
| Grounding | Grounded , Self Grounding |
| Grounding Screw Material | Brass |
| Grounding Screw Size | #8-32 |
| Housing Color | White |
| Includes | Strap Material |
| Includes Mounting Hardware | Yes |
| Line Contacts Material | Brass |
| Line Contacts Style | Triple Wipe |
| Line Contacts Thickness | 1/25" |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Nema Rating | NEMA WD-6 |
| Nema Receptacle Configuration | NEMA 5-20R |
| Number Of Outlets | 2 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Operating Temp. | -40°C to +60°C |
| Phase | Single |
| Polarized | Yes |
| Receptacle Type | Decorator Duplex |
| Resistance Property | General Purpose |
| Screw Terminal Torque | 14 lbs.-in. to 18 lbs.-in. |
| Special Resistance Properties | Impact Resistant |
| Standards | Ansi C73, Csa C22.2 No. 42 File E152105, Nema Wd-6, Ul 498Hg File E13399 |
| Strap Finish | Nickel Plated |
| Strap Material | Brass |
| Temp. Rise | Max. 30°C After 250 Cycles Ol At 200 Percent Rated Current |
| Terminal Accom. | 14 AWG to 10 AWG |
| Terminal Id | Brass Hot, Green Ground, Silver Neutral |
| Terminal Screws | Brass 10-32 |
| Termination | Back Or Side Wire |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
| Yoke Finish | Zinc Plated |
| Yoke Material | Steel |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 22.23 |
| Ship length (cm) | 31.12 |
| Ship width (cm) | 3.51 |
| Country of Origin | MX |
