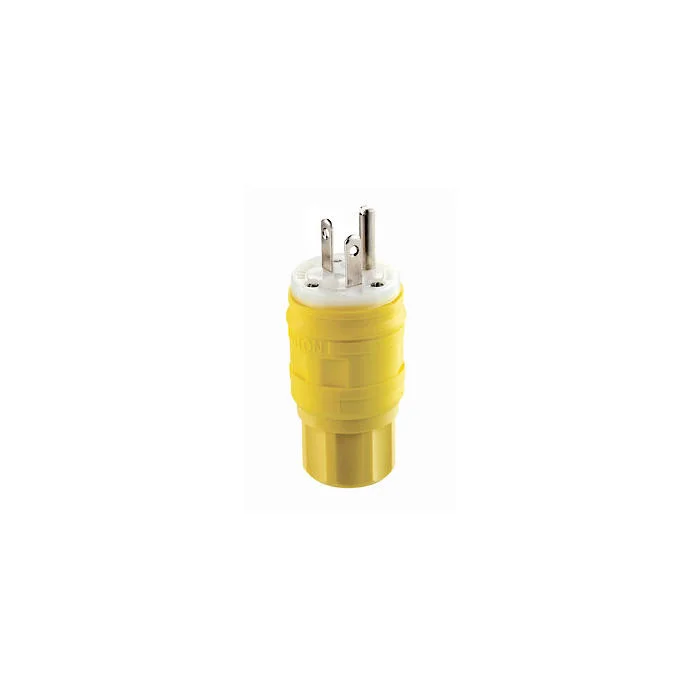

LEVITON 14W33 Straight Blade Plug, 5-20P, 20 A, 125VAC, Yellow, 2 Poles, Screw Terminals, IP69K
Item: CR9HKDModel: 14W33Cross Ref: 792RZ1
7 In Stock
Ships within 2 days via
10.00% off
€50.69 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Plug |
| Amps | 20A |
| Blade Material | Brass |
| Body Length | 2.7" |
| Color | Yellow |
| Connection Orientation | Straight |
| Current Rating | 20A |
| Environment | Wet |
| Face Dia. | 1 1/2" |
| Face Diameter | 1.5" |
| For Environment | Wet |
| For Maximum Cable Diameter | 0.655" |
| For Minimum Cable Diameter | 3/8" |
| Grade | General Use |
| Grounding | Grounded |
| Housing Color | Yellow |
| Housing Material | EPTR Rubber |
| Hp | 1 hp |
| Insulation Material | Nylon |
| Ip Rating | IP66, IP67, IP69K |
| Length | 3.53" |
| Max. Operating Temp. | 60°C |
| Max. Wire Size | 10 AWG |
| Maximum Operating Temperature | 140°F |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 18 AWG |
| Minimum Operating Temperature | -40°F |
| Nema Enclosure Rating | NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| Nema Plug Configuration | 5-20P |
| No. Of Wires | 3 |
| Number Of Blades | 3 |
| Number Of Poles | 2 |
| Outside Dia. | 1.62" |
| Overall Length | 3.53" |
| Phase | Single |
| Polarized | Yes |
| Resistance Properties | Watertight |
| Standards | Ansi C73, Csa C22.2 No. 42 File Lr-406, Nema Wd-6, Nom 057 Certified, Rohs Compliant, Ul 498 |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 6.88 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Product Variants
| Model | Nema Plug Configuration | Amps | Voltage | Number Of Blades | Housing Material | For Minimum Cable Diameter | Grounding | Hp | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 14W04 | 1-15P | 15A | 125V AC | 2 | Santoprene TPV | 0.234" | Non Grounded | 1/2 hp | €55.23 | |
| 14W47 | 5-15P | 15A | 125V AC | 3 | EPTR Rubber | 3/8" | Grounded | 1/2 hp | €44.81 | |
| 14W49 | 6-15P | 15A | 250V AC | 3 | EPTR Rubber | 0.234" | Grounded | 1 1/2 hp | €56.47 | |
| 14W48 | 6-20P | 20A | 250V AC | 3 | EPTR Rubber | 3/8" | Grounded | 2 hp | €53.72 | |
| 14W34 | 7-15P | 15A | 277V AC | 3 | EPTR Rubber | 3/8" | Grounded | 2 hp | €73.09 |
