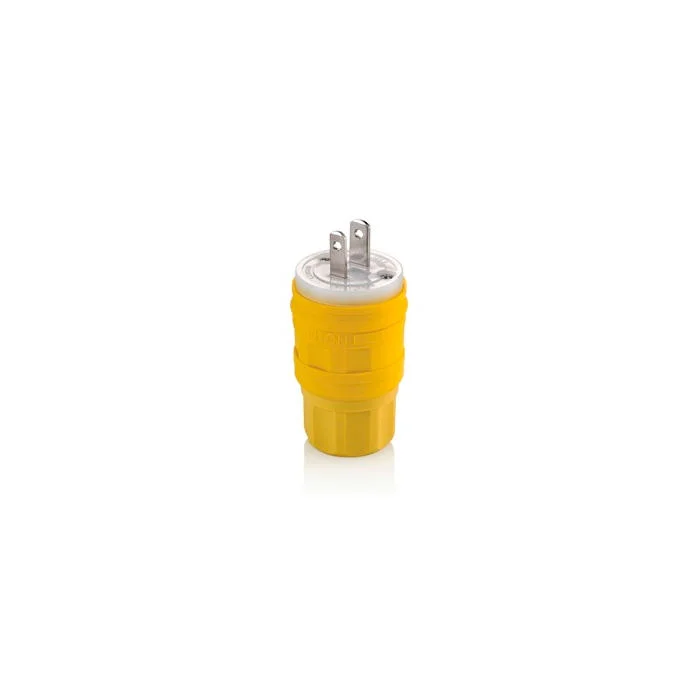

LEVITON 14W04 Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 2 Wires, Yellow, TPV
Item: CR9HJGModel: 14W04Cross Ref: 792RY9
7 In Stock
Ships within 2 days via
5.00% off
€52.47 /unit
This product can only be shipped in multiples of 20Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Plug |
| Amps | 15A |
| Assembly Screws Material | Stainless Steel |
| Blade Material | Brass |
| Blades/contacts | Electroless Nickel Coated Brass |
| Body Interior | Nylon |
| Body Length | 2.71" |
| Body Material | Santoprene TPV |
| Bushing Material | Santoprene TPV |
| Clamps Finish | Electroless Nickel Coated |
| Clamps Material | Brass |
| Color | Yellow |
| Compression Nut, Strain Relief | Nylon |
| Connection Orientation | Straight |
| Cord Grip Range | 0.234" to 0.687" |
| Current Limiting | Full Rated Current |
| Current Rating | 15A |
| Device Type | Straight Blade Plug |
| Dielectric Voltage | Withstands 2000V Per UL498 |
| Environment | Wet |
| Face Dia. | 1 1/2" |
| Face Diameter | 1.5" |
| Flammability | Rated V-2 Per UL 94 |
| For Environment | Wet |
| For Maximum Cable Diameter | 0.687" |
| For Minimum Cable Diameter | 0.234" |
| Grade | General Use |
| Grounding | Non Grounded |
| Housing Color | Yellow |
| Housing Material | Santoprene TPV |
| Hp | 1/2 hp |
| Insulation Material | Nylon |
| Ip Rating | IP66, IP67, IP69K |
| Length | 3.38" |
| Max. Wire Size | 10 AWG |
| Maximum Operating Temperature | 140°F |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 18 AWG |
| Minimum Operating Temperature | -40°F |
| Nema Enclosure Rating | NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| Nema Plug Configuration | 1-15P |
| Nema Rating | NEMA WD-6 |
| No. Of Wires | 2 |
| Number Of Blades | 2 |
| Number Of Poles | 2 |
| Operating Temp. | -40°C to +60°C |
| Overall Length | 3.38" |
| Phase | Single |
| Polarized | Yes |
| Product Datasheet | leviton-5410-w.pdf |
| Resistance Properties | Watertight |
| Standards | Ansi C73, Csa C22.2 No. 42 File Lr-406, Nema Wd-6, Nom 057 Certified, Rohs Compliant, Ul 498 |
| Temp. Rise | Max. 30°C After 250 Cycles Ol At 200 Percent Rated Current |
| Terminal Accom. | 18 AWG to 10 AWG |
| Terminal Id | Brass Hot, Green Ground, Silver Neutral |
| Terminal Screws Finish | Electroless Nickel Coated |
| Terminal Screws Material | Brass |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Type | Screw Terminals |
| Wire Module | Nylon |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 1.19 |
| Ship height (cm) | 31.12 |
| Ship length (cm) | 40.01 |
| Ship width (cm) | 22.86 |
| Country of Origin | MX |
Documentation:
Product Variants
| Model | Nema Plug Configuration | Amps | Voltage | Number Of Blades | Housing Material | For Minimum Cable Diameter | Grounding | Hp | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 14W47 | 5-15P | 15A | 125V AC | 3 | EPTR Rubber | 3/8" | Grounded | 1/2 hp | €44.81 | |
| 14W33 | 5-20P | 20A | 125V AC | 3 | EPTR Rubber | 3/8" | Grounded | 1 hp | €56.32 | |
| 14W49 | 6-15P | 15A | 250V AC | 3 | EPTR Rubber | 0.234" | Grounded | 1 1/2 hp | €56.47 | |
| 14W48 | 6-20P | 20A | 250V AC | 3 | EPTR Rubber | 3/8" | Grounded | 2 hp | €53.72 | |
| 14W34 | 7-15P | 15A | 277V AC | 3 | EPTR Rubber | 3/8" | Grounded | 2 hp | €73.09 |
