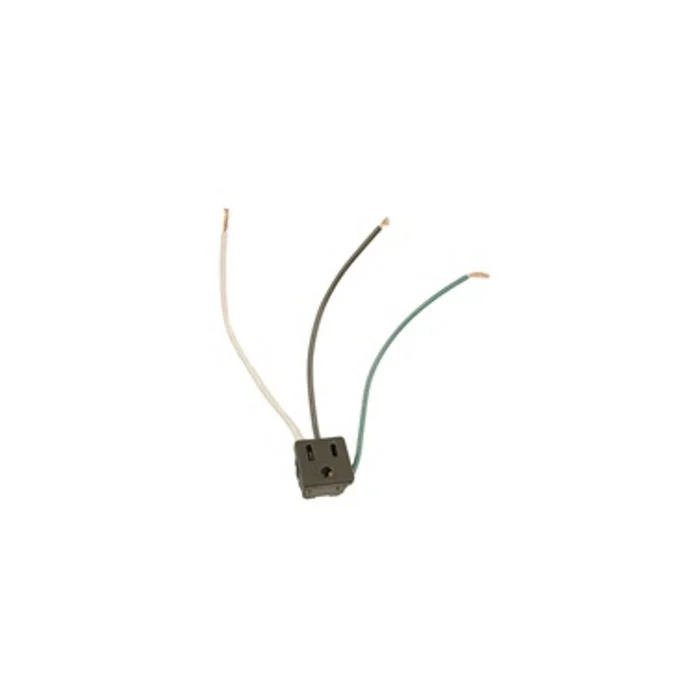

LEVITON 1374-1 Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Black, Thermoplastic
Item: CR9HYWModel: 1374-1Cross Ref: 792RY5
7 In Stock
Ships within 2 days via
5.00% off
€16.52 /unit
This product can only be shipped in multiples of 100Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Amps | 15A |
| Body Material | Thermoplastic |
| Clip Material | Plastic |
| Color | Black |
| Connection Orientation | Straight |
| Cover Type | No Cover |
| Device Type | Snap In |
| Face Material | Thermoplastic |
| Face Plate Height | 1.1" |
| Face Plate Width | 1.1" |
| Gfci | No |
| Grade | Federal Specification |
| Grounding | Grounded , Grounding |
| Housing Color | Black |
| Housing Material | Thermoplastic |
| Included | Strap Material |
| Included Mounting Hardware | Yes |
| Mounting Hardware Included | Yes |
| Mounting Type | Recessed |
| Nema Enclosure Rating | Not Rated |
| Nema Rating | NEMA 5-15R |
| Nema Receptacle Configuration | NEMA 5-15R |
| No. Of Outlets | 1 |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Panel Opening | 0.95 x 0.95 |
| Panel Thickness | 0.031" to 0.08" |
| Phase | 1 |
| Polarized | No |
| Receptacle Type | Single |
| Signal & Power Protection | Standard Protection |
| Standards | Csa Certified, Csa Certified Lr-2781, Ul Listed, Ul Listed E13399 |
| Termination | Leads 14GA 6" Long |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125V AC |
| Wire Connection Location | Back |
| Wire Connection Type | Wire Lead |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 23.81 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 40.64 |
| Country of Origin | MX |
