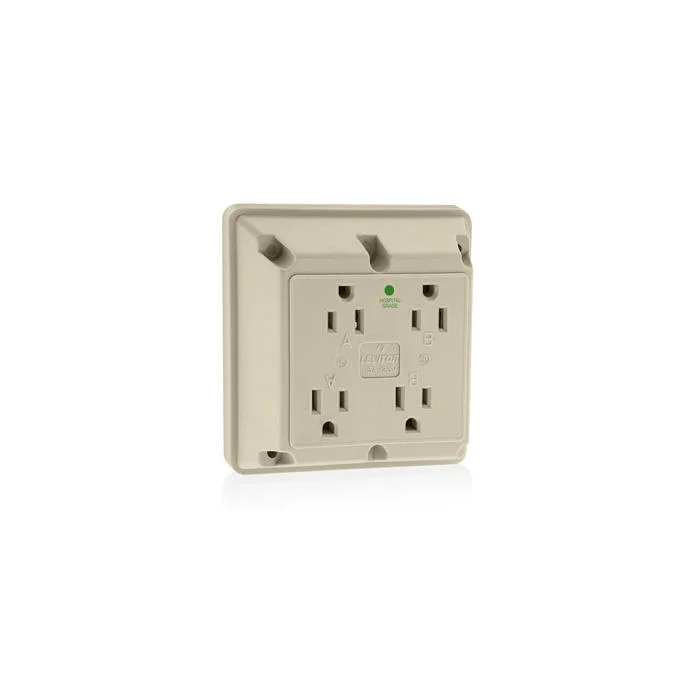

LEVITON 1254-HI Extra Heavy Duty Grounding Quadruplex Straight Blade Receptacle, 1 Phase, 125 VAC, 15 A, 2 Poles, 3 Wires, Ivory
Item: CR9HYCModel: 1254-HICross Ref: 792RY1
7 In Stock
Ships within 2 days via
5.00% off
€71.14 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Ac Hp Ratings At Rated Voltage | 1/2 hp |
| Amps | 15A |
| Body Material | Nylon |
| Color | Ivory |
| Connection Orientation | Straight |
| Cover Type | No Cover |
| Current Limiting | Full Rated Current |
| Device Type | Quadruplex Receptacle Outlet |
| Dielectric Voltage | Withstands 2000V Per UL498 |
| Face Material | Nylon |
| Face Plate Height | 4 1/2" |
| Flammability | Rated V-2 Per UL 94 |
| Gfci | No |
| Grade | Heavy Duty Hospital Grade , Hospital |
| Grounding | Grounded , Grounding |
| Grounding Screw Finish | Plated |
| Grounding Screw Material | Steel |
| Housing Color | Ivory |
| Includes | Strap Material |
| Line Contacts Material | Phosphor Bronze |
| Mount Hole Center-to-center Height | 3.38" |
| Mounting Hardware Included | Yes |
| Mounting Screws Finish | Zinc Plated |
| Mounting Screws Material | Steel |
| Mounting Type | Surface |
| Nema Rating | NEMA WD-1, NEMA WD-6 |
| Nema Receptacle Configuration | NEMA 5-15R |
| Number Of Outlets | 4 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Operating Temp. | -40°C to +60°C |
| Polarized | Yes |
| Receptacle Type | Quad |
| Screw Terminal Torque | 10 lbs.-in. to 12 lbs.-in. |
| Strap Finish | Galvanized |
| Strap Material | Steel With Riveted Ground Contacts |
| Temp. Rise | Max. 30°C After 50 Cycles Ol At 150 Percent Rated Current |
| Terminal Accom. | 14 AWG to 12 AWG |
| Terminal Id | Brass Hot, Green Ground, Silver Neutral |
| Terminal Screws | Brass 8-32 |
| Termination | Side Wire |
| Torque Range | 12 lbs.-in. to 14 lbs.-in. |
| Voltage | 125V AC |
| Wire Connection Location | Side |
| Wire Connection Type | Screw Terminals |
Shipping Info:
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 21.59 |
| Ship length (cm) | 32.39 |
| Ship width (cm) | 4.52 |
| Country of Origin | MX |
