LEGRIS 7010 53 20 Valve, 1/8 Inch Push To Connect, 10-32 UNF, 145 PSI
Item: CR8QZTModel: 7010 53 20Cross Ref: 1DDW4
7 In Stock
Ships within 2 days via
5.00% off
€42.02 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Valve |
| Adjustment Material | Brass |
| Adjustment Method | Screwdriver |
| Application | Automotive, Packaging, Pneumatic Circuits, Robotics, Semiconductors, Textile |
| Body Material | Nylon |
| Configuration | Inline |
| Directions Controlled | 1 |
| Finish | Nickel Plated |
| For Media | Compressed Air |
| For Tube Type | Fluoropolymer, Nylon, Polyurethane, Semi Rigid Nylon |
| Inlet Port | 1/8" UNF |
| Inlet Port Connection Size | 1/8" |
| Inlet Port Connection Type | UNF |
| Inlet Port Type | Push To Connect |
| Max. Operating Pressure | 145 psi |
| Max. Operating Temp. | 158°F |
| Max. Pressure | 145 psi |
| Max. Temp. | 158°F |
| Min. Operating Pressure | 15 psi |
| Min. Operating Temp. | 32°F |
| Operating Pressure | 15 psi to 145 psi |
| Operating Temp. | 32°F to 158°F |
| Outlet Port | 10-32 UNF |
| Outlet Port Connection Size | 10-32 |
| Outlet Port Connection Type | UNF |
| Overall Height | 1/16" |
| Pressure | 14.5 psi to 145 psi |
| Product Type | Flow Control Valve |
| Rotation | 360° |
| Seal Material | Nitrile |
| Thread Size | #10-32 |
| Valve Outlet Port Type | UNF |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 5.08 |
| Country of Origin | ES |
Product Variants
| Product | Model | Outlet Port Connection Size | Inlet Port Connection Size | Inlet Port Connection Type | Outlet Port | Finish | Max. Temp. | Configuration | Outlet Port Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
7770 62 00 | 1/2" | 1/2" | Push On | 1/2" Female Push-On | Glass Reinforced | 160°F | Inline | Push On | €171.07 | |
 |

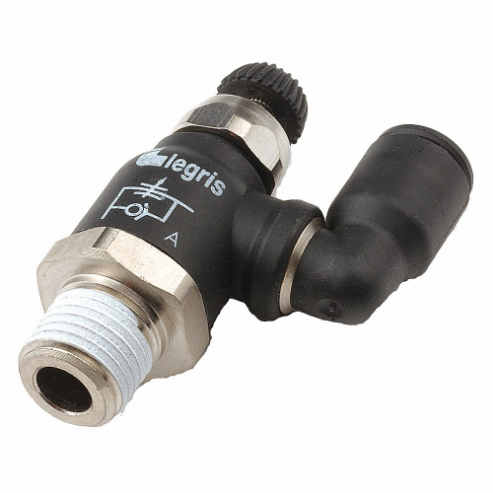

7045 56 14 | 1/4" | 1/4" | Push On | 1/4" Male NPT | Glass Reinforced | 158°F | Angle | NPT | €78.04 | |
 |

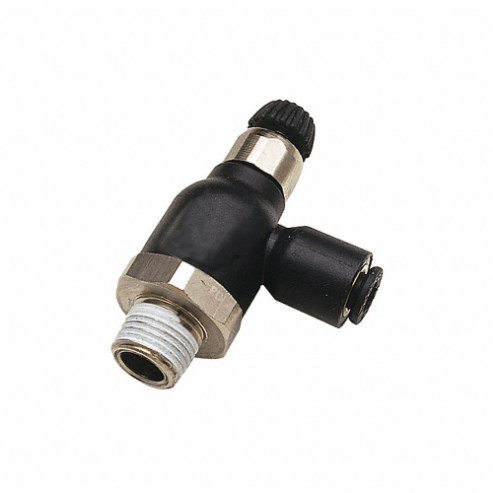

7065 56 14 | 1/4" | 1/4" | Push On | 1/4" Male NPT | Nickel Plated | 158°F | Inline | NPT | €78.96 | |
 |
7015 56 14 | 1/4" | 1/4" | Push On | 1/4" Male NPT | Glass Reinforced | 158°F | Angle | NPT | €52.11 | |
 |
7065 56 11 | 1/8" | 1/4" | Push On | 1/8" MNPT | Nickel Plated | 158°F | Inline | NPT | €54.71 | |
 |

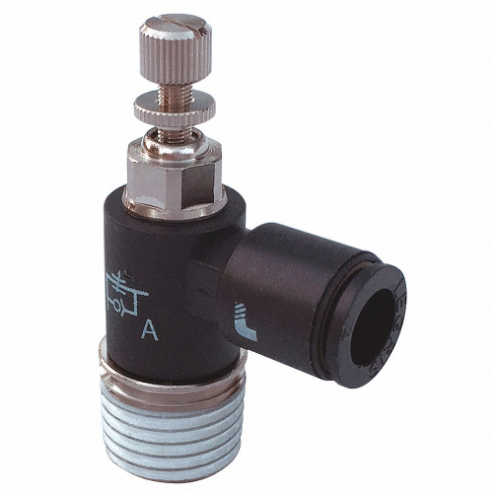

7665 56 11 | 1/8" | 1/4" | Push On | 1/8" MNPT | Nickel Plated | 158°F | Inline | NPT | €64.06 | |
|
7045 56 11 | 1/8" | 1/4" | Push On | 1/8" MNPT | Glass Reinforced | 158°F | Angle | NPT | €72.73 |
