LEGRIS 3631 06 13 Metric All Metal Push-to-Connect Fitting, Nickel Plated Brass, Push-to-Connect x BSPP
Item: CN8GAMModel: 3631 06 13Cross Ref: 791TD8
7 In Stock
Ships within 2 days via
10.00% off
€30.35 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fitting |
| Application | Air, Grease, Lubricant, Non-Potable Water |
| Color | Silver |
| Compatible Tube Hardness | 95 Shore A |
| Compatible Tube Material | Copper, Fluoropolymer, Polyethylene, Polyurethane, Semi-Rigid Nylon, Stainless Steel |
| Finish/coating | Nickel Plated |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Push To Connect |
| Fitting Side A Pipe Size | 6 mm |
| Fitting Side B Connection Type | BSPP |
| Fitting Side B Tube Outer Diameter | 6 mm |
| Fitting Thread Size | G1/4 |
| Length | 21 mm |
| Material | Brass |
| Max. Operating Pressure | 30 BarG |
| Max. Operating Temp. | 302°F |
| Min. Operating Temp. | -4°F |
| Overall Length | 21 mm |
| Resistance Properties | Abrasion Resistant, Corrosion Resistant |
| Specific Fitting Shape | Straight Adapter |
| Sub-brand | Lf3600 |
| System Of Measurement | Metric |
| Vacuum Rating | 755 mm hg |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Fitting Side B Connection Type | Fitting Side B Tube Outer Diameter | Fitting Thread Size | Overall Length | Fitting Side A Pipe Size | Fitting Side A Connection Type | Fitting Material | Max. Operating Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

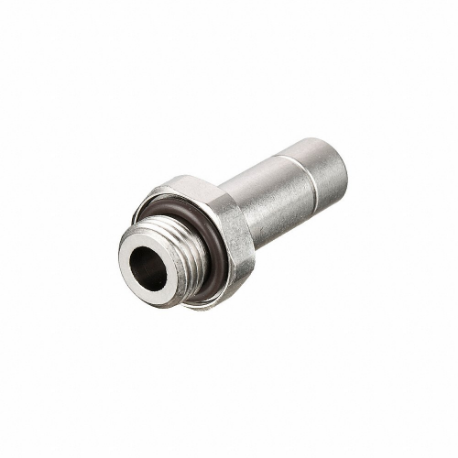

| 3631 04 19 | Push To Connect | 4 mm | M5 | 25.5 mm | 5 mm | Metric | Brass | 30 BarG | €23.16 | |
| 3631 06 10 | BSPP | 6 mm | G1/8 | 28 mm | 6 mm | - | Brass | 30 BarG | €28.51 | |
| 3631 04 10 | BSPP | 4 mm | G1/8 | 26.5 mm | 4 mm | Push To Connect | Brass | 30 BarG | €31.89 | |
| 3631 10 13 | BSPP | 10 mm | G1/4 | 34.5 mm | 10 mm | Push To Connect | Brass | 30 BarG | €46.96 |
