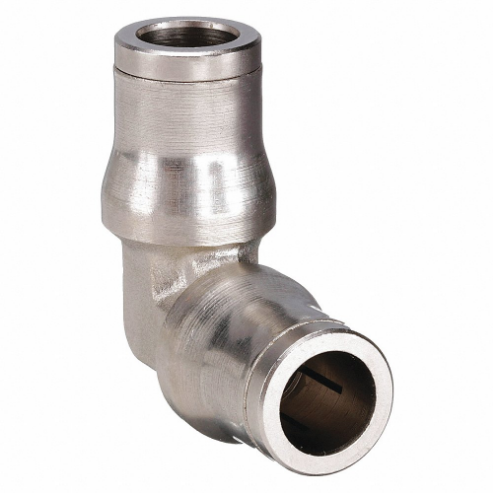

LEGRIS 3602 62 00 Union Elbow, Nickel Plated Brass, Push-to-Connect x Push-to-Connect
Item: CR8TNHModel: 3602 62 00Cross Ref: 3ZNL4
7 In Stock
Ships within 2 days via
10.00% off
€28.50 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Union Elbow |
| Application | Food Processing, Harsh Detergents, Non-Potable Water, Oils, Steam |
| Color | Silver |
| Compatible Tube Hardness | 95 Shore A |
| Compatible Tube Material | Copper, Fluoropolymer, Polyethylene, Polyurethane, Semi-Rigid Nylon, Stainless Steel |
| Finish | Nickel Plated |
| Finish/coating | Nickel Plated |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Push To Connect |
| Fitting Side A Tube Outer Diameter | 1/2" |
| Fitting Side B Connection Type | Push To Connect |
| Fitting Side B Tube Outer Diameter | 1/2" |
| Includes Pre-applied Thread Sealant | No |
| Length | 1 5/8" |
| Max. Operating Temp. | 302°F |
| Max. Pressure | 435 psi |
| Maximum Operating Pressure | 435 psi |
| Min. Operating Temp. | 13°F |
| Overall Length | 1 5/8" |
| Release Ring Material | FKM |
| Resistance Properties | Abrasion Resistant, Chemical Resistant, Corrosion Resistant |
| Specific Fitting Angle | 90° |
| Specific Fitting Shape | 90° Elbow |
| System Of Measurement | Imperial |
| Vacuum Pressure | 28 in. hg |
| Vacuum Rating | 28 in. hg |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 1.27 |
| Country of Origin | ES |
Product Variants
| Product | Model | Fitting Material | Specific Fitting Shape | Overall Length | Color | Fitting Side A Connection Type | Fitting Side B Connection Type | Fitting Side B Tube Outer Diameter | Fitting Side A Tube Outer Diameter | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3602 08 00 | Brass | Elbow | 31 mm | Silver | Push-To-Connect | Push-To-Connect | 8 mm | - | 1 | €22.74 | |
 |
3102 04 56 | Nylon | Reducing Elbow | 15/16" | Black | Push-To-Connect | Push-To-Connect | 1/4" | 5/32" | 10 | €94.09 | |
 |
3102 60 56 | Nylon | Elbow | 1 11/32" | Black | Push-To-Connect | Push-To-Connect | 1/4" | 3/8" | 10 | €214.82 | |
|
3102 16 00 | Nylon | Elbow | 52 mm | Black | Push-To-Connect | Push-To-Connect | 16 mm | 16 mm | 1 | €39.63 | |
|
3102 60 62 | Nylon | Elbow | 1 13/16" | Black | Push-To-Connect | Push-To-Connect | 1/2" | 3/8" | 10 | €208.83 | |
 |
1843 34 34 | Stainless Steel | 90° Union Elbow | 2" | - | - | - | - | - | 1 | €445.33 | |
|
1843 21 21 | Stainless Steel | 90° Union Elbow | 1 7/16" | - | - | - | - | - | 1 | €314.03 |
