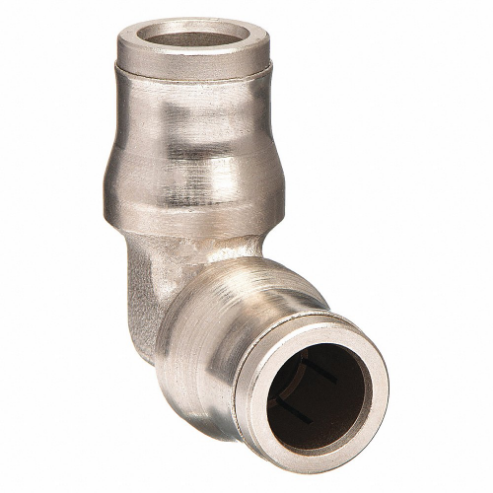

LEGRIS 3602 08 00 Union 90 degree Elbow Brass 5/16 Inch or 8mm
Item: AD3JWMModel: 3602 08 00Cross Ref: 3ZNK9
7 In Stock
Ships within 2 days via
5.00% off
€21.60 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Union Elbow, 90 Degrees |
| Application | Food Processing, Harsh Detergents, Non-Potable Water, Oils, Steam |
| Basic Material | Metal |
| Body Finish | Nickel Plated |
| Body Material | Brass |
| Color | Silver |
| Compatible Tube Hardness | 95 Shore A |
| Compatible Tube Material | Copper, Fluoropolymer, Polyethylene, Polyurethane, Semi-Rigid Nylon, Stainless Steel |
| Connection Type | Tube |
| Finish, Coating | Nickel Plated |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Push-To-Connect |
| Fitting Side A Tube Outside Dia. | 8 mm |
| Fitting Side B Connection Type | Push-To-Connect |
| Fitting Side B Tube Outside Dia. | 8 mm |
| Gasket Material | FKM |
| Included Pre-applied Thread Sealant | No |
| Max. Operating Pressure | 435 psi |
| Max. Operating Temp. | 302°F |
| Max. Pressure | 290 psi |
| Min. Operating Temp. | 13°F |
| Overall Length | 31 mm |
| Release Ring Material | FKM |
| Resistance Properties | Abrasion Resistant, Chemical Resistant, Corrosion Resistant |
| Specific Fitting Angle | 90° |
| Specific Fitting Shape | Elbow |
| System Of Measurement | Metric |
| Temp. | -4°F to +302°F |
| Tube Size | 5/16" |
| Vacuum | 28 in. hg |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 1.52 |
| Ship length (cm) | 3.3 |
| Ship width (cm) | 1.27 |
| HS code | 7412200035 |
| Country of Origin | ES |
Product Variants
| Product | Model | Fitting Material | Max. Operating Pressure | Fitting Side A Connection Type | Specific Fitting Shape | Fitting Side A Tube Outside Dia. | Fitting Side B Connection Type | Color | Fitting Side B Tube Outside Dia. | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

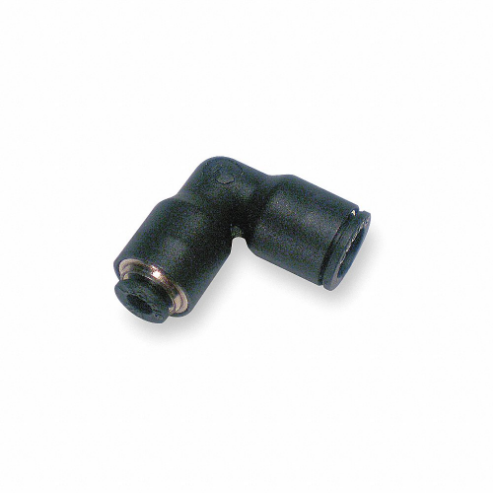

3102 04 56 | Nylon | 290 psi | Push-To-Connect | Reducing Elbow | 5/32" | Push-To-Connect | Black | 1/4" | 10 | €94.09 | |
 |

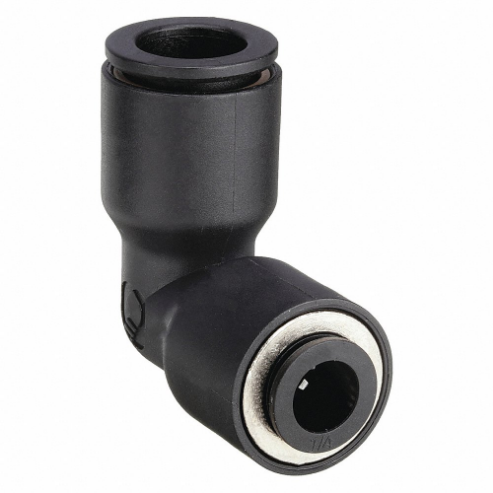

3102 60 56 | Nylon | 290 psi | Push-To-Connect | Elbow | 3/8" | Push-To-Connect | Black | 1/4" | 10 | €214.82 | |
|
3102 16 00 | Nylon | 290 psi | Push-To-Connect | Elbow | 16 mm | Push-To-Connect | Black | 16 mm | 1 | €39.63 | |
|
3102 60 62 | Nylon | 290 psi | Push-To-Connect | Elbow | 3/8" | Push-To-Connect | Black | 1/2" | 10 | €208.83 | |
 |

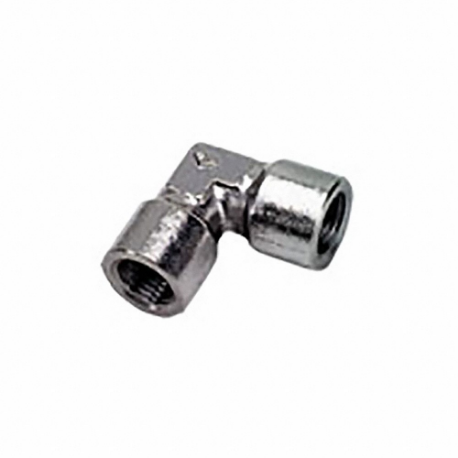

1843 34 34 | Stainless Steel | 2176 psi | - | 90° Union Elbow | - | - | - | - | 1 | €445.33 | |
|
1843 21 21 | Stainless Steel | 2176 psi | - | 90° Union Elbow | - | - | - | - | 1 | €314.03 | |
|
1843 13 13 | Stainless Steel | 2176 psi | - | 90° Union Elbow | - | - | - | - | 1 | €180.05 |
