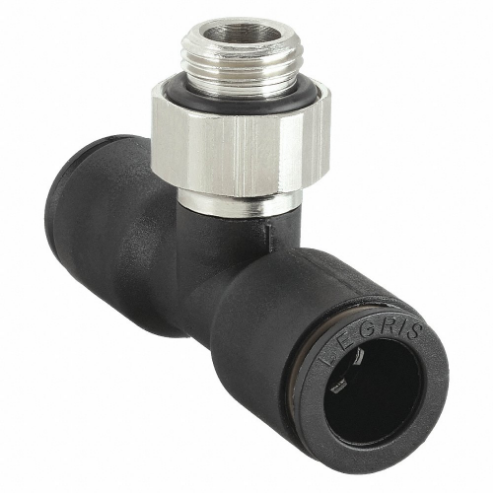

LEGRIS 3198 08 10 Male Branch Tee, Push-to-Connect x Push-to-Connect x MBSPP, 8mm Tube O.D.
Item: CJ2TXCModel: 3198 08 10Cross Ref: 4GWX2
7 In Stock
Ships within 2 days via
10.00% off
€190.93 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Male Branch Tee |
| Application | Air, Cutting Fluids, Inert Gases |
| Color | Black |
| Compatible Tube Material | Fluoropolymer, Nylon, Polyethylene, Polyurethane, Semi-Rigid Nylon |
| Fitting Material | Nylon |
| Fitting Side A Connection Type | Push-To-Connect |
| Fitting Side A Tube Outer Dia. | 8 mm |
| Fitting Side B Connection Type | Push-To-Connect |
| Fitting Side B Tube Outer Diameter | 8 mm |
| Fitting Side C Connection Type | MBSPP |
| Fitting Side C Pipe Size | 1/8" |
| Includes Pre-applied Thread Sealant | Yes |
| Maximum Operating Pressure | 290 psi |
| Maximum Operating Temperature | 175°F |
| Minimum Operating Temperature | 4°F |
| Overall Length | 46 mm |
| Release Ring Material | Nylon |
| Release Type | Button |
| Resistance Properties | Chemical Resistant, Corrosion Resistant |
| Specific Fitting Shape | Adapter Tee |
| System Of Measurement | Imperial/Metric |
| Vacuum Rating | 28 in. hg |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 2.35 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 1.27 |
| Country of Origin | FR |
Product Variants
| Product | Model | Fitting Material | Fitting Side A Connection Type | Fitting Side B Connection Type | Release Type | Fitting Side B Tube Outer Diameter | Release Ring Material | Vacuum Rating | Overall Length | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

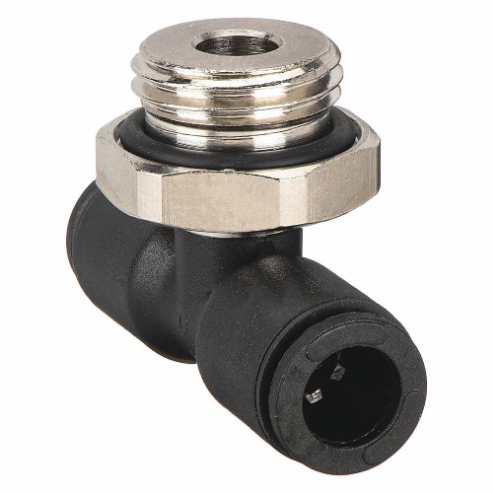

3198 08 17 | Nylon | Push-To-Connect | Push-To-Connect | Button | 8 mm | Nylon | 28 in. hg | 46 mm | 10 | €221.57 | |
|
3198 14 21 | Nylon | Push-To-Connect | Push-To-Connect | Button | 14 mm | Nylon | 28 in. hg | 71 mm | 5 | €253.18 | |
|
3198 06 13 | Nylon | Push-To-Connect | Push-To-Connect | Button | 6 mm | Nylon | 28 in. hg | 32 mm | 10 | €203.65 | |
|
3198 16 21 | Nylon | Push-To-Connect | Push-To-Connect | Button | 16 mm | Nylon | 28 in. hg | 77 mm | 1 | €111.70 | |
 |

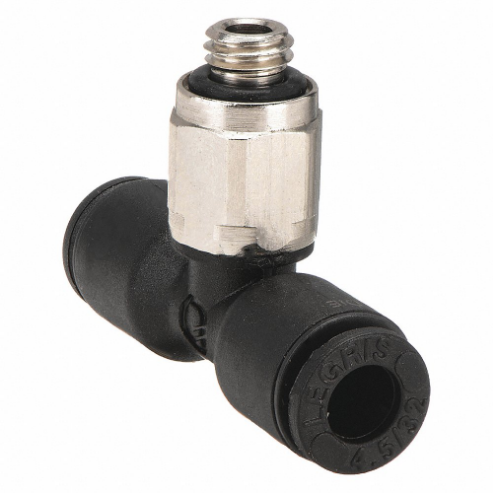

3198 04 19 | Nylon | Push-To-Connect | Push-To-Connect | Button | 4 mm | Nylon | 28 in. hg | 28 mm | 10 | €201.77 | |
|
3198 16 17 | Nylon | Push-To-Connect | Push-To-Connect | Button | 16 mm | Nylon | 28 in. hg | 77 mm | 1 | €111.84 | |
|
3198 04 10 | Nylon | Push-To-Connect | Push-To-Connect | Button | 4 mm | Nylon | 28 in. hg | 28 mm | 10 | €153.66 |
