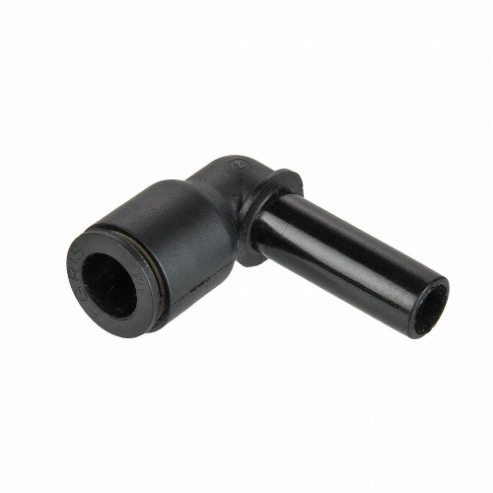

LEGRIS 3182 06 08 Metric Push-to-Connect Fitting, Polymer, Push-to-Connect x Push-to-Connect
Item: CR8QWWModel: 3182 06 08Cross Ref: 791RJ0
7 In Stock
Ships within 2 days via
10.00% off
€8.23 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fitting |
| Color | Black |
| Compatible Copper Tube Type | Not Applicable |
| Compatible Tube Hardness | 95 Shore A |
| Compatible Tube Material | Fluoropolymer, Nylon, Polyethylene, Polyurethane, Semi-Rigid Nylon |
| Fitting Material | Polymer |
| Fitting Side A Connection Type | Push To Connect |
| Fitting Side A Tube Outer Diameter | 8 mm |
| Fitting Side B Connection Type | Push To Connect |
| Fitting Side B Tube Outer Diameter | 6 mm |
| Length | 33.5 mm |
| Material | Polymer |
| Max. Operating Pressure | 20 BarG |
| Max. Operating Temp. | 176°F |
| Min. Operating Temp. | -4°F |
| Overall Length | 33.5 mm |
| Release Ring Material | Stainless Steel |
| Release Type | Ring |
| Specific Fitting Angle | 90° |
| Specific Fitting Shape | Elbow Adapter |
| Sub-brand | Lf3000(R) |
| System Of Measurement | Metric |
| Vacuum Rating | 755 mm hg |
Shipping Info:
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Fitting Side B Tube Outer Diameter | Fitting Side A Tube Outer Diameter | Overall Length | Fitting Material | Max. Operating Pressure | Max. Operating Temp. | Application | Specific Fitting Shape | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 3182 06 04 | 6 mm | 4 mm | 24.5 mm | Polymer | 20 BarG | 176°F | Air | Elbow Adapter | €6.33 | |
| 3182 12 00 | 12 mm | 12 mm | 44.5 mm | Polymer | 20 BarG | 176°F | Air | Elbow Adapter | €7.68 | |
| 3182 10 12 | 10 mm | 12 mm | 44.5 mm | Polymer | 20 BarG | 176°F | Air | Elbow Adapter | €14.13 | |
| 3182 08 10 | 8 mm | 10 mm | 39 mm | Polymer | 20 BarG | 176°F | Air | Elbow Adapter | €10.26 |
