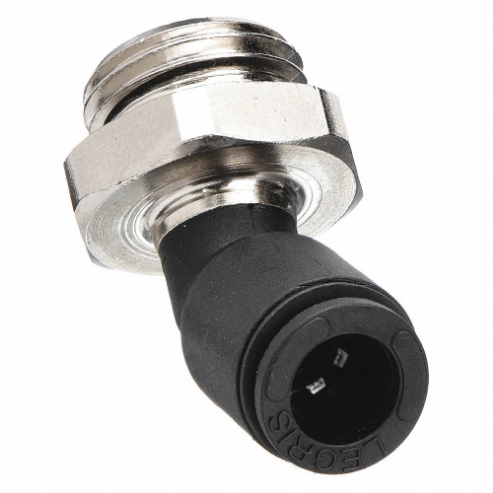

LEGRIS 3133 06 13 Male Elbow, Nylon, Push-to-Connect x MBSPP, 1/4 Inch Pipe Size, Black
Item: CJ2UAJModel: 3133 06 13Cross Ref: 4GWT8
7 In Stock
Ships within 2 days via
10.00% off
€111.37 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Male Elbow, 45 Degrees |
| Application | Air, Cutting Fluids, Inert Gases, Vacuum |
| Color | Black |
| Compatible Tube Hardness | 95 Shore A |
| Compatible Tube Material | Fluoropolymer, Nylon, Polyethylene, Polyurethane, Semi-Rigid Nylon |
| Fitting Material | Nylon |
| Fitting Side A Connection Type | Push-To-Connect |
| Fitting Side A Tube Outer Diameter | 6 mm |
| Fitting Side B Connection Type | MBSPP |
| Fitting Side B Pipe Size | 1/4" |
| Fitting Thread Size | 1/4" |
| Includes Pre-applied Thread Sealant | No |
| Maximum Operating Pressure | 290 psi |
| Maximum Operating Temperature | 175°F |
| Minimum Operating Temperature | 4°F |
| Overall Length | 29.5 mm |
| Release Type | Button |
| Resistance Properties | Chemical Resistant, Corrosion Resistant |
| Specific Fitting Angle | 45° |
| Specific Fitting Shape | Elbow Adapter |
| System Of Measurement | Imperial/Metric |
| Vacuum Rating | 28 in. hg |
Shipping Info:
| Ship weight (kg) | 0.12 |
| Ship height (cm) | 2.95 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 1.27 |
| Country of Origin | FR |
Product Variants
| Product | Model | Tube Size | Temp. Range | Connection Type | Fitting Material | Specific Fitting Shape | Fitting Side A Connection Type | Fitting Side B Pipe Size | Overall Length | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

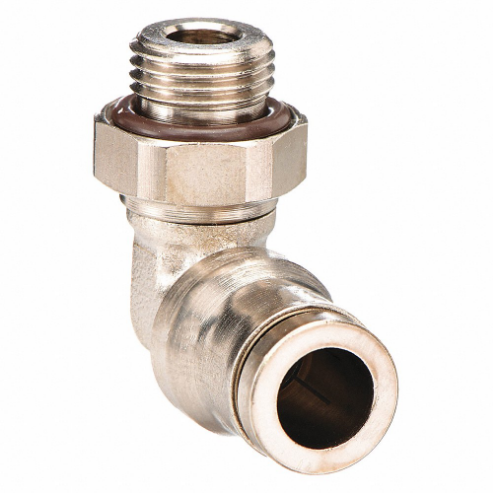

3699 08 13 | 8 mm | -4°F to +302°F | Tube x BSPP | Brass | Elbow Adapter | Push-To-Connect | 1/4" | 21.5 mm | 1 | €26.69 | |
 |
3199 04 13 | 4 mm | -4°F to +175°F | Tube x Male BSPP | Nylon | Elbow Adapter | Push-To-Connect | 1/4" | 14 mm | 10 | €221.90 | |
 |
3109 06 13 | 6 mm | -4°F to +175°F | Tube x Male BSPT | Nylon | Elbow Adapter | Push-To-Connect | 1/4" | 16 mm | 10 | €128.61 | |
|
3109 12 21 | - | -4°F to +175°F | Tube x Male BSPT | Nylon | Elbow Adapter | Push-To-Connect | 1/2" | 25 mm | 10 | €381.14 | |
|
3199 14 17 | - | - | - | Nylon | Elbow Adapter | Push-To-Connect | 3/8" | 35.5 mm | 10 | €333.69 | |
 |

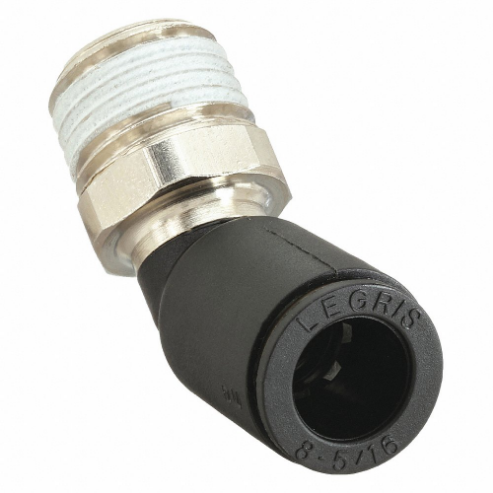

3113 08 13 | - | - | - | Nylon | Elbow Adapter | Push-To-Connect | 1/4" | 33.5 mm | 10 | €133.42 | |
|
3199 12 21 | - | - | - | Nylon | Elbow Adapter | Push-To-Connect | 1/2" | 31 mm | 10 | €341.21 |
