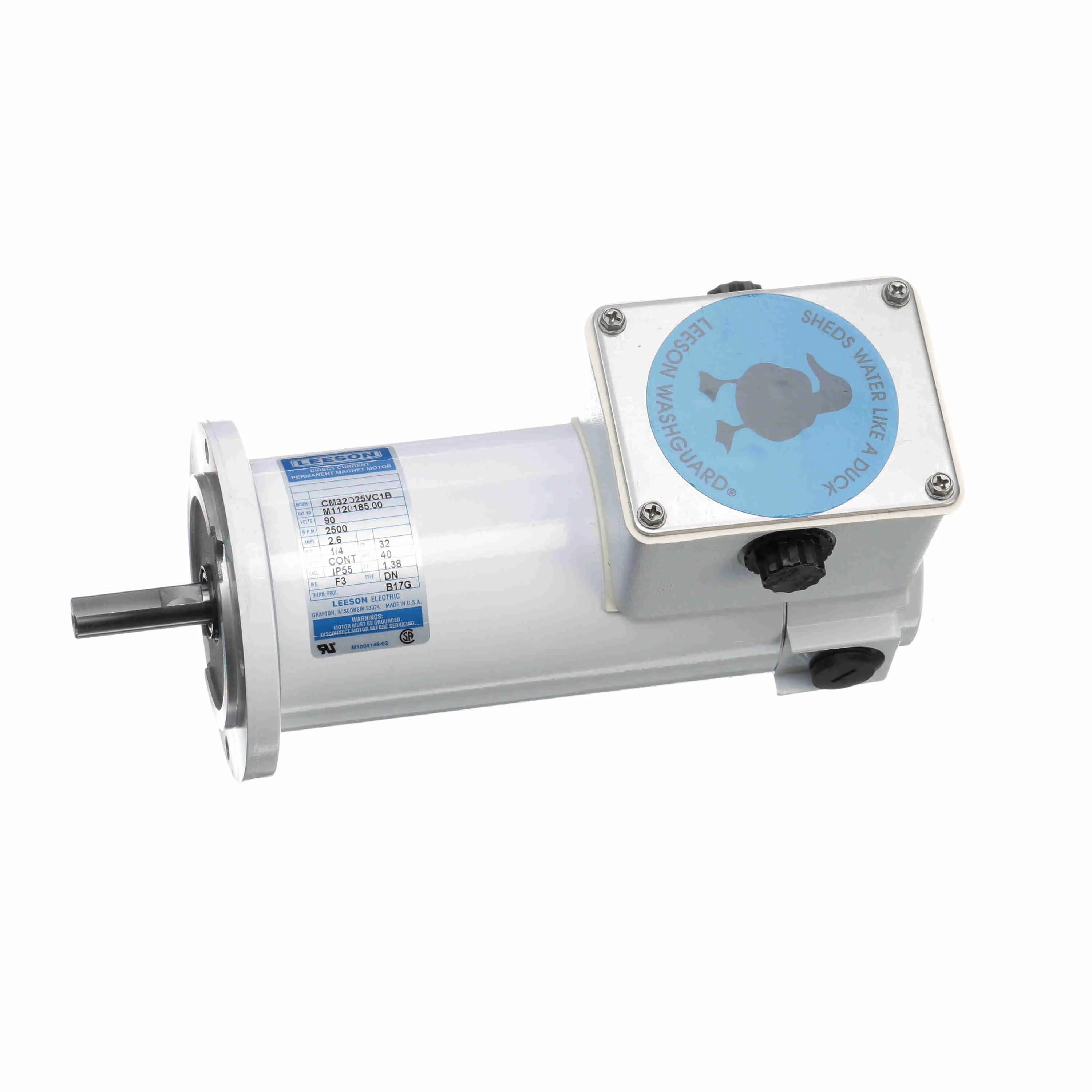

LEESON M1120185.00 CM32D25VC1B Sub-Fractional Motor, 0.25 HP, 90V, 2500 RPM
Get it by Monday, Dec 22
€713.73 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ambient Temp. | 40°C |
| Amps | 2.6A |
| Assembly | M1041143 |
| Color | White |
| Conduit Box Position | F1 |
| Drive End Bearing Size | 6201-13 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 84.4% |
| Enclosure Type | Tenv |
| Explosion Proof | Brake Motors |
| Finish | Epoxy Coated |
| Form Factor | 1.38 |
| Frame | 32 |
| Frame Length | 5.94" |
| Frame Material | Stainless Steel |
| Frame Size | 32 |
| Frame Suffix | Not Available |
| Full Load Amps | 2.6A |
| Full Load Torque | 101 in.-oz. |
| Full Load Torque | 101 oz.-in. |
| Grease Type | Polyrex EM |
| Height | 6.69" |
| Hp | 1/4 hp |
| Inertia | 10.3 oz./sq. in. |
| Insulation Class | Class F |
| Ip Rating | IP55 |
| Kw | 0.19 kW |
| Length | 16 1/2" |
| Lubrication | Polyrex EM |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Mounting Type | C Face |
| Nameplate Rpm | 2500 RPM |
| Opp. Drive End Bearing Size | 6201-13 |
| Opp. Drive End Bearing Type | Ball |
| Outline | M1030970 |
| Output Kw | 0.19 kW |
| Overall Length | 10" |
| Packaging | M1307027.02 |
| Phase | 1 |
| Rotation | Reconn |
| Rotation Type | Reversible |
| Rpm | 2500 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 1.69" |
| Test Card | 01 |
| Thermal Protection | No Protection |
| Torque | 101 oz.-in. |
| Type | Dn |
| Voltage | 90V |
| Winding | MD3227 |
Shipping Info:
| Ship weight (kg) | 5.85 |
| Ship height (cm) | 16.99 |
| Ship length (cm) | 41.91 |
| Ship width (cm) | 19.51 |
| Country of Origin | US |
Product Details:
- Bearing OPE: 6201-13
- Bearing PE: 6201-13
- Eff 100%: 84.4%
- Nameplate: M100414802
- Winding: MD3227
- GROUP: 1 A
- Sub Group: A
- Paint: 305053.01
