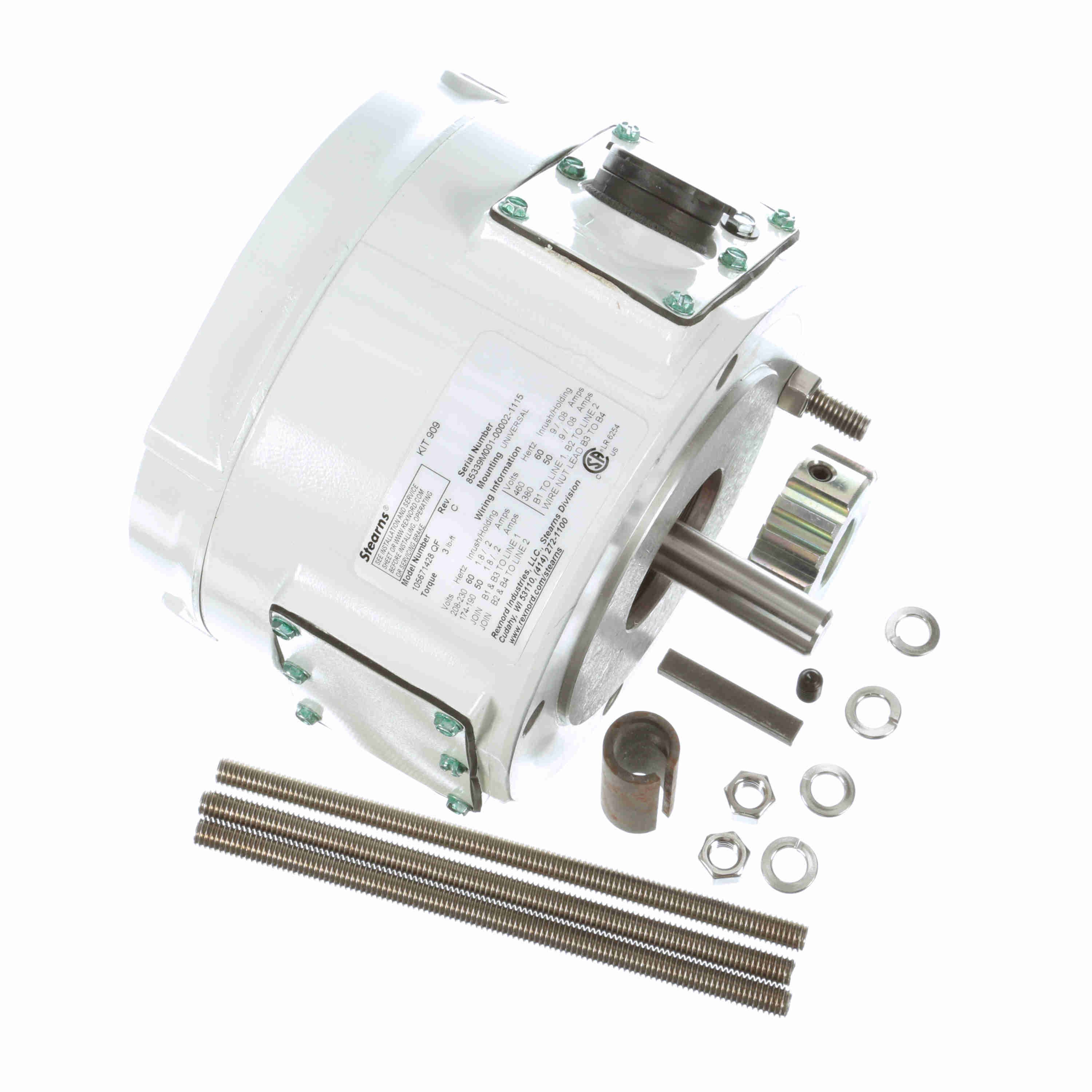

LEESON KIT 909 A909 Washdown Brake, C-Face Coupler Brake, 230VAC, 230/190VAC, Totally Enclosed
Get it by Friday, Aug 14
€1,573.60 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Brake |
| Application | Door Openers, For Rapid Stopping And Holding Power Conveyors, General Machine Drives |
| Automatic Reset | Yes |
| Clutch/brake Type | C Face Coupler Brake |
| Coil Voltage | 230/190V AC |
| Finish | Powder Paint |
| For Use With | Single Phase Motors Or When Wired Per Instructions |
| Frequency | 50/60 Hz |
| Function | Automatic Reset |
| Holding Amps | 0.2A |
| Housing Material Finish | Powder Paint |
| Hp @ Speed | 1 hp @ 1725 RPM, 2 hp @ 3450 RPM |
| Included | Vertical Mounting Hardware |
| Inrush Amps | 1.8A |
| Keyway Depth | 3/32" |
| Keyway Width | 3/16" |
| Length | 7" |
| Lever Release | Manual |
| Lever Type | Manual Release |
| Max. Ambient Temp. | 40°C |
| Max. Bore | 7/8" |
| Max. Hp @ 1725 Rpm | 1 hp |
| Max. Hp @ 3450 Rpm | 2 hp |
| Max. Speed | 3600 RPM |
| Mfr. Series | 56700 |
| Mounting Location | Nema C Face Motor |
| Mounting Orientation | Horizontal, Vertical |
| Outside Dia. | 6 22/25" , 6.88" |
| Overall Length | 7" |
| Overall Width | 6 22/25" |
| Phase | 1 |
| Shaft Dia. | 5/8" |
| Static Torque | 3 lbs.-ft. |
| Type | C-Face Coupler Brake |
| Width | 6 22/25" |
Shipping Info:
| Ship weight (kg) | 5.4 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| HS code | 8503005000 |
| Country of Origin | US |
Product Variants
| Product | Model | Static Torque | Max. Hp @ 1725 Rpm | Max. Hp @ 3450 Rpm | Type | Coil Voltage | Frequency | Mounting Orientation | Shaft Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

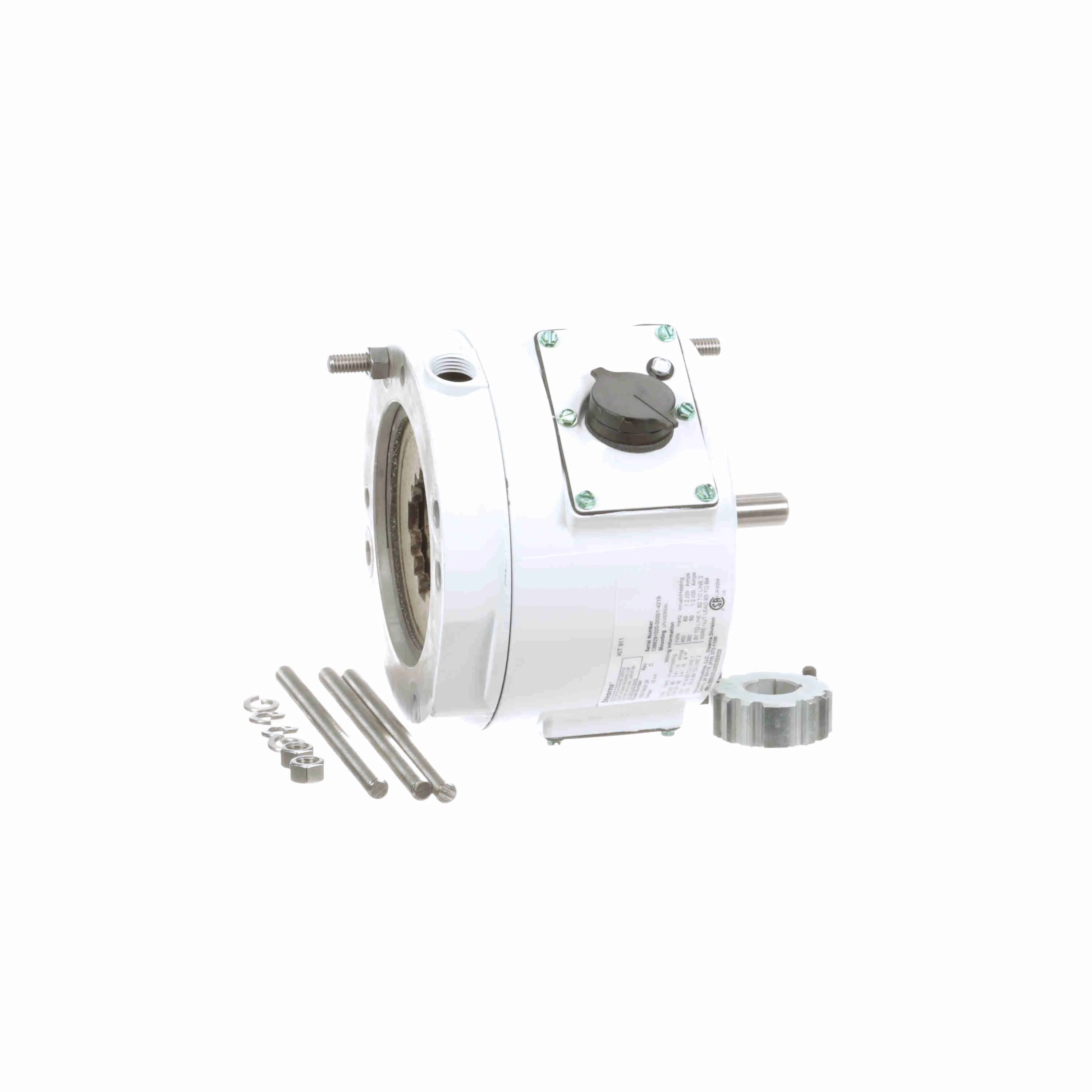

KIT 911 | 10 lbs.-ft. | 3 hp | 5 hp | C-Face Coupler Brake | 230/190V AC | 50/60 Hz | Horizontal, Vertical | 5/8" | €2,039.99 | |
 |

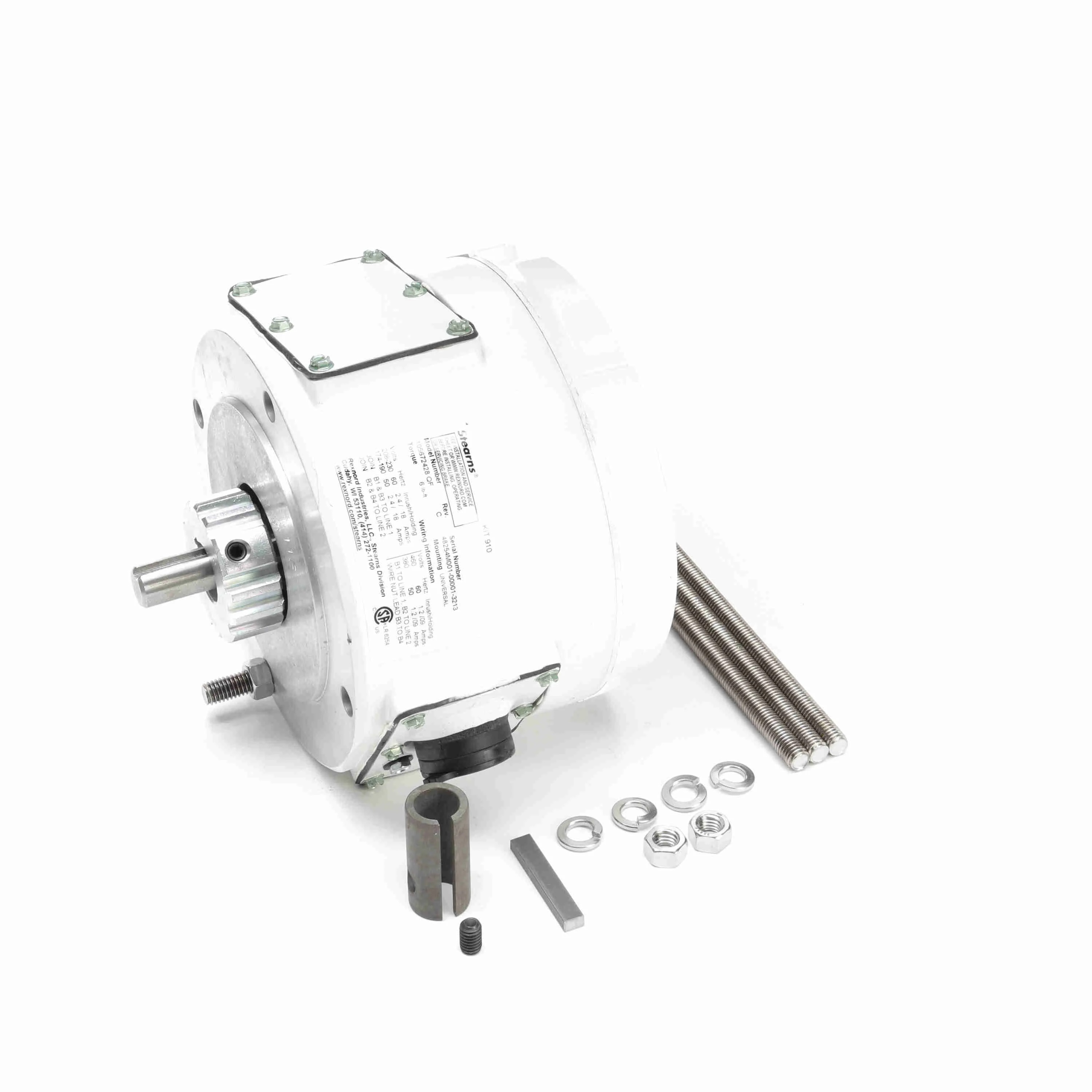

KIT 910 | 6 lbs.-ft. | 2 hp | 3 hp | C-Face Coupler Brake | 230/190V AC | 50/60 Hz | Horizontal, Vertical | 5/8" | €1,932.68 |
