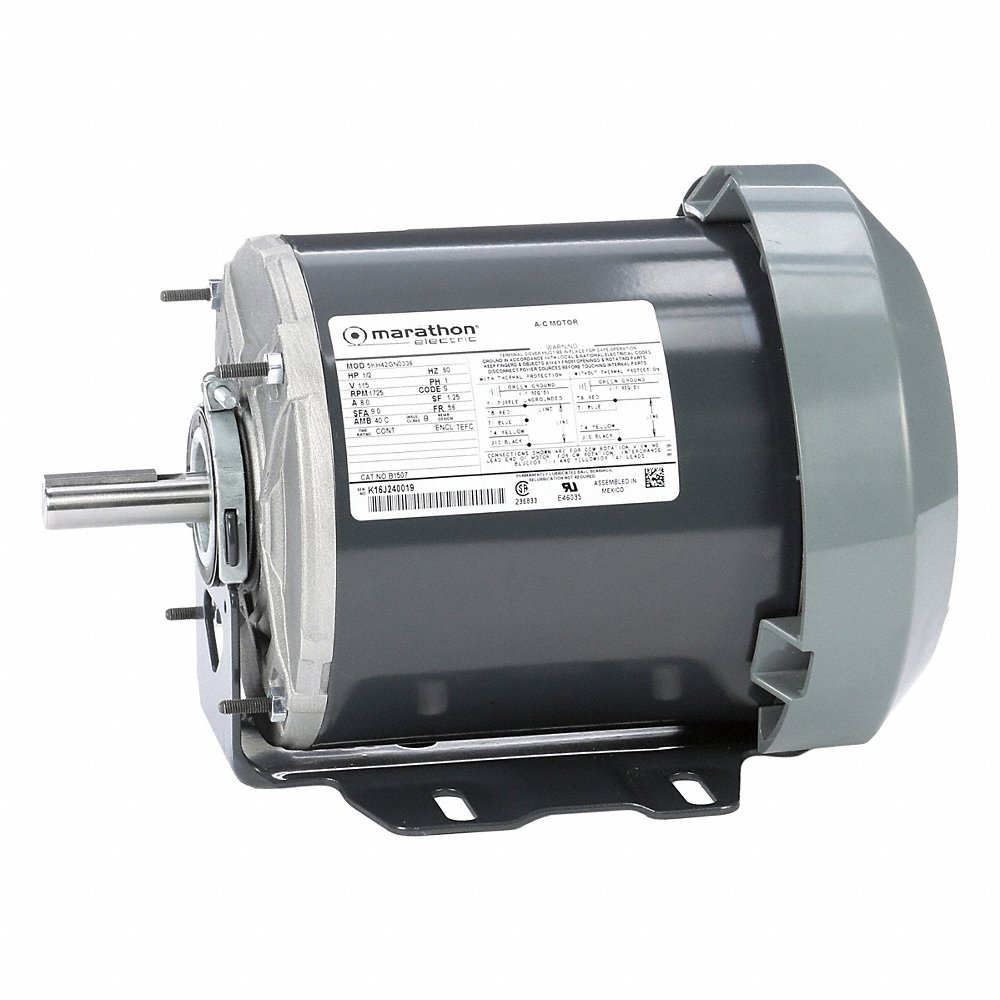

LEESON 5KH42GN0336 B1507 Fan and Blower Motor, 0.50 HP, 1 Phase, 60 Hz, 115V, 1800 RPM
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€543.76 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | HVAC Motor |
| Ambient (c) | 40°C |
| Ambient Temp. | 40°C |
| Duty Cycle | Continuous |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Frame | 56 |
| Frequency | 60 Hz |
| Full Load Amps | 8A |
| Hp | 1/2 hp |
| Insulation Class | Class B |
| Max. Ambient Temp. | 40°C |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rigid Base |
| Motor Shaft Rotation | Selective CCW |
| Motor Thermal Protection | No |
| Motor Type | Split Phase |
| Mounting Type | Resilient Base |
| Nameplate Rpm | 1725 RPM |
| Number Of Speeds | 1 |
| Phase | 1 |
| Service Factor | 1.25 |
| Shaft Dia. | 0.63" |
| Shaft Length | 1 22/25" |
| Shaft Orientation | Horizontal/Vertical |
| Thermal Protection | None |
| Voltage | 115V AC |
Shipping Info:
| Ship weight (kg) | 9.45 |
| Ship height (cm) | 24.13 |
| Ship length (cm) | 38.46 |
| Ship width (cm) | 25.88 |
| HS code | 8501404040 |
| Country of Origin | MX |
Product Details:
- Starting Type: Switch and Mech
- KVA Code: S
- Drive End Bearing: BALL
- Opposite End Bearing: BALL
- Drive End Bearing Size: 6203
- Opposite End Bearing Size: 6203
Product Variants
| Product | Model | Hp | Thermal Protection | Voltage | Motor Mounting Type | Motor Mounting Position | Frame | Phase | Shaft Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

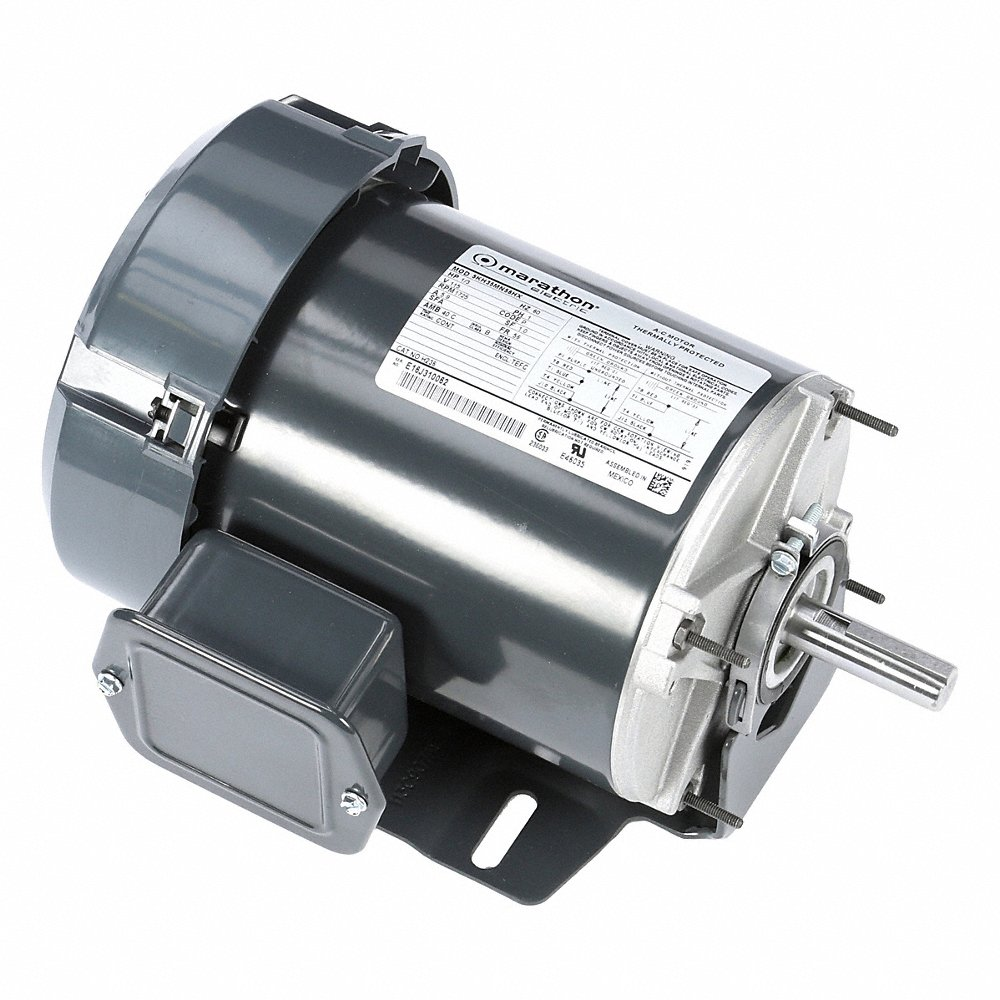

5KH35MN56X | 1/3 hp | Automatic | 115V AC | Rigid Base | All Angle | 56 | 1 | 1 22/25" | €377.81 |
