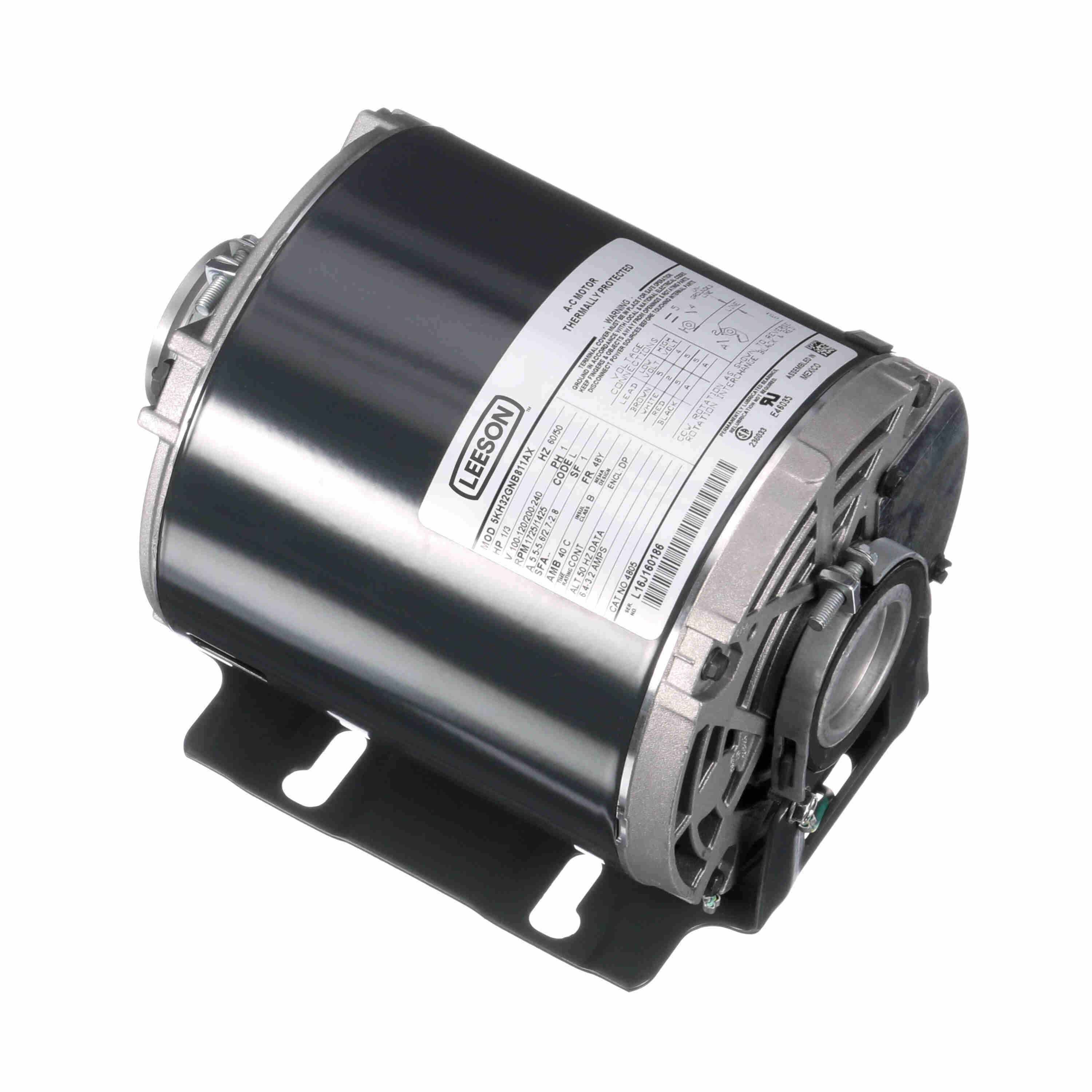

LEESON 5KH32GNB811X 4805 / 5KH32GNB811AX Carbonator Pump Motor, 0.33 HP, 1 Phase, 60 Hz, 100-120/200-240V, 1800 RPM
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€289.58 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pump Motor |
| Ambient (c) | 40 |
| Bearing Type | Ball |
| Body Dia. | 5 3/5" |
| Duty Cycle | Continuous |
| Frame | 48Y |
| Frame Material | Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 5.5-5.6/2.7-2.8A |
| Height | 5 13/16" |
| Hp | 1/3 hp |
| Hz | 60 Hz |
| Insulation Class | Class B |
| Length Less Shaft | 7 1/2" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | Split-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Cradle Base |
| Motor Service Factor | 1 |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Carbonator Pump |
| Motor Thermal Protection | Automatic |
| Motor Type | Split Phase |
| Mounting | Rigid Base |
| Mounting Type | Resilient Base |
| Nameplate Rpm | 1725 RPM |
| Nominal Efficiency | 62% |
| Number Of Speeds | 1 |
| Orientation | Horizontal, Vertical |
| Overall Height | 5.812" |
| Overall Length | 7 11/16" |
| Phase | 1 |
| Rotation | Counter Clockwise |
| Rpm | 1725/1425 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1/4" |
| Thermal Protection | Automatic |
| Usable @ 200v | Yes |
| Usable @ 208v | Yes |
| Voltage | 115/230V AC |
| Weight | 14 lbs. |
Shipping Info:
| Ship weight (kg) | 6.3 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 32.08 |
| Ship width (cm) | 17.63 |
| HS code | 8501404040 |
| Country of Origin | MX |
Product Details:
- Starting Type: Switch and Mech
- KVA Code: L
- Drive End Bearing: BALL
- Opposite End Bearing: BALL
- Drive End Bearing Size: 6203
- Opposite End Bearing Size: 6203
Product Variants
| Product | Model | Voltage | Hp | Shaft Dia. | Service Factor | Motor Thermal Protection | Full Load Amps | Rotation | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KH37PNA479X | 115/230V AC | 3/4 hp | 5/8" | 1 | Automatic | 10.4/5.2A | Counter Clockwise | 9 1/8" | €1,051.00 | |
 |
5KH32GNB812X | 230V AC | 1/3 hp | 5/8" | 1 | Automatic | 2.7A | Clockwise/Counter Clockwise | 7 11/16" | €308.67 | |
 |
5KH32GNB813X | 208-240V AC | 1/4 hp | 5/8" | 1 | Auto | 2.3-2.4A | CW/CCW | 7 11/16" | €293.24 | |
 |
5KH32DN5587X | 115V AC | 1/4 hp | 1/2" | 1 | Automatic | 5A | Clockwise/Counter Clockwise | 7 11/16" | €280.63 | |
 |
5KH32FN5586X | 115V AC | 1/3 hp | 1/2" | 1.15 | Automatic | 5.6A | Clockwise/Counter Clockwise | 7 11/16" | €288.03 | |
 |
5KH33GNA444X | 115/230V AC | 1/3 hp | 5/8" | 1 | Automatic | 2.7-2.8/5.5-5.6A | Clockwise/Counter Clockwise | 7 15/16" | €324.74 | RFQ
|
 |
5KH36MNA445X | 115/230V AC | 1/2 hp | 5/8" | 1 | Automatic | 3.4-3.6/7.1-7.2A | Clockwise/Counter Clockwise | 8 3/4" | €375.47 |
