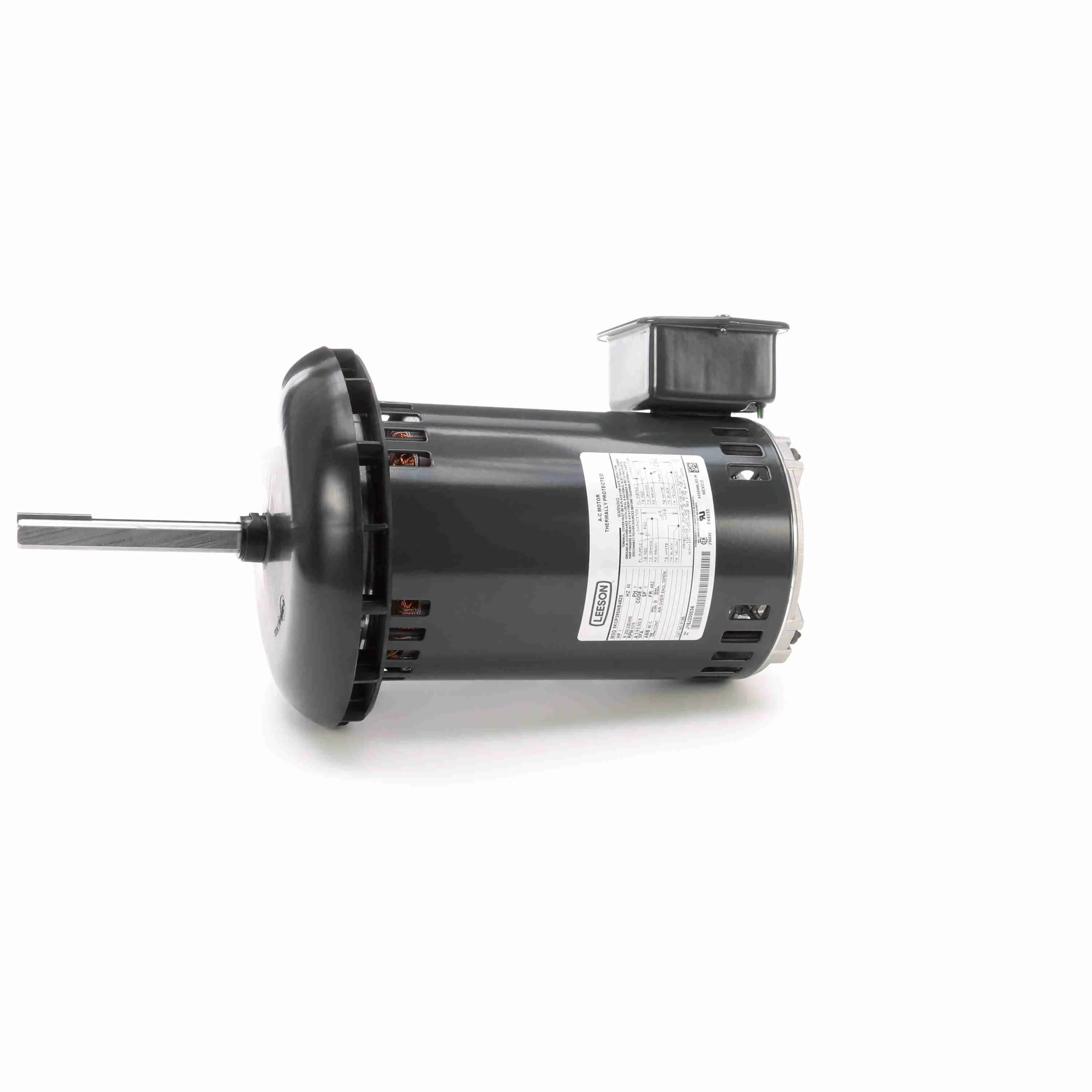

LEESON 5KCP39SNB482S P195 Condenser Fan Motor, 1 HP, 1 Ph, 60 Hz, 200-230/460V, 1200 RPM
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€624.39 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Condenser Fan Motor |
| Ambient Temp. | 60°C |
| Bearing Protection | Rain Shields |
| Bearing Type | Ball |
| Body Dia. | 5 5/8" |
| Bolt Circle Dia. | 5 1/8" |
| Capacitor Required | 4UHA7 |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 Only |
| Dia. | 5 5/8" |
| Diameter | 5 5/8" |
| Duty Cycle | Continuous |
| Efficiency | 69% |
| Enclosure Type | Open |
| Extended Thru-bolts | No |
| Features | Shaft Slinger, Shaft With Flat |
| Frame | 48Z |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Hp | 1 hp |
| Insulation Class | Class B |
| Lead Length | 8" |
| Length | 15 7/8" |
| Length Less Shaft | 12 3/8" |
| Max. Ambient Temp. | 60°C |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Open Air Over |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Band |
| Motor Mounting Type | Face |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed With Single Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Condenser Fan |
| Motor Thermal Protection | Automatic |
| Motor Type | Permanent Split Capacitor |
| Mounting Stud Size | #8-32 |
| Mounting Type | Band |
| Nameplate Rpm | 1075 RPM |
| No. Of Studs | 8 |
| Nominal Efficiency | 67% |
| Number Of Speeds | 1 |
| Number Of Studs | 8 |
| Output Watts | 750 W |
| Overall Length | 16 1/16" |
| Phase | 1 |
| Power | 750 W |
| Removable Base | No |
| Rpm Range | 1001-1100 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 3 11/16" |
| Shaft Type | Keyed With Single Flat |
| Stud Quantity | 8a32" |
| Stud Size | #8-32 |
| Thermal Protection | Automatic |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V AC |
| Weight | 21 lbs. |
Shipping Info:
| Ship weight (kg) | 9.45 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 45.72 |
| Ship width (cm) | 25.4 |
| HS code | 8501406040 |
| Country of Origin | MX |
Product Details:
- No. of Speeds : 1
Product Variants
| Product | Model | Voltage | Hp | Motor Enclosure Design | Motor Mounting Type | Nameplate Rpm | Motor Mounting Position | Max. Ambient Temp. | Frame | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KCP39SNB481S | 200-230/460V AC | 3/4 hp | Open Dripproof | C Face Footless | 1075 RPM | All Angle | 60°C | 48Z | €118.24 |
