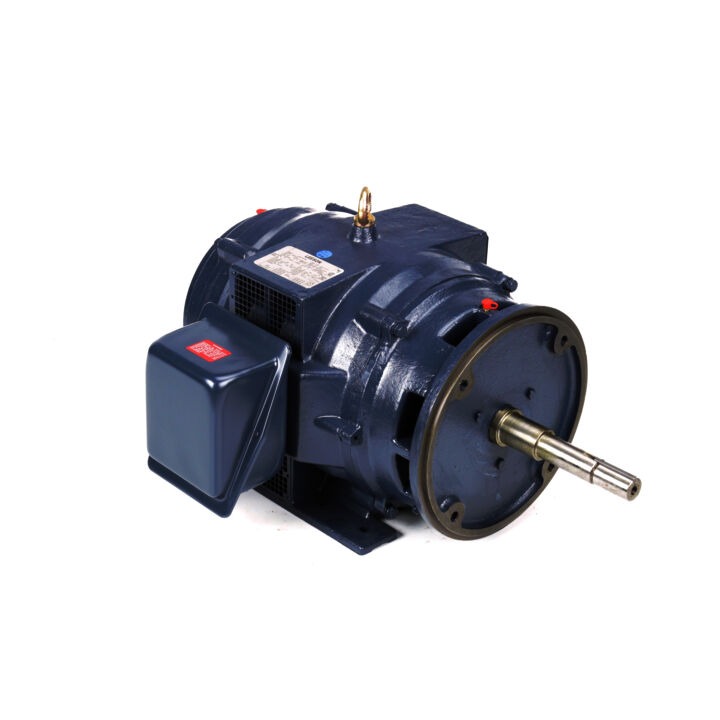

LEESON 199990.00 C256T34DK9A Pump Motor, 25HP, 3542 RPM, 3Phase
Get it by Monday, Aug 24
€2,735.54 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pump Motor |
| Cc No. | CC005A |
| Composition | Cast Iron |
| Eff 100% | 91 |
| Efficiency | 91.7% |
| Electrical Phase | 3 |
| Enclosure | Drip Proof |
| Enclosure Type | Open Dripproof |
| Family Series | Leeson Motors |
| Fl Amps | 55A |
| Frequency | 60 Hz |
| Full Load Amps | 27/27.6/54/55A |
| Hazardous Loc | None |
| Insulation Class | F |
| Iris | Paint |
| Kw | 14.9 kW |
| Load Type | Inverter Type |
| Max. Amb | 40 |
| Motor Wt. | 359 lbs. |
| Mounting Type | C Face |
| Nameplate | 93408-L-N-ABDFH-C-D |
| Nominal Voltage | 240/480V AC |
| Phase | 3 |
| S. F Amps | 63.5A |
| Service Factor | 1.15 |
| Speed | 3542 RPM , 3600 RPM |
| Type | General Purpose |
| Voltage | 230V |
| Voltage Ac | 230/460V AC |
Shipping Info:
| Ship weight (kg) | 161.55 |
| Ship height (cm) | 101.6 |
| Ship length (cm) | 134.62 |
| Ship width (cm) | 111.76 |
| Country of Origin | CN |
