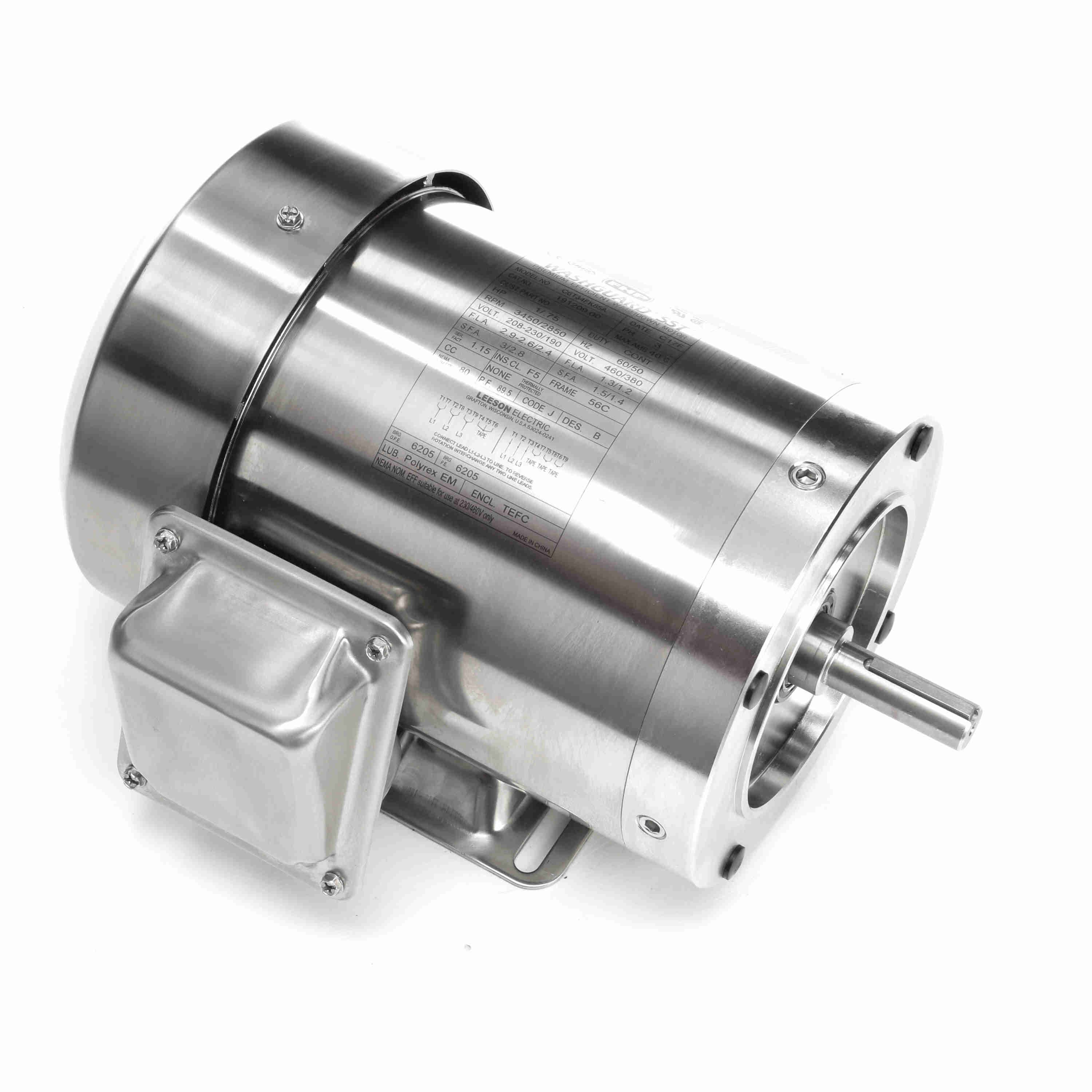

LEESON 191209.00 C6T34FK85A General Purpose Motor, 1/0.75 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 3600 RPM
Get it by Tuesday, May 19
€1,174.23 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Amps | 2.6/1.3A |
| Bearing Type | Ball |
| Body Dia. | 6.7" |
| Bolt Circle Dia. | 5 7/8" |
| Design Code | B |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 80% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | Tefc |
| Endshield Material | Stainless Steel |
| Frame | 56HC |
| Frame Length | 6" |
| Frame Material | Stainless Steel |
| Frame Type | 56HC |
| Frequency | 60 Hz |
| Full Load Amps | 2.9-2.6/1.3A |
| Height | 9.65" |
| Hp | 1 hp |
| Hz | 60 Hz |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Ip Code | IP55 |
| Kva Code | J |
| Kw | 0.75 kW |
| Length | 12 17/25" |
| Max. Ambient Temp. | 40°C |
| Max. Rpm | 3450 RPM |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Frame Material | Stainless Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Orientation | Horizontal |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | NEMA 56 |
| Motor Shaft Rotation | CW/CCW |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3450 RPM |
| Nema Design | B |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 80% |
| Opp. Drive End Bearing Size | 6205 |
| Opp. Drive End Bearing Type | Ball |
| Overall Length | 13 3/4" |
| Phase | 3 |
| Power Factor | 89.5 |
| Product Datasheet | leeson-191209-00.pdf |
| Product Type | Washdown Motor |
| Resistance Main | 3.73 ohms |
| Rpm | 3400-3600 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 22/25" |
| Shaft Type | NEMA 56 |
| Starting Method | Across The Line |
| Thermal Protection | No Protection |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V |
| Width | 11" |
Shipping Info:
| Ship weight (kg) | 18.68 |
| Ship height (cm) | 24.51 |
| Ship length (cm) | 32.21 |
| Ship width (cm) | 27.94 |
| Country of Origin | CN |
Documentation:
Product Variants
| Product | Model | Voltage | Phase | Hp | Frequency | Full Load Amps | Mounting Type | Nameplate Rpm | Motor Enclosure Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
191417.00 | 208-230/460V | 3 | 1 hp | 60 Hz | 3.8/1.9A | Rigid Base | 1140 RPM | Totally Enclosed Fan Cooled | €2,802.14 | |
 |
191421.00 | 208-230/460V | 3 | 1 hp | 60 Hz | 3.8/1.9A | Round | 1150 RPM | Totally Enclosed Fan Cooled | €2,642.30 | |
 |
191475.00 | 115-230V | 1 | 1/2 hp | 60 Hz | 8.2/4.1A | Face/Base | 1725 RPM | Totally Enclosed Fan Cooled | €2,176.32 | |
 |
191477.00 | 115-230V | 1 | 3/4 hp | 60 Hz | 9.8/4.9A | Face/Base | 1725 RPM | Totally Enclosed Fan Cooled | €2,294.80 | |
 |
191478.00 | 115-230V | 1 | 1 hp | 60 Hz | 12.4/6.2A | Face/Base | 3600 RPM | Totally Enclosed Fan Cooled | €1,161.93 | |
 |
191479.00 | 115-230V | 1 | 1 hp | 60 Hz | 13.6/6.8A | Face/Base | 1725 RPM | Totally Enclosed Fan Cooled | €1,255.51 | |
 |
191480.00 | 115-230V | 1 | 1 1/2 hp | 60 Hz | 16.4/8.2-8.5A | Face/Base | 3450 RPM | Totally Enclosed Fan Cooled | €2,574.80 |
