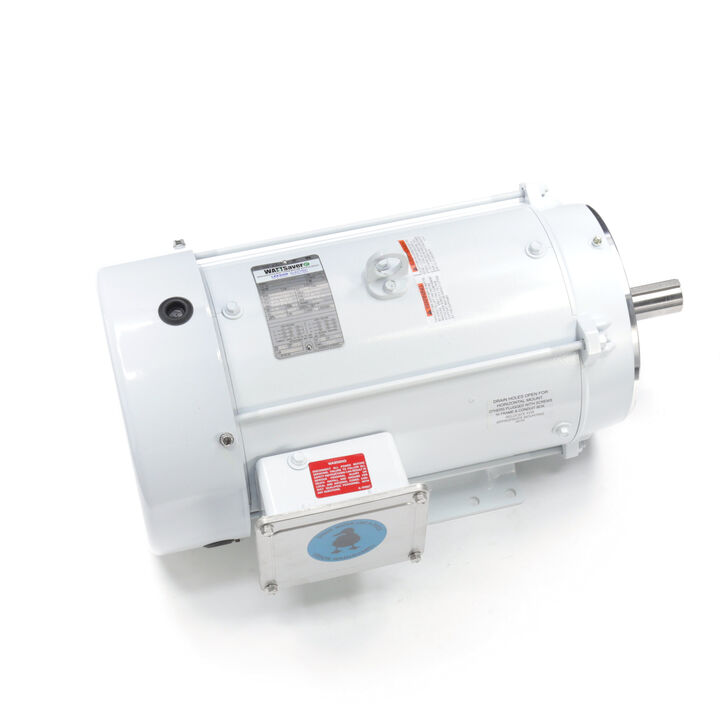

LEESON 140823.00 C215T34WK9A Washdown Motor 50-60 Hertz | AJ2TAW 215TTWW16003

LEESON 140823.00 C215T34WK9A General Purpose Motor, 10/7.50 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 3600 RPM

Item: AJ2TAWModel: 140823.00Cross Ref: 48ZG13 / C215T34WK9A
Check Availability
In Stock

Get it by Tuesday, Dec 23

€4,619.46
10.00% off
€4,157.51 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Washdown Motor
Ambient Temp. 104°F
Application Washdown
Bearing Type Ball
Body Dia. 3"
Cc Number CC005A
Code H
Color White
Conduit Box Location Exterior
Drive End Bearing Size 309
Drive End Bearing Type Ball
Duty Cycle Continuous
Efficiency 91.7%
Enclosure Type Tefc
Finish Epoxy Coated
Frame 215TC
Frame Material Rolled Steel
Frame Type 215TC
Frequency 50/60 Hz
Frequency 60 Hz
Full Load Amps 23.6/11.8A
Hp 10 hp
Hz 50/60 Hz
Ins. Class Class F
Insulation Class Class F
Kw 7.5 kW
Length Less Shaft 18 3/4"
Manufacturers Warranty Length 1 yr.
Max. Ambient Temp. 40°C
Motor Application Washdown
Motor Bearings Ball
Motor Design 3-Phase
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Frame Material Steel
Motor Mounting Position Horizontal
Motor Mounting Type Rigid Base
Motor Service Factor 1.15
Motor Shaft Rotation Counter Clockwise Shaft End
Motor Type Three Phase
Mounting Type Rigid Base
Nameplate Rpm 3535 RPM
Nema Design B
No. Of Poles 2
No. Of Speeds 1
Nominal Efficiency 91.7%
Opp. Drive End Bearing Size 206
Opp. Drive End Bearing Type Ball
Overall Length 21 13/16"
Packaging F
Phase 3
Power 7.5 kW
Power Factor 87
Product Type Washdown Brake Motor
Removable Base No
Rotation Reversible
Rpm 3400-3600 RPM
Service Factor 1.15
Shaft Dia. 1 3/8"
Shaft Length 3.38"
Standards Bissc, Ce, Csa, Ul
Thermal Protection None
Type TF
Usable @ 200v No
Usable @ 208v No
Voltage 230/460V
Weight 164 lbs.

Shipping Info:

Ship weight (kg) 73.8
Ship height (cm)35.56
Ship length (cm)57.15
Ship width (cm)42.7
Country of OriginMX

Product Details:

    • Bearing OPE: 206
    • CC Number: CC005A
    • Bearing PE: 309
    • Winding: K215295
    • GROUP: 6
    • Paint: WHITE - LEESON (EPOXY)
    • S. F Amps: 26 / 13
    • Eff 100%: 91.7 / 90.2

Product Variants

ProductModelVoltageHpFinishNameplate RpmFrameFull Load AmpsMotor Mounting TypeAmbient Temp.Price
LEESON 112429.00 C6T17WK1J Washdown Motor | AJ2QHG C6T17WK1J 112429.00208-230/460V1/2 hpEpoxy Coated1800 RPM56C1.9-2/1A-40°C€669.17
LEESON 112430.00 C6T17WK2J Washdown Motor | AJ2QHH C6T17WK2J 112430.00208-230/460V3/4 hpEpoxy Coated1800 RPM56C2.8-2.7/1.4A-40°C€1,690.22
LEESON 112547.00 Washdown Motor, 1/3 hp, 3 Phase, 1725 Rpm | AJ2QHW C6T17WK9J / 60PV26 112547.00208-230/460V33/100 hpUnfinished1725 RPM56C1.5-1.7/0.85AFace, Base104°F€723.20
LEESON 113586.00 C6T17VK2G Washdown Motor | AJ2QKG 48ZF92 / C6T17VK2G 113586.00208-230/460V1/2 hpEpoxy Coated1725 RPM56C1.8AFace, Base104°F€1,045.80
LEESON 113587.00 C6T17VK1H Washdown Motor | AJ2QKH 48ZF95 / C6T17VK1H 113587.00208-230/460V3/4 hpEpoxy Coated1725 RPM56C1.2AFace, Base104°F€772.43
LEESON 113590.00 C6T34VK4H Washdown Motor | AJ2QKL 48ZF97 / C6T34VK4H 113590.00230/460V1 hpEpoxy Coated3450 RPM56C1.3AFace, Base104°F€1,047.84
LEESON 113591.00 C6T34VK5H Washdown Motor | AJ2QKM 48ZG02 / C6T34VK5H 113591.00230/460V1 1/2 hpEpoxy Coated3450 RPM-1.9ARigid Base104°F€1,342.84
